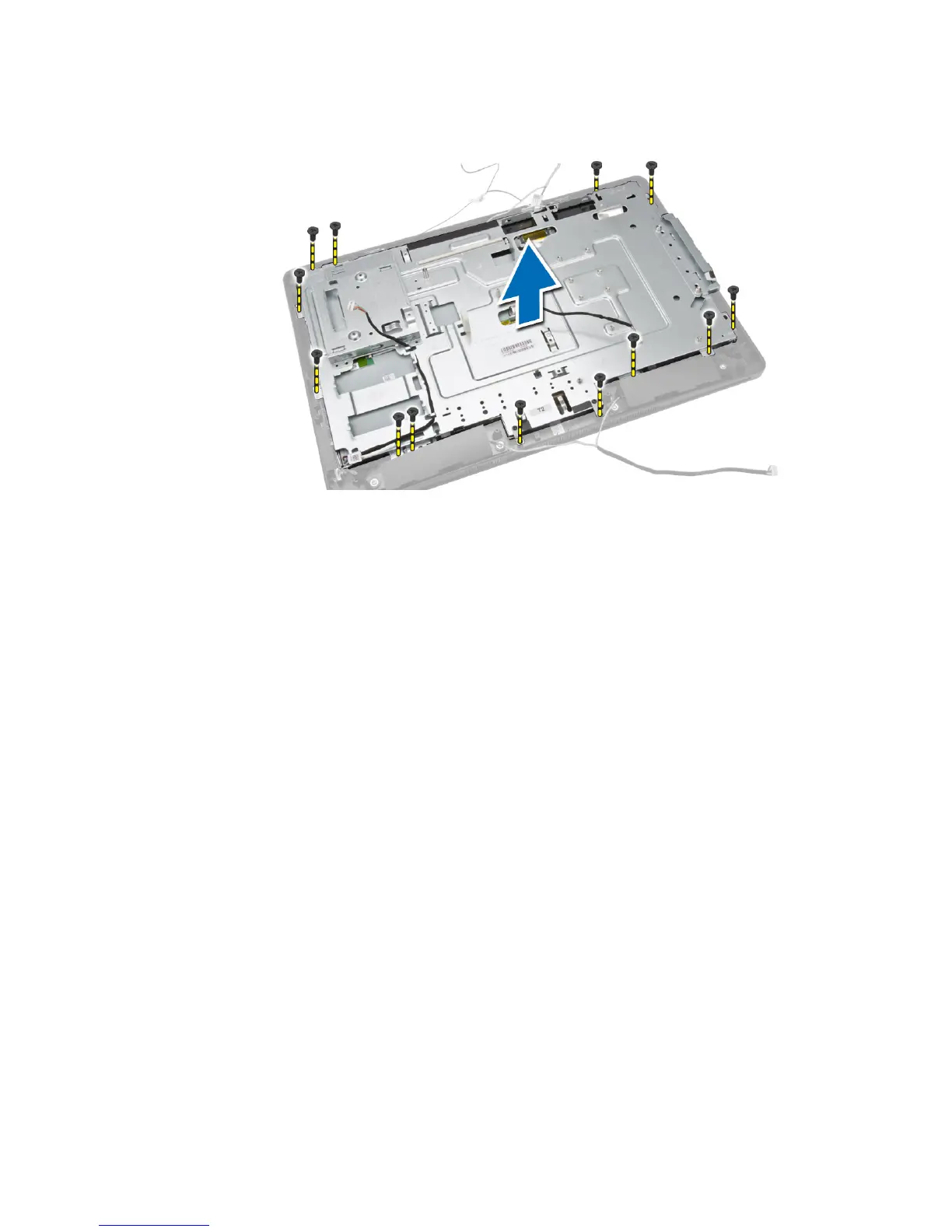

4. Remove the screws that secure the display bracket to the computer. Lift and remove the display
bracket from the computer.
Installing the Display Bracket
1. Align the display bracket on the computer.
2. Tighten the screws to secure the display bracket to the computer.
3. Align the LVDS, camera, convertor-board cables through their tabs on the display bracket.
4. Install:
a. system board
b. convertor board
c. WLAN card
d. system fan
e. heatsink
f. speakers
g. system-board shield
h. VESA bracket
i. memory
j. hard drive
k. optical drive
l. back cover
m. stand
5. Follow the procedures in After Working Inside Your Computer.
28
