Dell Vostro 3015 - Page 9

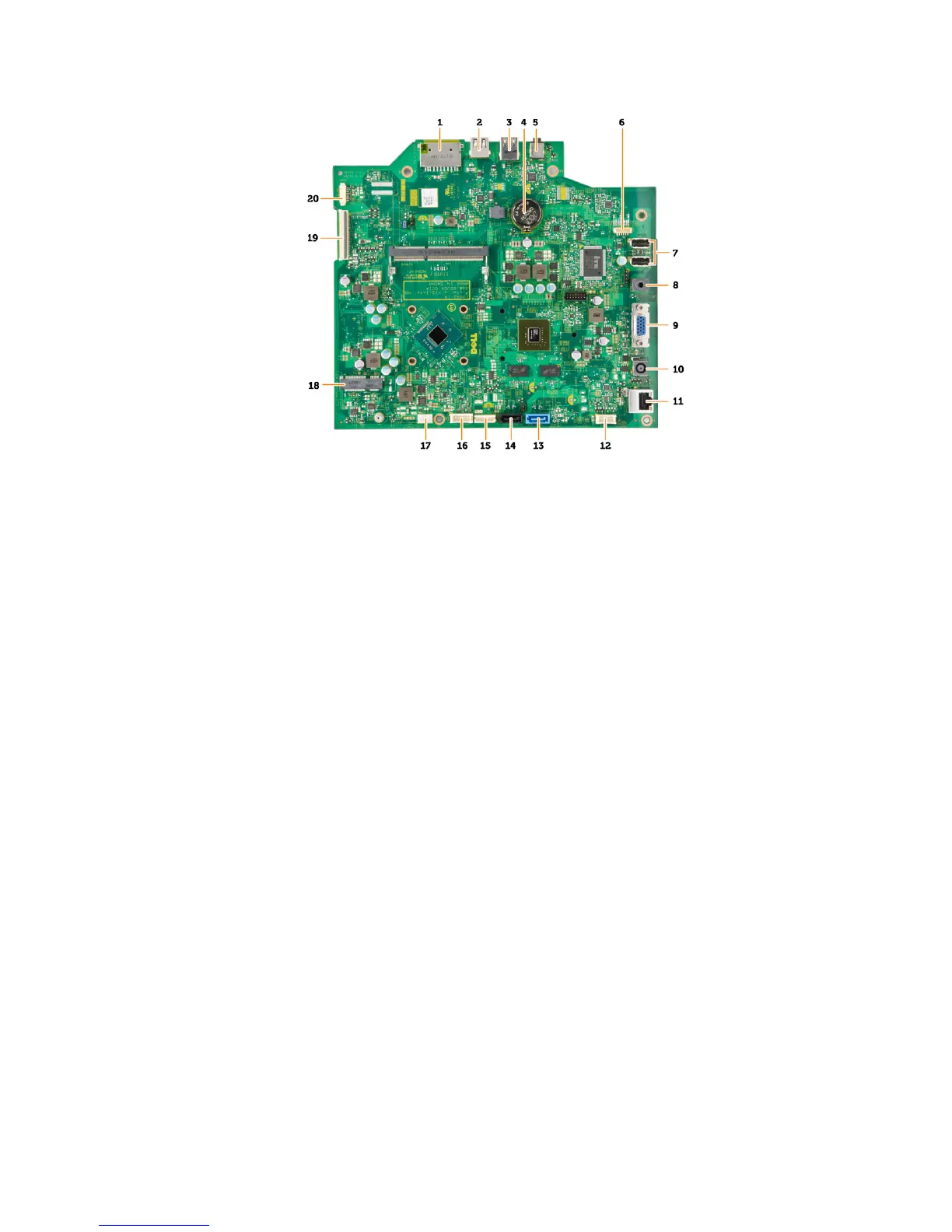

1. Memory-card reader
2. USB 2.0 connector
3. USB 3.0 connector
4. Coin-cell battery
5. Audio connector
6. Speaker connector
7. USB 2.0 connectors
8. line-out connector
9. VGA connector
10. Power connector
11. Network connector
12. Power-switch connector
13. Hard-drive connector
14. Optical-drive connector
15. Hard-drive/Optical-drive power connector
16. Convertor board connector
17. System-fan connector
18. WLAN card connector
19. LVDS connector
20. Camera connector
9
