M.2
SATA SSD
Removing M.2
SATA SSD
1 Follow the procedure in Before working inside your computer.
2 Remove the:
a cover
3 To remove the M.2
SATA SSD:

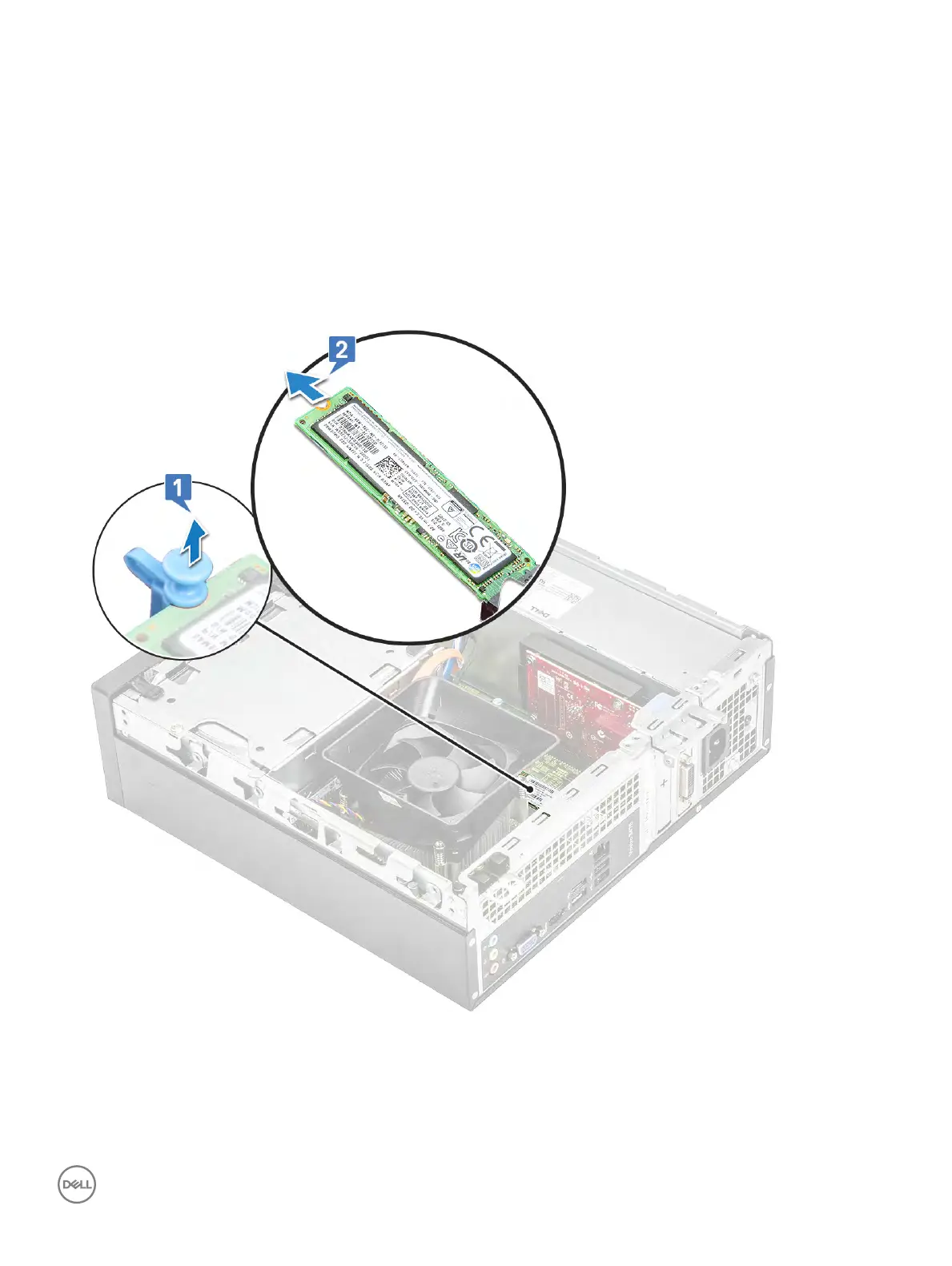

a Pull the blue tab that secures the M.2 SATA SSD to the system board [1].
b Slide out the M.2 SATA SSD from the connector on the system board [2].
Installing M.2
SATA SSD
1 Insert the M.2 SATA SSD to the connector [1].
2 Press the blue tab to secure the M.2
SATA SSD [2].
Removing and installing components 41
