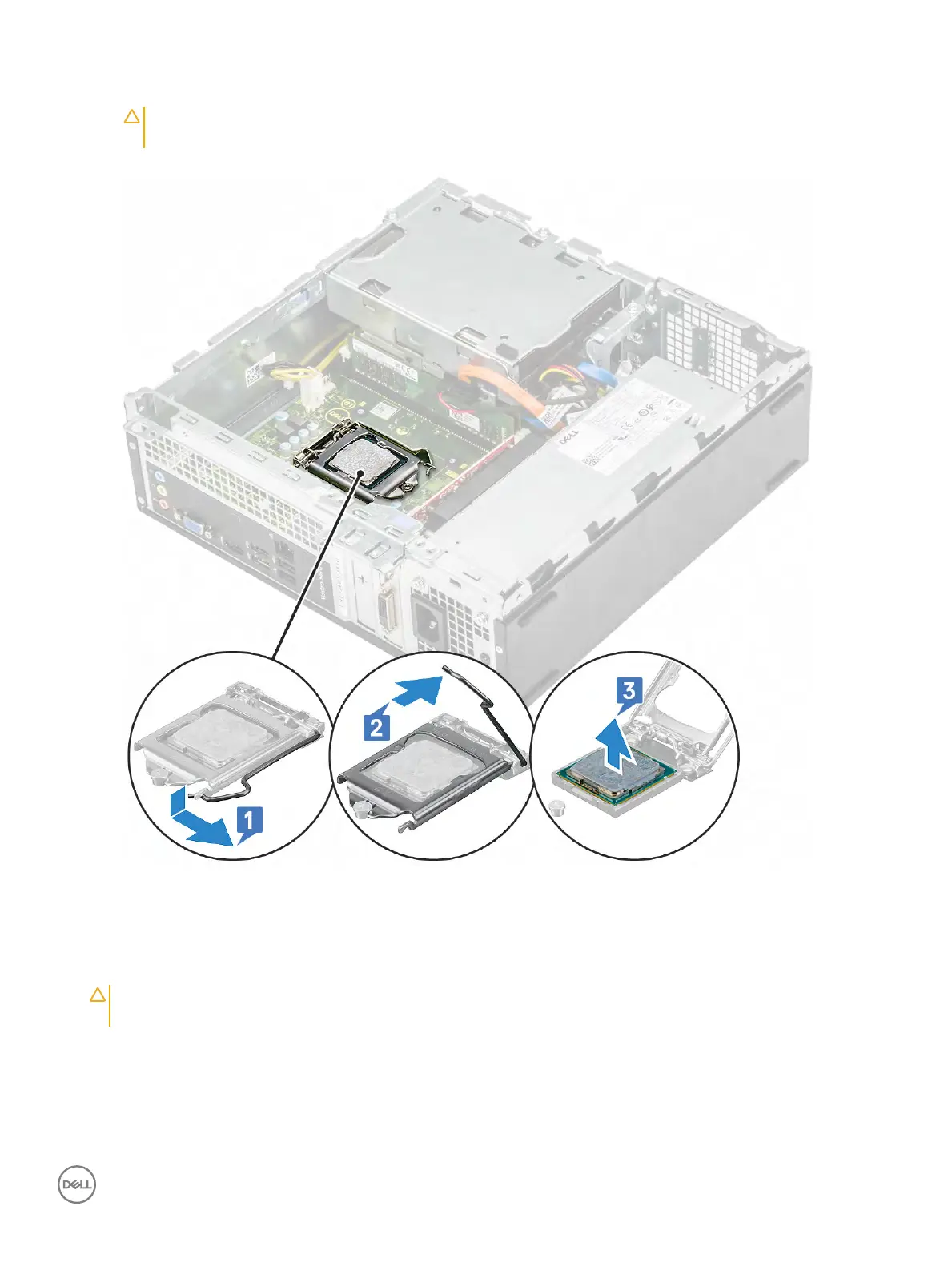

3 To remove the processor:
a Press the release lever down and then move it outward to release it from the retention hook [1].
CAUTION
: The processor socket pins are fragile and can be permanently damaged. Be careful not to bend the pins in
the processor socket when removing the processor out of the socket.
b Lift the processor cover [2], remove the processor from the socket and place it in an antistatic bag [3].
Installing the processor
1 Insert the processor in the processor socket. Ensure the processor is properly seated [1].
CAUTION: Do not use force to seat the processor. When the processor is positioned correctly, it engages easily into the
sock
et.
2 Lower the processor cover [2].
3 Press the release lever down and then move it inward to secure it with the retention hook [3].
