Dell Vostro 3470 - Page 45

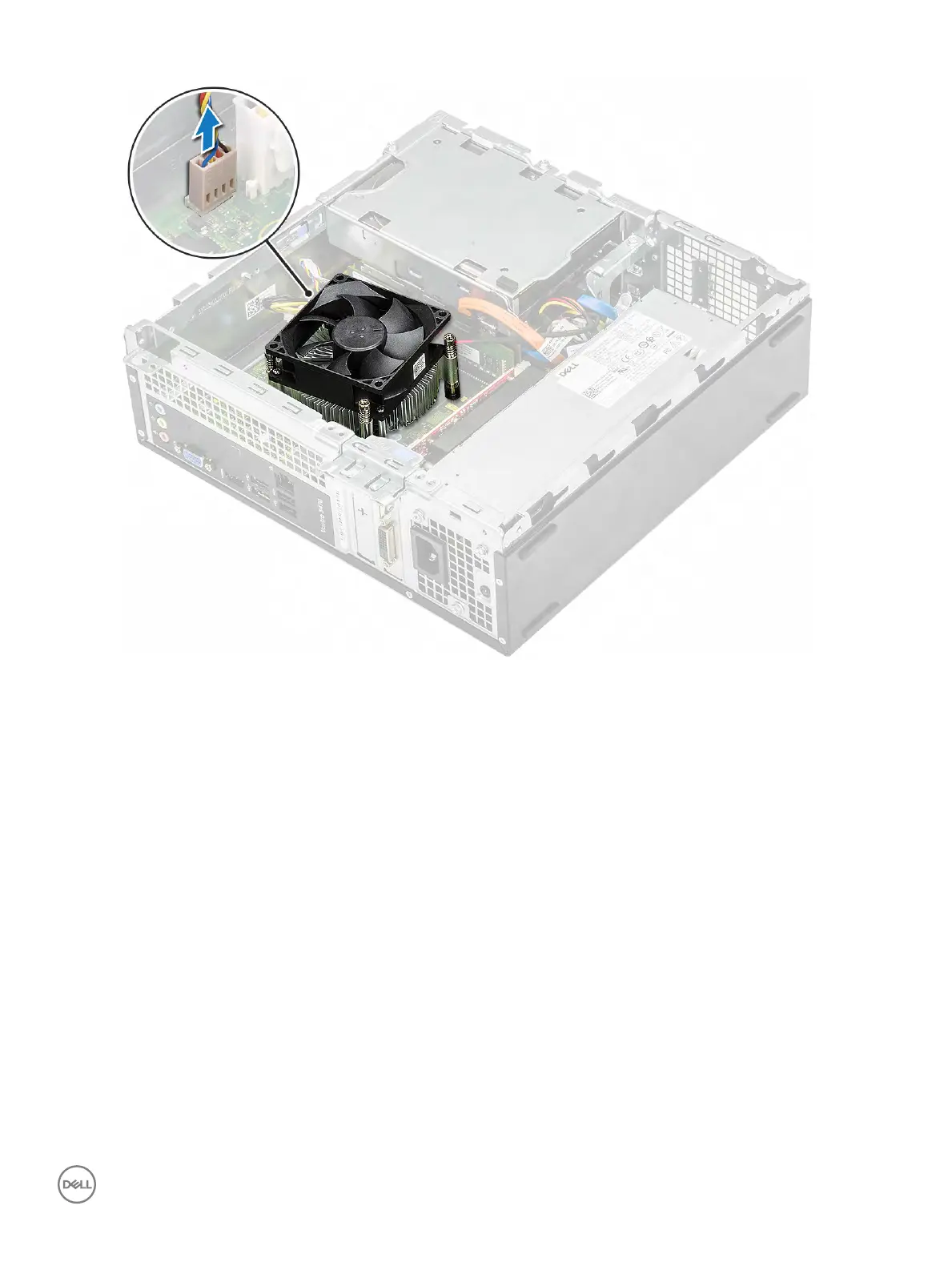

a Disconnect the heat sink assembly cable from the system board.
b Remove the screws securing the heatsink assembly in a sequential order [1,2,3,4].
c Lift the heat sink and remove it from the chassis.
Removing and installing components 45
