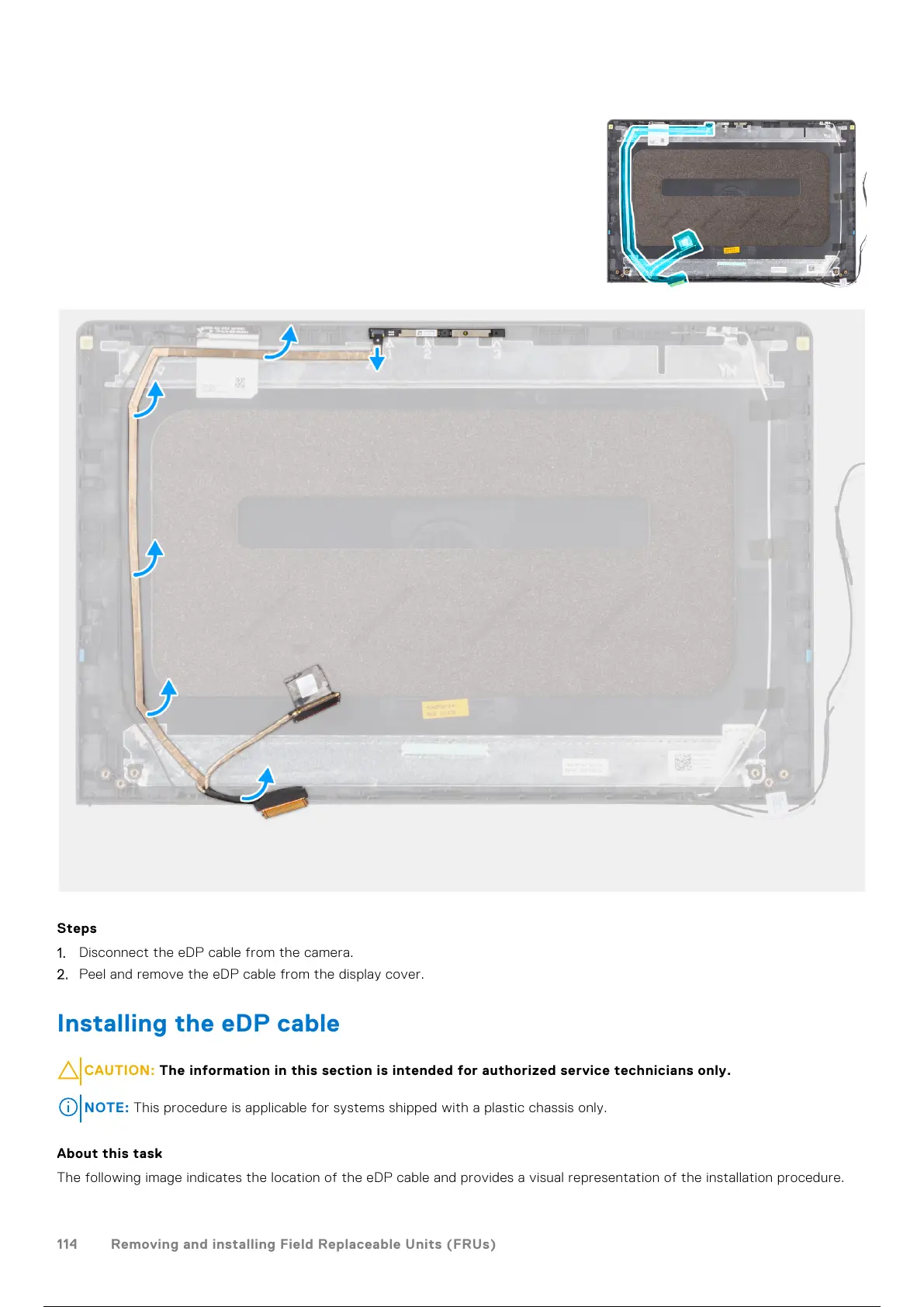

Steps
1. Disconnect the eDP cable from the camera.
2. Peel and remove the eDP cable from the display cover.
Installing the eDP cable
CAUTION: The information in this section is intended for authorized service technicians only.
NOTE: This procedure is applicable for systems shipped with a plastic chassis only.
About this task
The following image indicates the location of the eDP cable and provides a visual representation of the installation procedure.
114
Removing and installing Field Replaceable Units (FRUs)
