1. Disconnect the eDP cable from the camera.
2. Peel and remove the eDP cable from the display cover.
Installing the eDP cable
About this task
NOTE: The eDP cable installation procedure is applicable only for systems with plastic chassis.

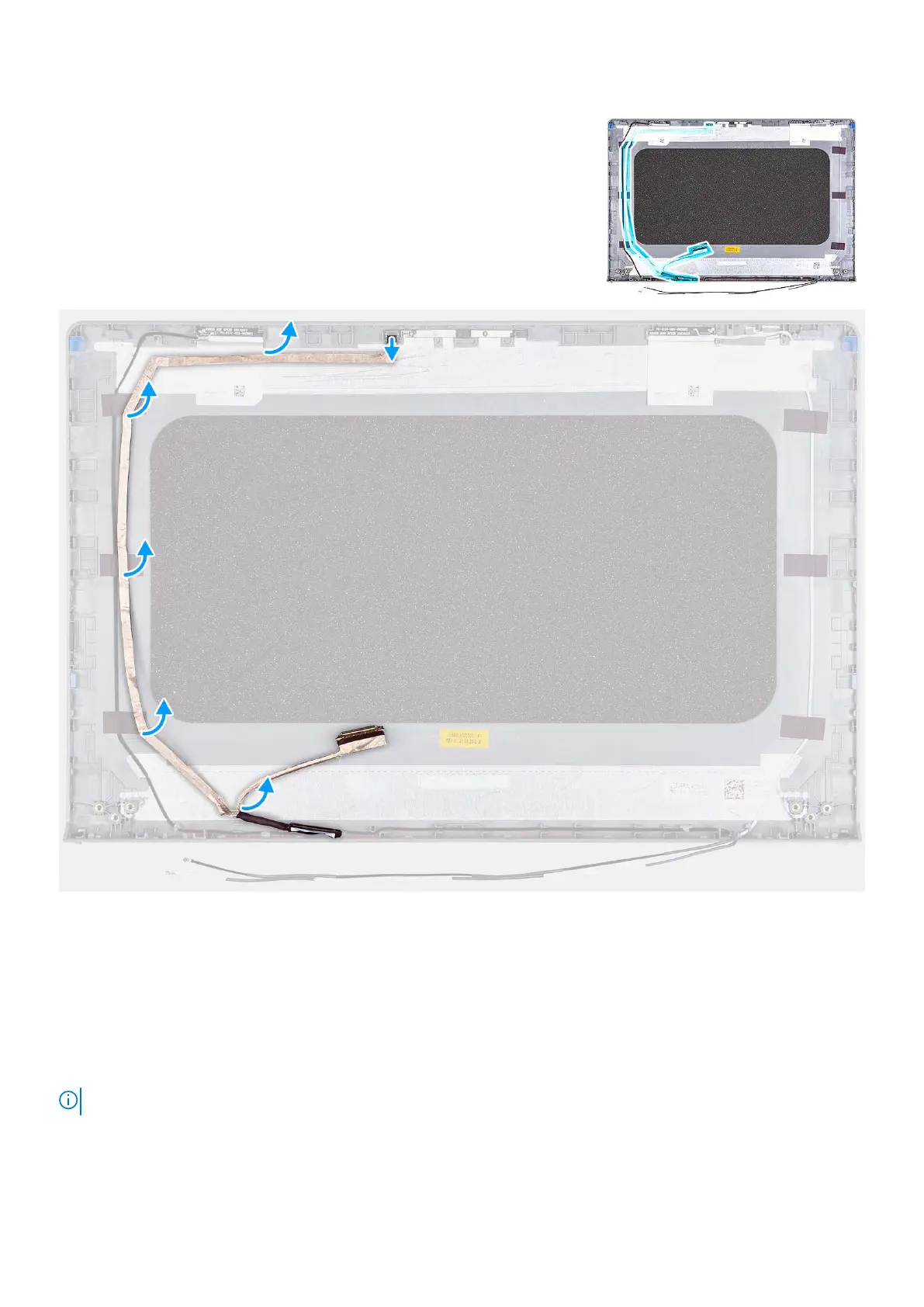

The following image indicates the location of the eDP cable and provides a visual representation of the installation procedure.
Removing and installing components
87
