Steps

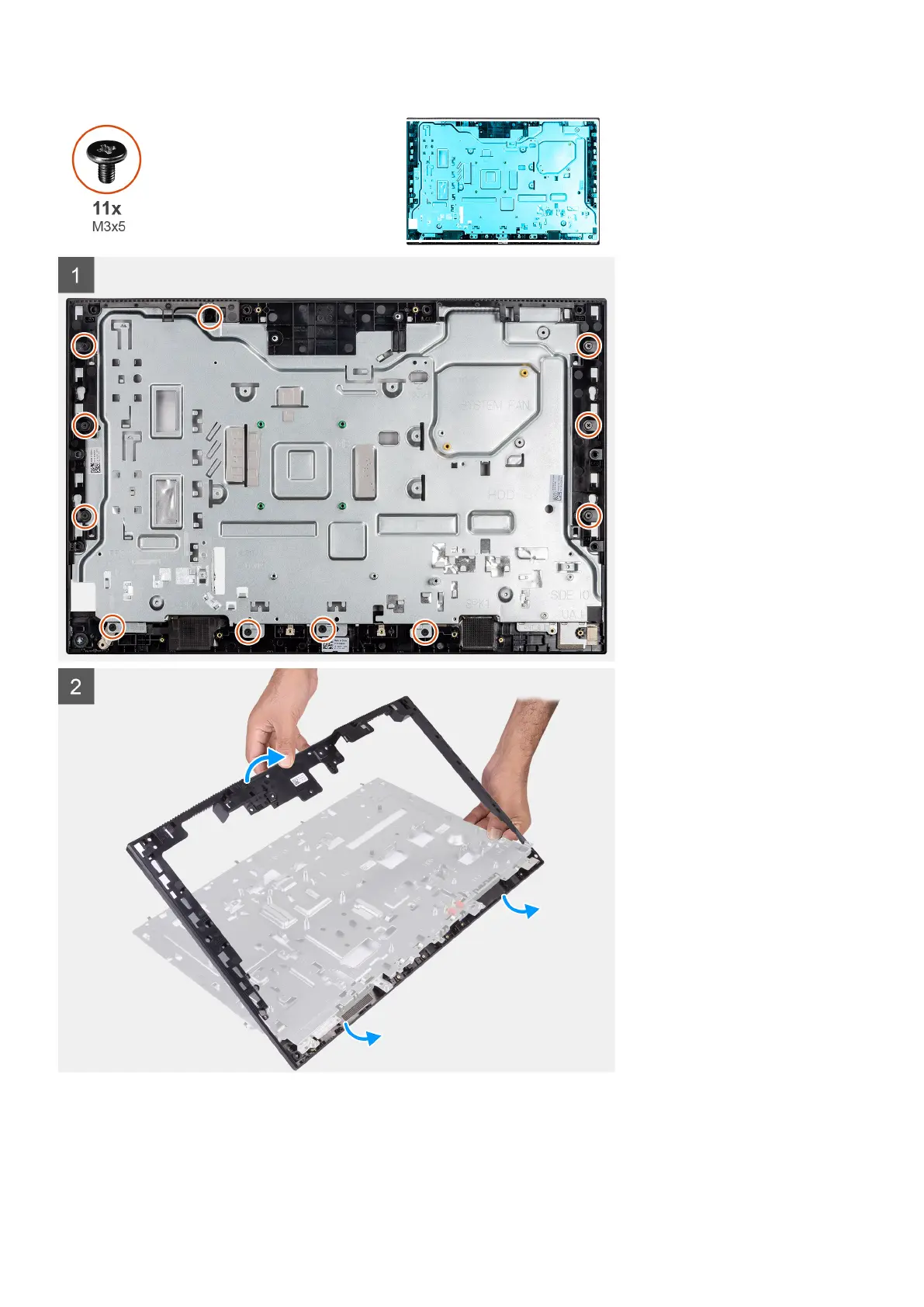

1. Remove the 11 screws (M3x5) that secure the middle frame to the display-assembly base.
2. Remove the middle frame and lift the middle frame off the display-assembly base.
76
Removing and installing components
