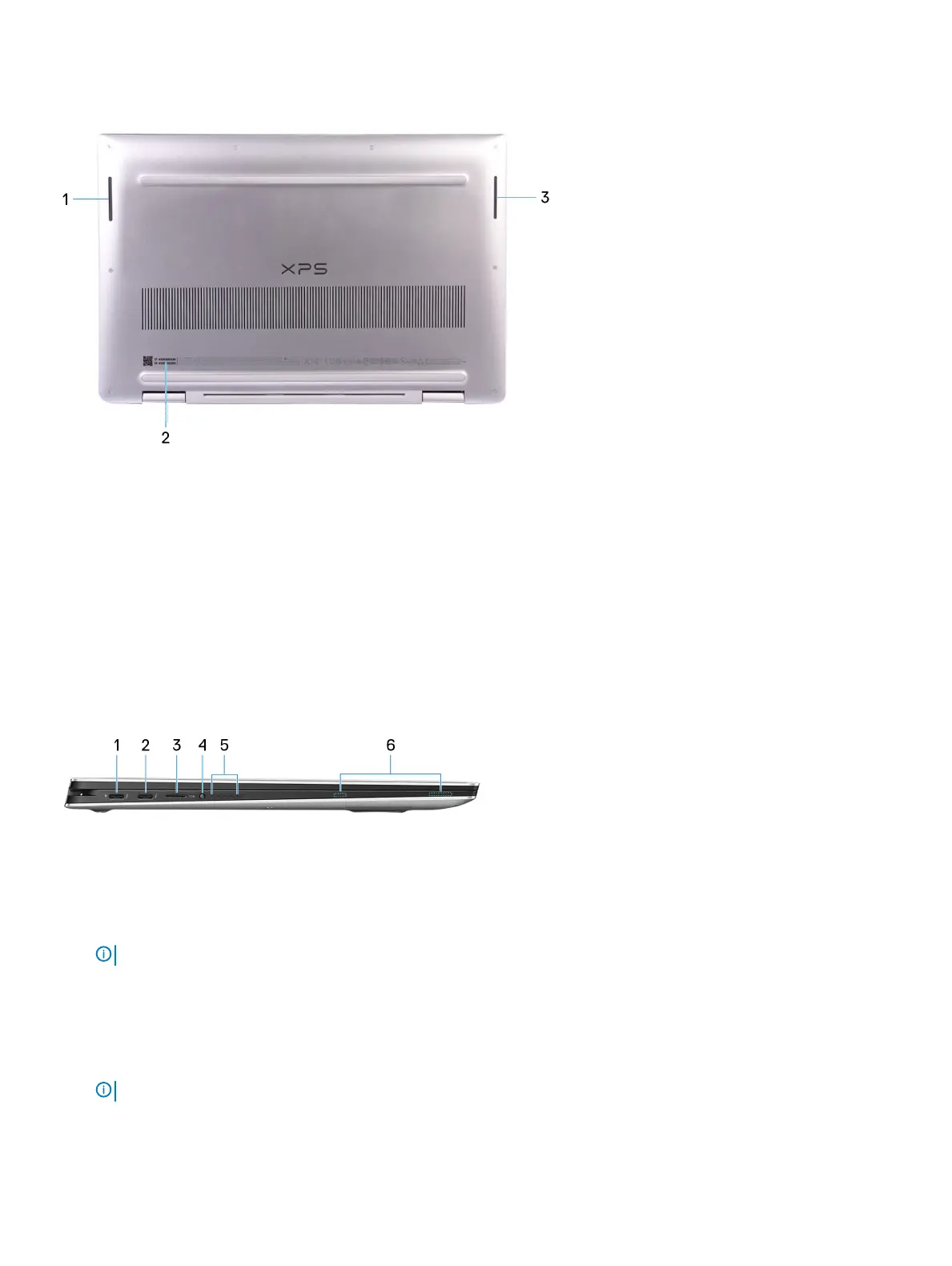

Bottom
1 Left speaker
Provides audio output.
2 Service Tag label
The Service Tag is a unique alphanumeric identier that enables Dell service technicians to identify the hardware components in your
computer and access warranty information.
3 Right speaker
Provides audio output.
Left
1 Thunderbolt 3 (USB Type-C) port with Power Delivery (Primary)
Supports USB 3.1 Gen 2, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display adapter.
Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery that
enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
2 Thunderbolt 3 (USB Type-C) port with Power Delivery
Supports USB 3.1 Gen 2 Type-C, DisplayPort 1.2, Thunderbolt 3 and also enables you to connect to an external display using a display
adapter. Provides data transfer rates up to 10 Gbps for USB 3.1 Gen 2 and up to 40 Gbps for Thunderbolt 3. Supports Power Delivery
that enables two-way power supply between devices. Provides up to 5 V/3 A power output that enables faster charging.
NOTE
: A USB Type-C to DisplayPort adapter (sold separately) is required to connect a DisplayPort device.
3 microSD-card slot
Views
9
