7. If no screws are attached to the drive, check the inside of the drive panel for screws and, if screws are present, attach
the screws to the new drive.

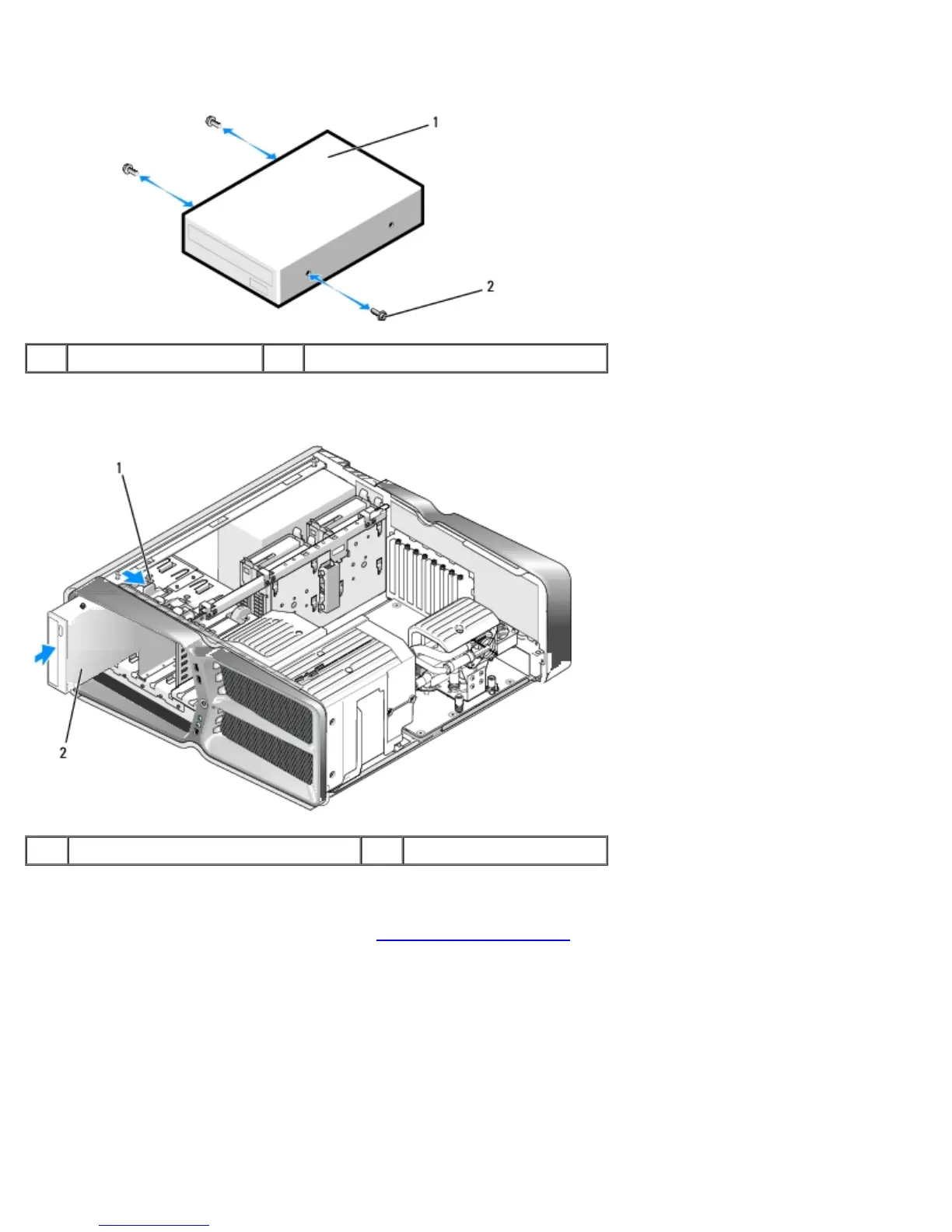

1 optical drive 2 shoulder screws (3)
8. Gently slide the drive into the drive bay until you hear a click or feel the drive securely installed.
1 drive release latch 2 optical drive
9. Attach the power and data cables to the optical drive.
To locate the system board connector, see System Board Components.
