36 Replacing a PCI/PCI Express Card
6
Press the securing tab (if present) on the system board connector as you
grasp the card by its top corners, and then ease the card out of the
connector.
NOTE: If the card is full length, press the securing tab on the end of the
alignment guides on the fan bracket.

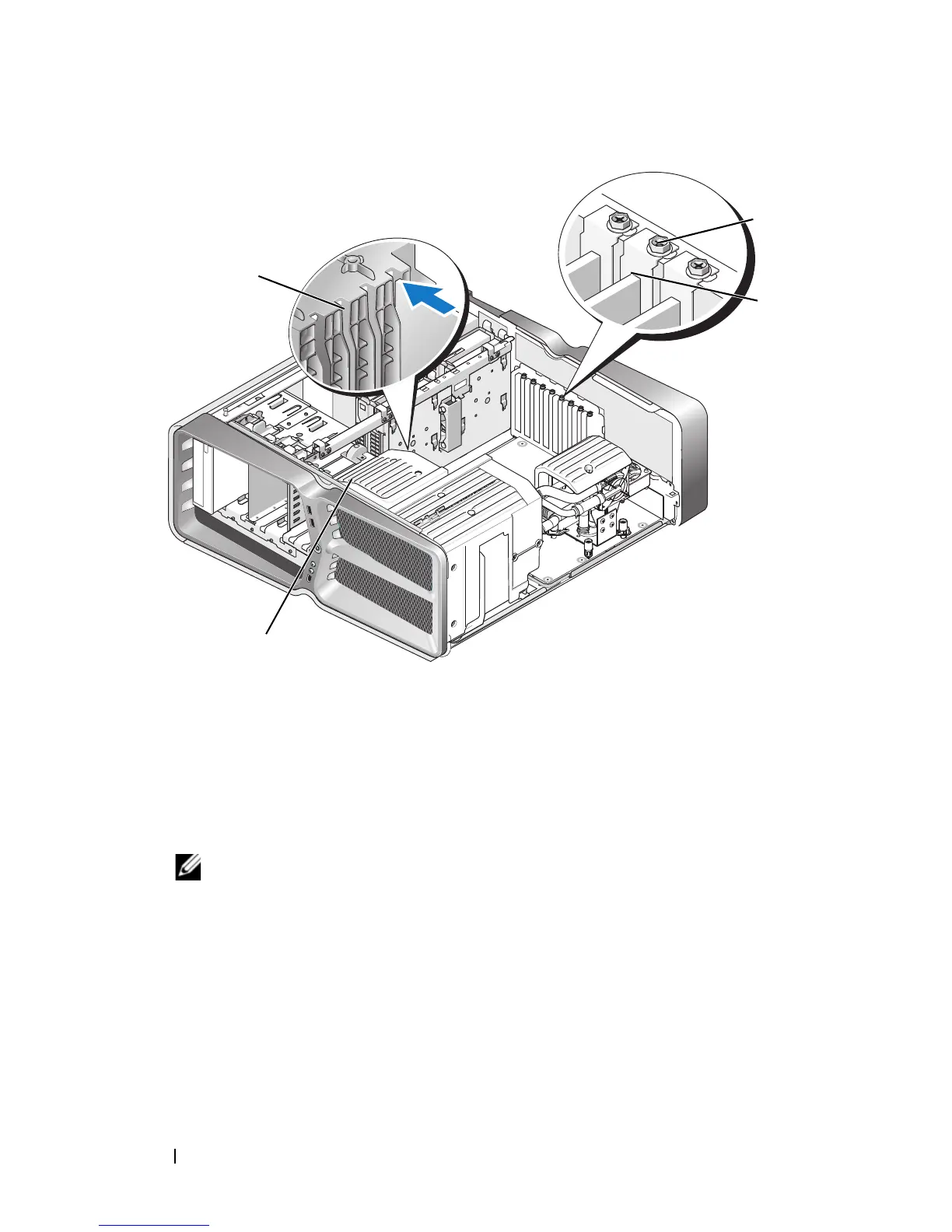

1 retention screw 2 card retainer
3 alignment guide 4 fan bracket
