78 Replacing Fans
7
To install the card slot fan assembly, connect the fan cable to the
FAN_CAGE connector on the system board (see "Master Control Board"
on page 12).
8
Align the fan cage tabs with the slots in the chassis. Insert the tabs and
push the cage towards the front of the chassis.
9
Screw in the fan retention screws on the front and back of the fan cage.
10
Replace any expansion cards that you removed (see "Replacing a PCI/PCI
Express Card" on page 27).
11
Replace the PCI card fan shroud and captive screws on top of it.

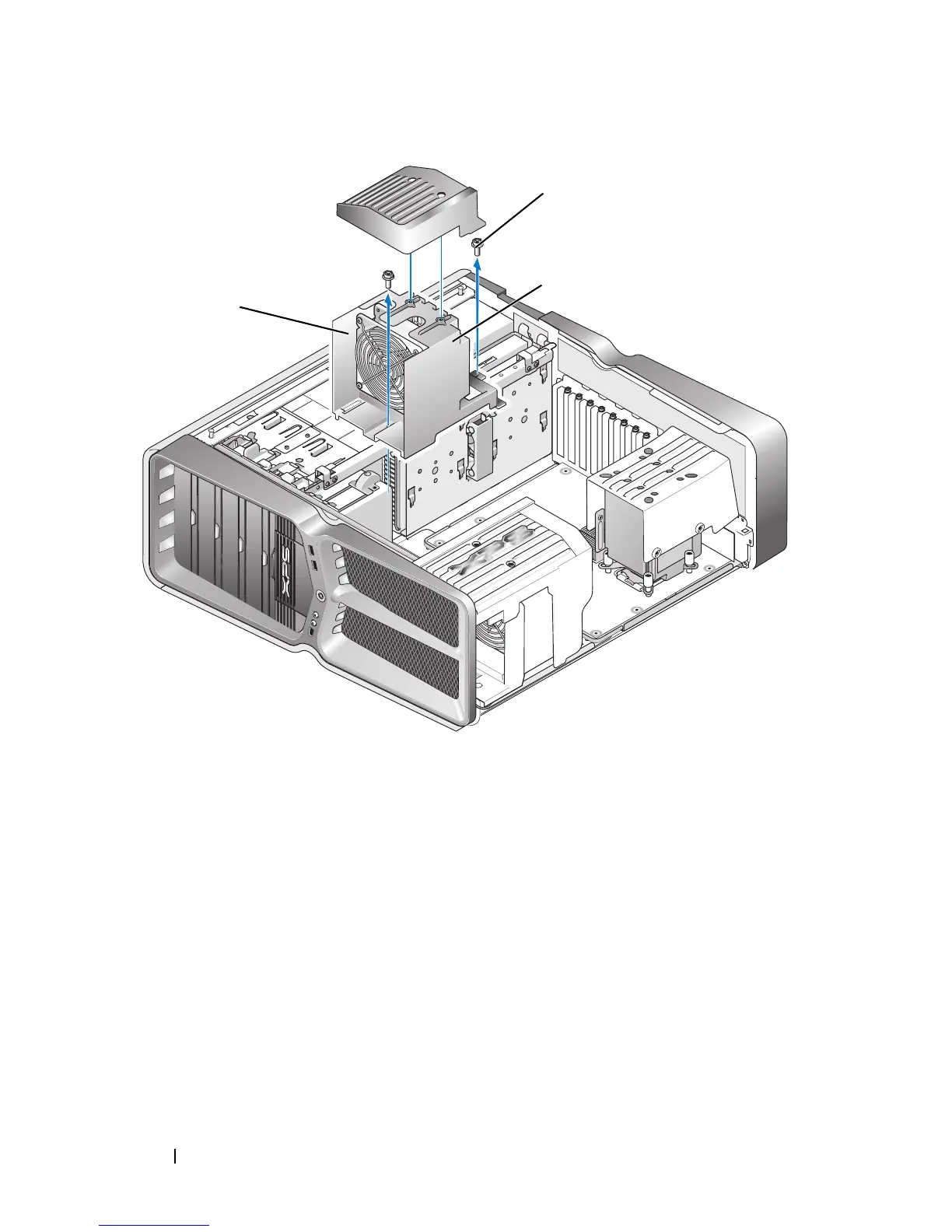

1 cage housing 2 fan cage
3 screws (2)
