Bracket Template
1x
Mounting Plate
1x
Refrigerant Pipe
Narrow 1x
Thick 1x
Drain Hose
2x
Drainage Joint
1x
Plasticine Putty
1x
Rubber Foot Pad
4x
Lineset Converter 
1x
• Screw Driver
• Hole Saw Ø2.75" / Ø70mm
• Refrigerant Leak Detector / Liquid Leak Detector
• Allen Wrench
• Spanner
• Torque Wrench
• Measuring Tape
• Spirit Level
• Stud Finder
• Thermometer
• Vacuum Pump
• Dry Wall Anchors / Molly Bolts
• Wood Screws
• Floor Mounting Base Kit / Wall Mount Kit
• Micron Gauge / AC manifold Gauge
• Copper Pipe Bender
• Caulk
• Tubing Cutter*
• Pipe Reamer*
• Tubing Flaring Tool*
• Wire cutter*
NOTE: Tools marked with * are needed for shortening the refrigerant pipe and / or electrical wire to the exact desired length.
ONLY a qualied HVAC technician should attempt altering the pipe length and / or the wire length.
 Lineset converter is only supplied with 048-TL-24K2V-19S-IN indoor unit.

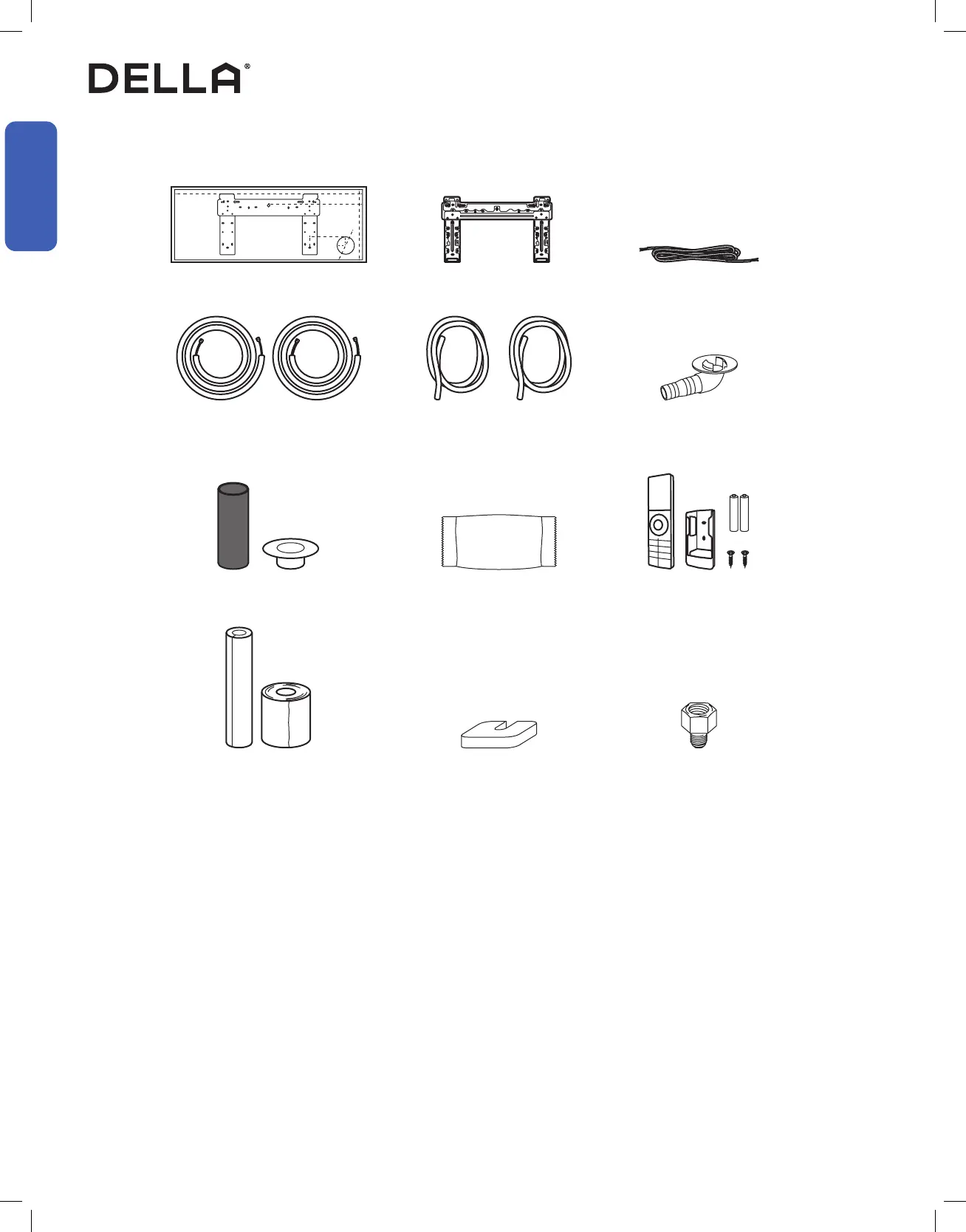

Name of Parts
Included Accessories (for each indoor unit)
Tools Needed (Not included)
Before Installation Before Installation
Wall Sleeve & Cover
1x
Electrical Wire Set
1x
Insulation Foam & Wrap
1x
Remote Control, Holder 1x
Battery 2x
