20

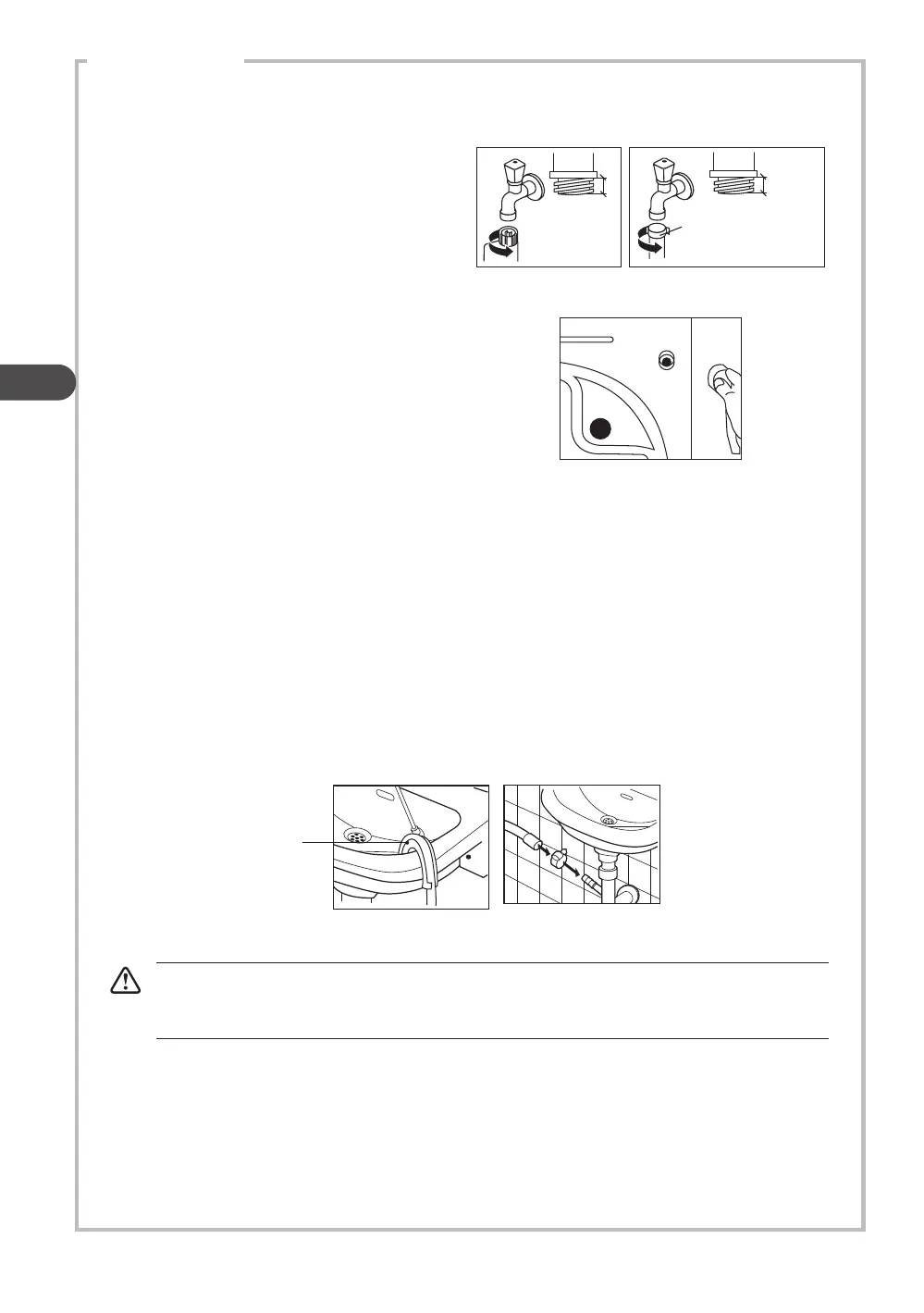

connecting the water supply hose
1. To prevent leakage from the connection
joints, ensure the rubber washer seals are
fitted to each end of the water supply hose.
Do not use without the seals in place.
2. Fit the straight end of the water supply
hose to the cold water tap.
3. Connect the angled end of the hose to the
water inlet valve on the machine. Hand
tighten the plastic parts of the connections.
If you are unsure, please call a qualified
plumber for safer connections.
4. Open the tap slowly and check that there
are no leaks around the connection joints.
water drain hose
Points to remember:
• Don’t twist, pull out or bend the drain hose.
• Your machine should be no more than 85cm from the drain outlet.
• The water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm
from the ground.
Draining to a sink or wash-basin
• Secure the drain hose in position, so it can’t drop out of the basin.
• Don’t block the basin’s drain outlet, and make sure that the drainage through it is sufficient to
prevent overflowing.
• Don’t let the tip of the drain hose dip into the drained water, as this can cause the water to
flow back into the machine.
min. 10 mm min. 10 mm
Plastic joint
U-Shape Holder
Draining to a wash-basin Draining to a drain hose
Before connecting to the waste pipe, make sure to check the waste pipe and remove
any stopper or blockage inside, otherwise the unit may not be able to expel the waste
water properly.
