13

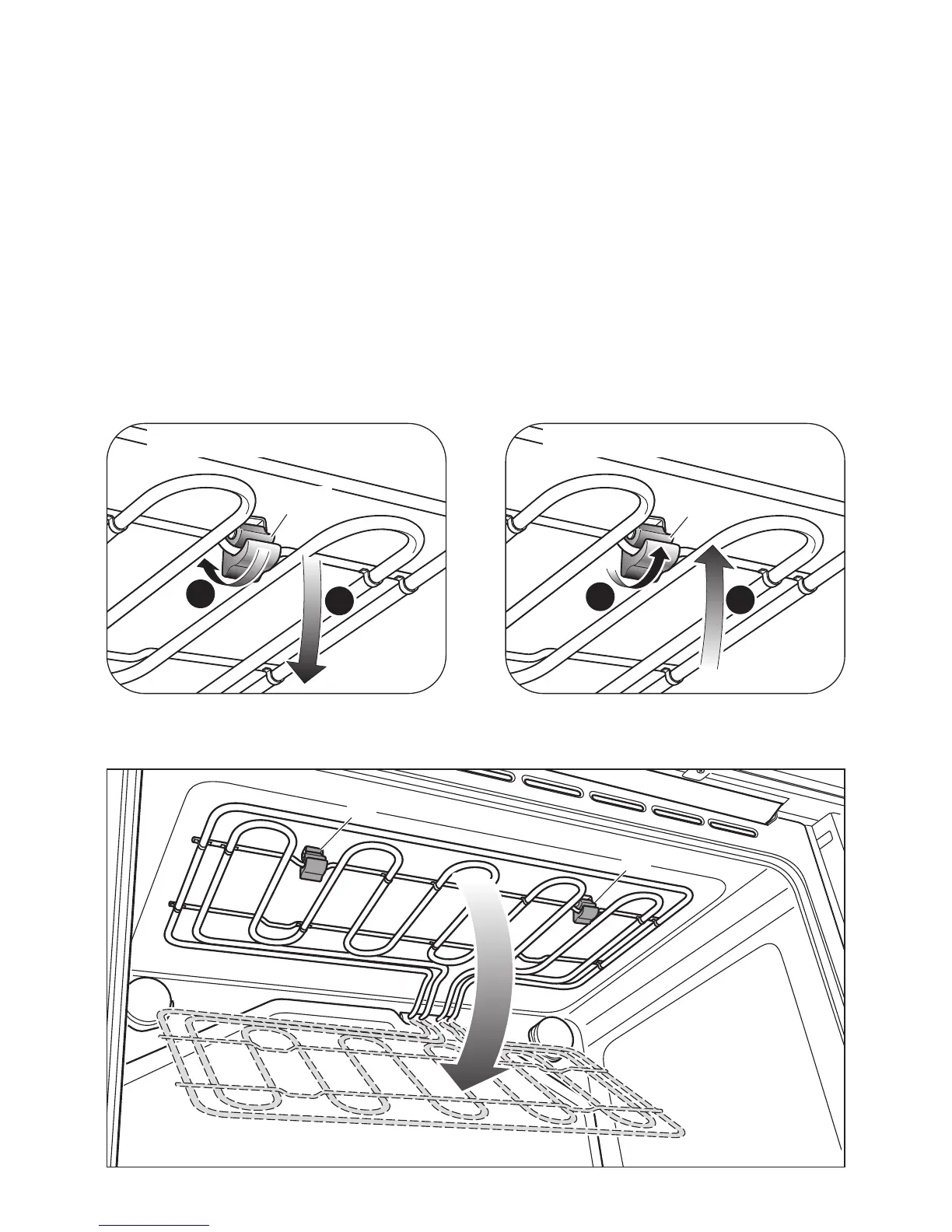

Figure 12
Figure 14
Figure 13
A
2
1
1
2
A - B
A - B
B
UNLOCKING THE TILTING GRILL LOCKING THE TILTING GRILL
Unlocking the tilting grill (fig. 12)
1. Open the hooks A and B.
2. Gently pull down the grill as shown
in the figure 14.
Locking the tilting grill (fig. 13)
1. Gently lift up the grill.
2. Close the hooks A and B on the grill
bar.
TILTING GRILL (fig. 14)
■ The grill is secured to the rear wall of the oven on a hinge system that allows it
to be lowered to allow proper access when cleaning the oven ceiling (fig. 14).
■ In the front the grill is secured to the ceiling by the hooks A and B.
