36

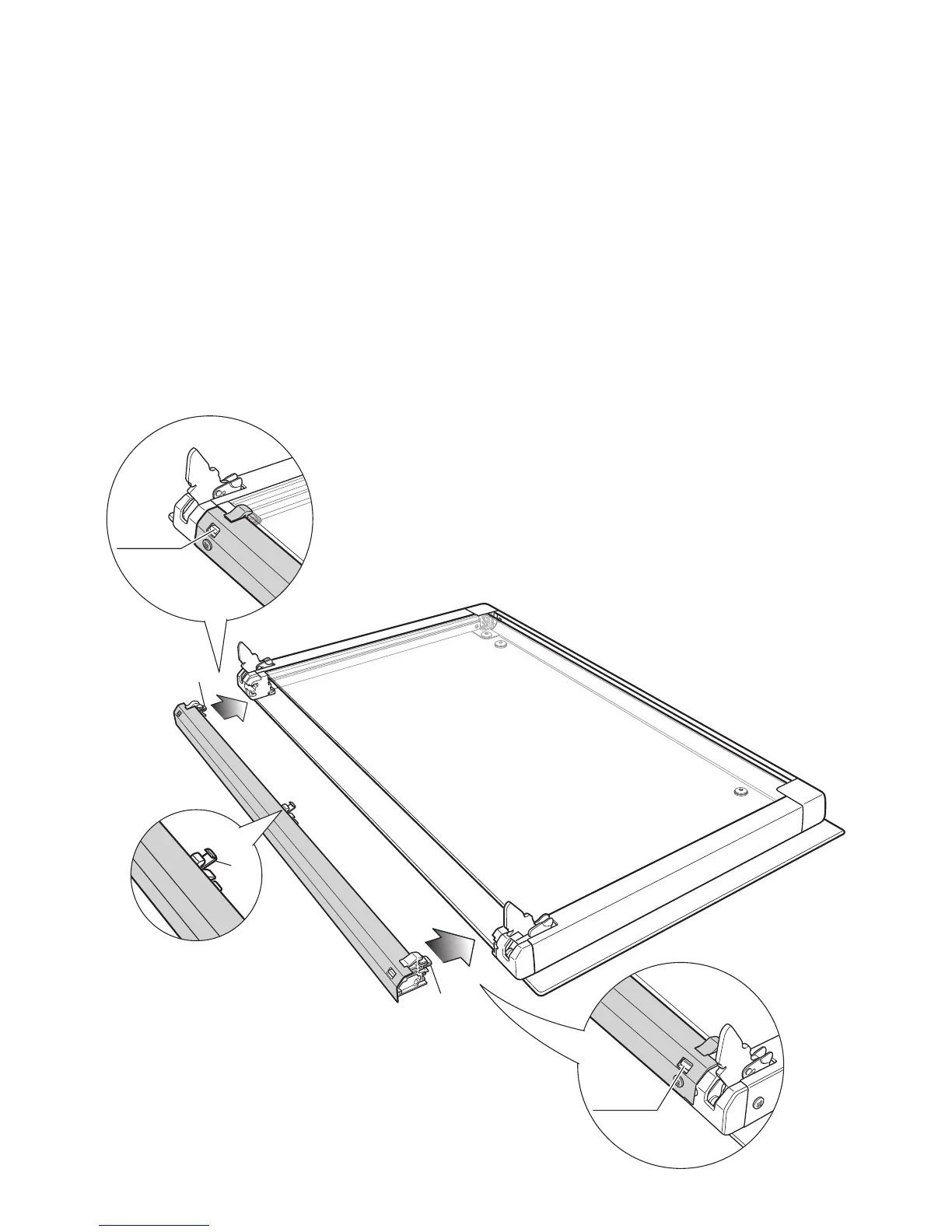

Figure 31
REPLACE THE GLASS RETAINER
1. Position the glass retainer, as shown in the figure 31. It should sit on the bottom
edge of the outer glass. Check that the clamps M are not deformed or damaged.
2. Gently push the glass retainer back into place. You should be able to hear the tabs
on both sides click as they lock the glass retainer in.
Important!
Make sure the glass retainer is correctly and firmly in place and that the
glass pane is secure.
