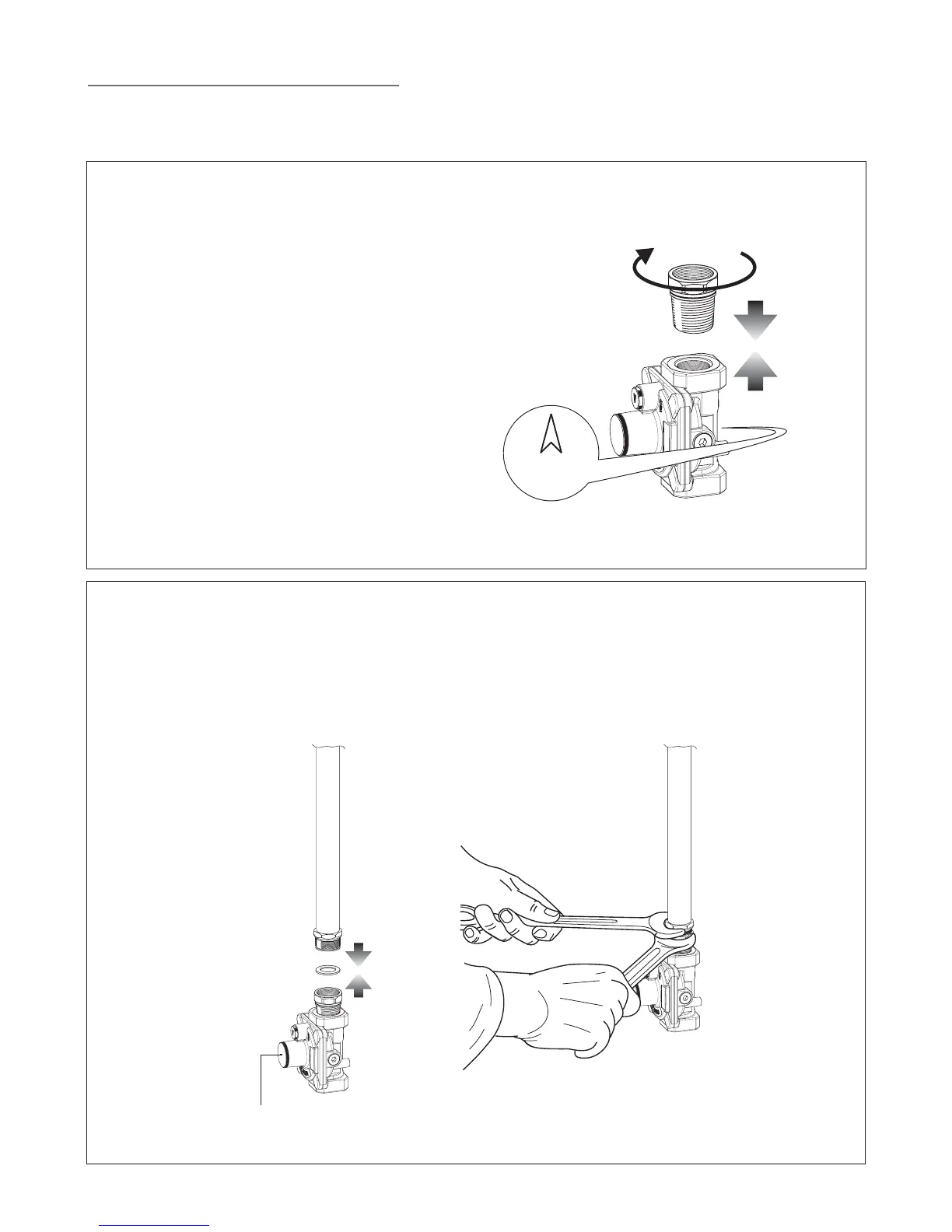

STEP 1
Mount the 3/8” NPT (conical) male connector to the pressure
regulator and tighten by using a wrench.
Do not over tighten the connector.
Over tightening may crack regulator.
STEP 2
Assemble the 3/8” NPT connector + pressure regulator group to the manifold interposing the gasket supplied. The regulator
cover must be oriented toward the back of the cabinet.
IMPORTANT: use two spanners to tighten the connection.
Regulator cover
Fig. 6.2a
Fig. 6.2b
