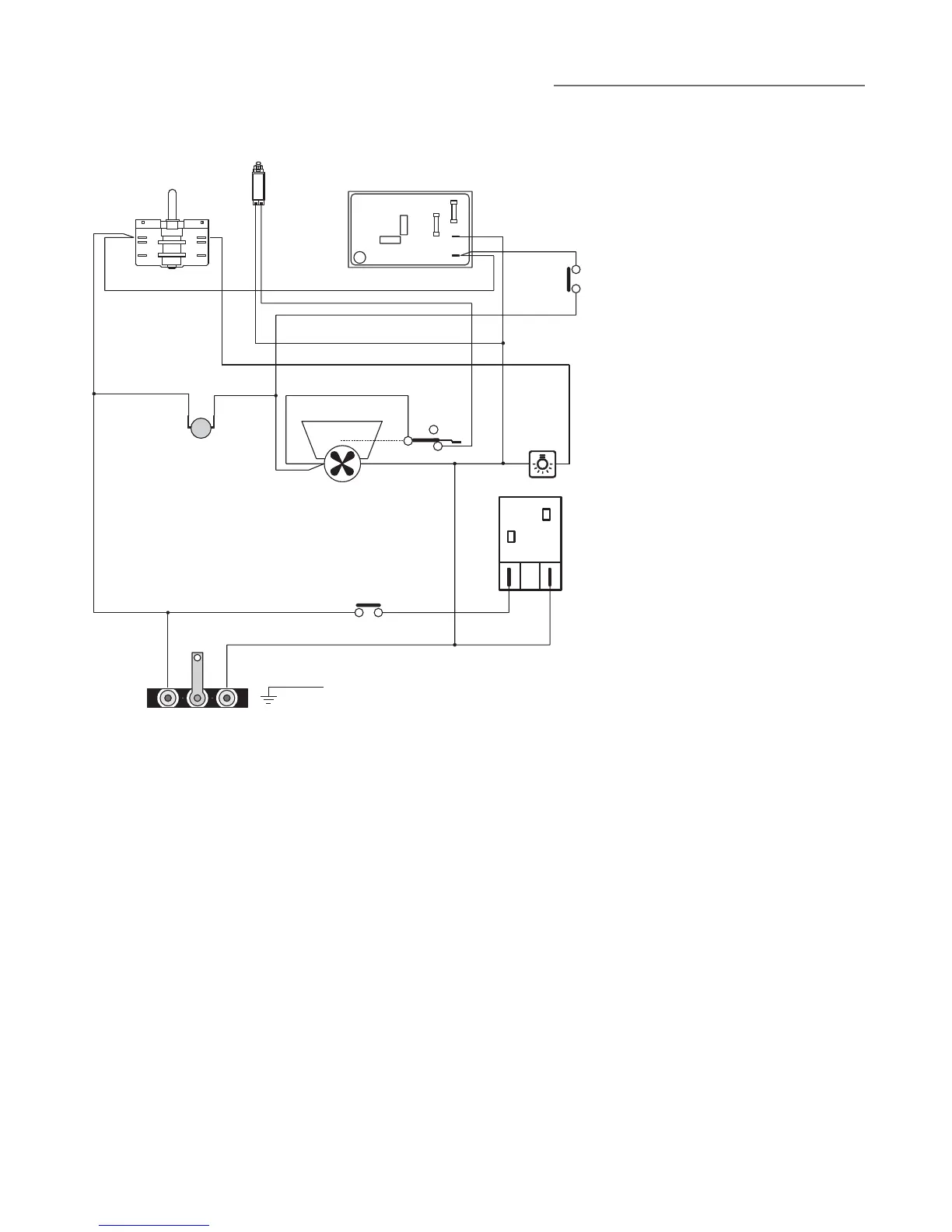

DeLonghi DEBIG24 - Electric Diagram

27
M
T
AS
CF
P2
2
P1
1
LF
N/7
L/8
S
MS
PA
F
EC
A
TL
1131550
Electric diagram key
F Switch
MS Security switch
AS Air switch
LF Oven lamp
CF Cooling fan
EC Electronic clock
PA Ignition switch
A Ignition coil
TL Thermal overload
S Cooling fan failure lamp
MTerminal block
T Earth connection

ELECTRIC DIAGRAM
