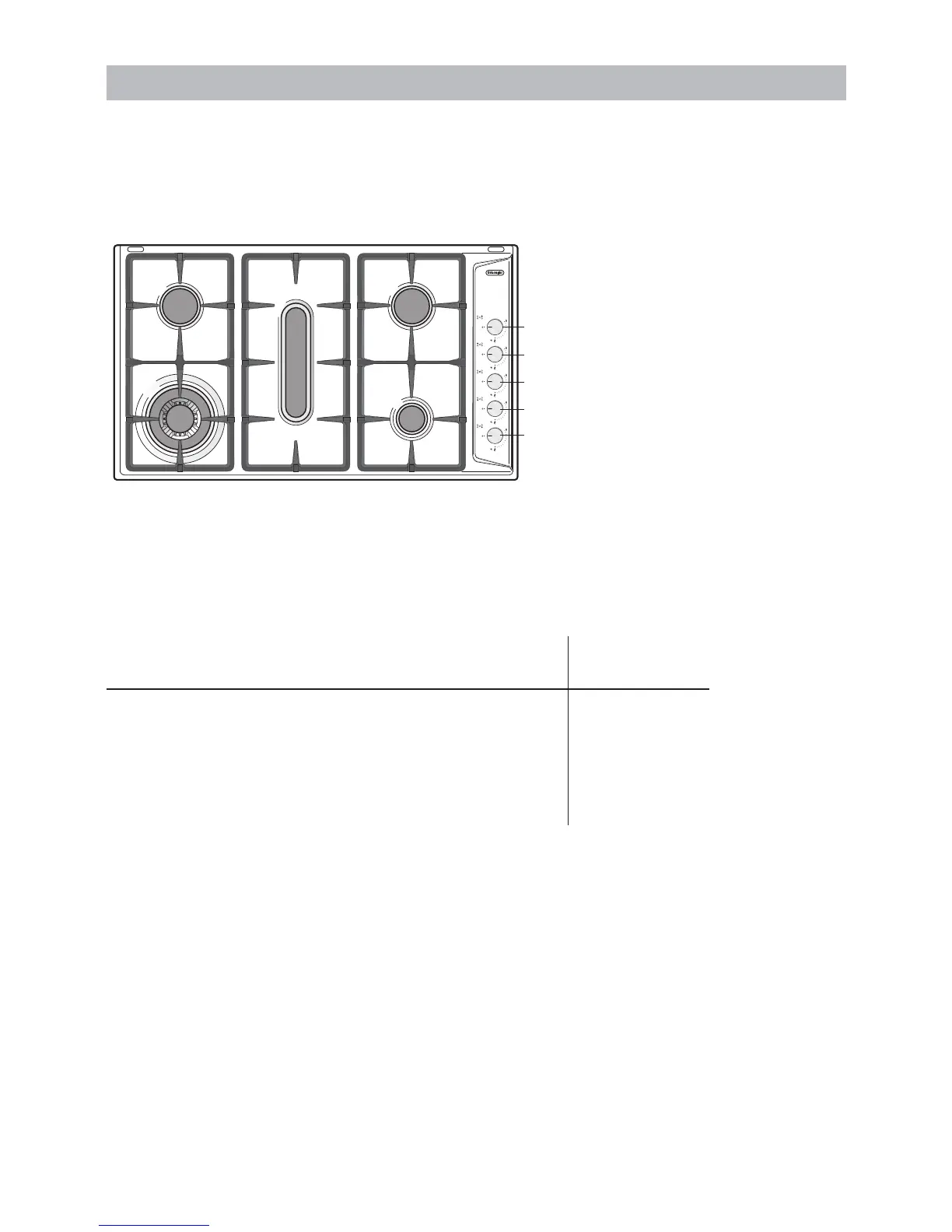

Figure 11
CONTROL PANEL
10. Auxiliary burner control knob (1)
11. Triple-ring burner control knob (2)
12.
Fish burner control knob (3)
13. Left semi-rapid burner control knob (4)
14. Right semi-rapid burner control knob (5)
GAS BURNERS Natural Gas Universal LPG
MJ/h MJ/h
1. Auxiliary burner (A) 3.6 3.6
2. Triple ring burner (TR) 13.0 11.9
3.
Fish burner (PS) 10.3 10.8
4. Left semi-rapid burner (SR) 6.3 6.3
5. Right semi-rapid burner (SR) 6.3 6.3
14
13
12
11
10
■ This appliance is class 3
rated
■ The electric ignition is
incorporated into the
knobs
■ The appliance has a safe-
ty valve system fitted
(beside every burner there
is the “T” probe as in fig.
16 - not confuse with the
“S” electrode of the elec-
tronic ignition) the flow of
the gas will stopped if and
when the flame should
accidentally go out.
