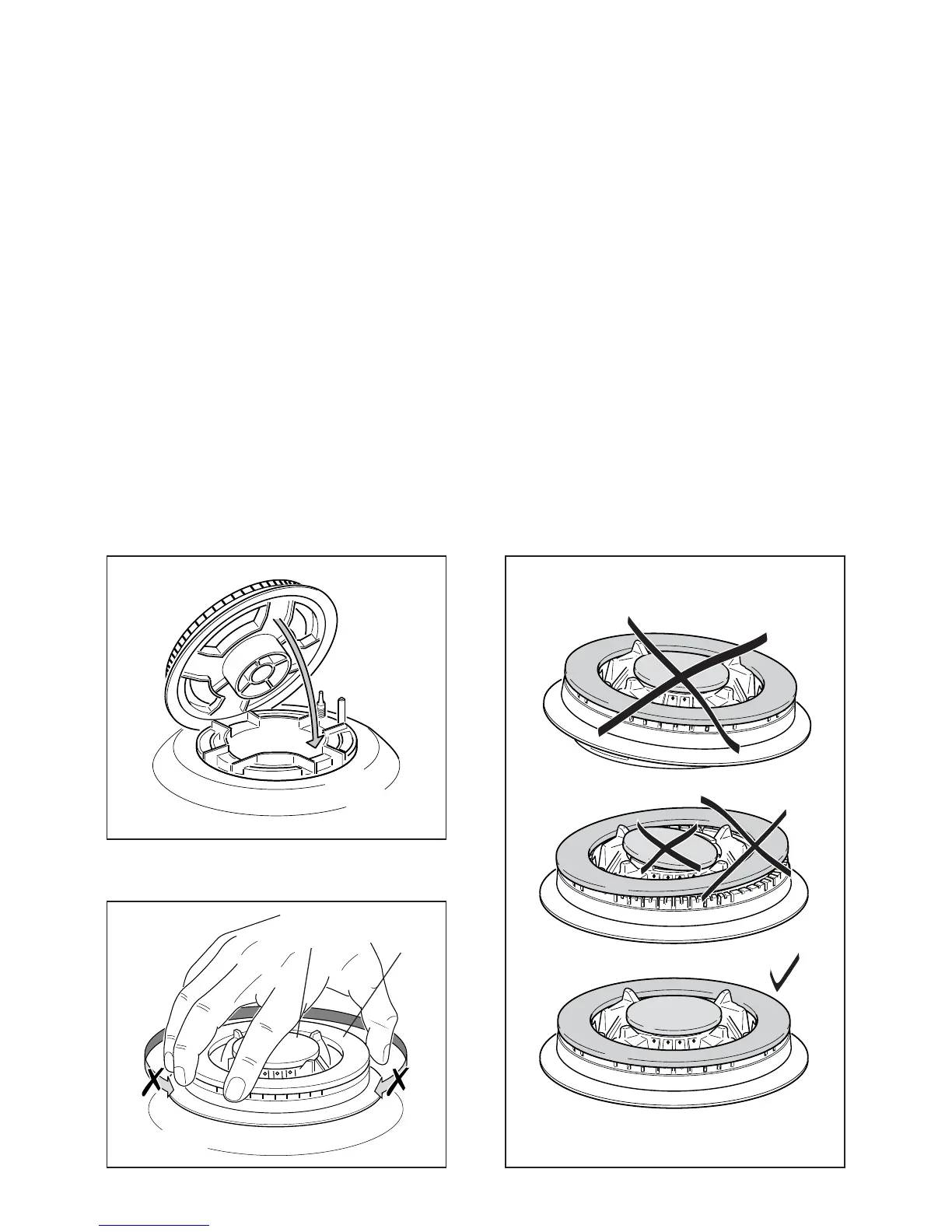

CORRECT POSITIONING OF THE TRIPLE-RING BURNER
■ The triple ring burner must be correctly positioned (see fig. 20); the burner rib
must be located in position as shown by the arrow (see fig. 18).
■ The burner correctly positioned must not rotate (fig. 19).
■ Then position the cap “A” and the ring “B” (fig. 19).
Figure 18 Figure 20
Figure 19
A
B
