7
INSTALLATION (Refer to Figure 4):
1. Spread out the gasket “C” over the workbench at the edge of the cut out tak-
ing care to overlap the gasket at the corners.
2. Slot in the cooking hob into the cut out of the workbench and locate it cor-
rectly.
3. Adjust the clamps “A” and tighten the screws “B” until the hob is firmly secured.
4. Using a sharp tool, trim any excess gasket which protrudes from the edge of
the hob.

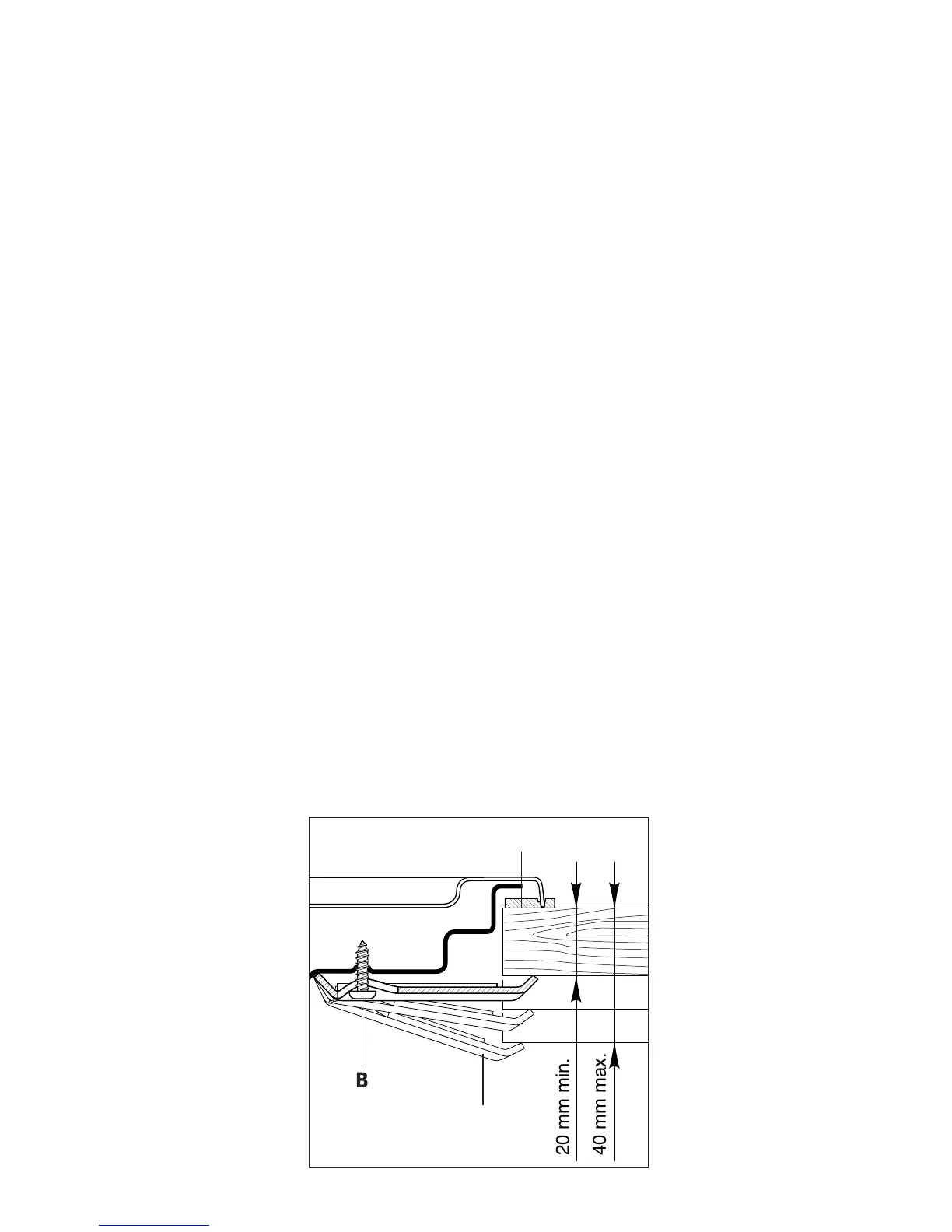

Figure 4
