Installation
1
How to remove the shelf
When removing any of these wire shelves out
of the rail compartment, To fit or remove the
shelf, tilt the shelf as per the diagram and
simply pull out, or push in the shelf until it sits
on the support brackets securely.

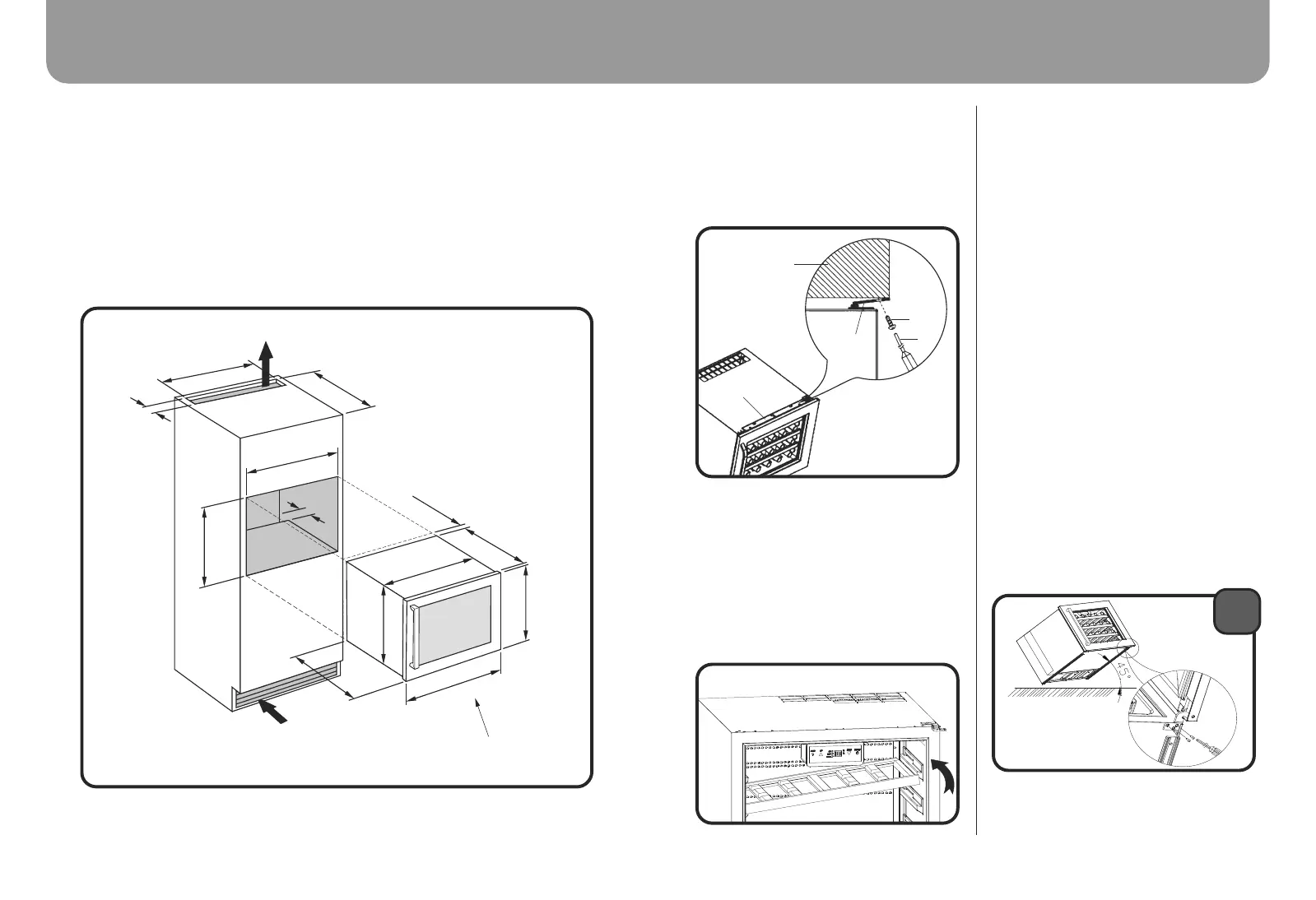

Clearances
This unit is designed for built-in installation
Ÿ
only. If you plan to use this unit in a built-in
application please follow the requirements
below.
NOTE: You will need to install the Inbuilt
Ÿ
Wine Cabinet with a lower ventilation grill
providing 200cm² of ventilation. This is not
supplied with the unit and must be
purchased separately.
Reversing the Door Swing of Your
Appliance
This appliance has the capability of the door
opening from either the left or right side. The
unit is delivered with a right hinged door.
If you wish to reverse the hinge on your
appliance, follow these instructions:
Incline the wine cabinet backwards to a
Ÿ
45 degree angle, take out the right lower
hinge screws with a screwdriver (Fig.1).
Level the wine cabinet, hold the door and
Ÿ
take out right upper hinge screws with a
screwdriver. Then take out the door and
rotate door 180 degrees (See Fig.2, Fig.3
& Fig.4 on Page 12).
Take off the decorative caps from the left
Ÿ
upper side, then position the hinge and fix
the screws to the left upper side. Fit the
decorative caps to the right upper side,
Location ‘A’ (see Fig.5 on Page 12).
Incline the wine cabinet backwards to a
Ÿ
45 degree angle and fix the lower left
screws. (see Fig.6 on Page 12).
Level the wine cabinet and check that the
Ÿ
door opens and closes freely.
Installation
min. 200cm²
min. 200cm²
540mm
120mm
450mm
560mm
560mm
455mm
595mm*
20mm
Clearance
to rear wall
555mm
445mm
120mm
Lower Vent
* For Flush Fit
allow 600mm
520mm
Installation
dimension
558mm
T
otal
dimension
T
otal
dimension
554mm
Fixing into the cabinet
After installing the inbuilt wine cabinet into
Ÿ
the cabinet structure, adjust the fixing
strip (a) so it is close to the cabinet (b)
Then fix the 3 screws through the fixing
Ÿ
strip (a) and screw into the cabinet (b)
a) Fixing Strip c) Screw
b) Cabinet d) Screwdriver
a
b
a
c
d
