11
– The wire which is coloured GREEN AND YELLOW must be connected to terminal
which is marked with the letter “E” or by the Earth
symbol or coloured GREEN
or GREEN AND YELLOW.
– The wire which is coloured BLUE must be connected to the terminal which is
marked with the letter “N” or coloured BLACK.
– The wire which is coloured BROWN must be connected to the terminal which is
marked with the letter “L” or coloured RED.
■ Ret the cable clamp so that it clamps the outer sleeving of the cable, and screw the
screws “C”.
■ Ret the cover plate “B” and x it with the screw “A”.
N.B. The earth conductor must be left about 3 cm longer than the others.
VOLTAGE AND POWER CONSUMPTION
220-240 V ac 4450 W (19.34 A)
FEEDER CABLE SECTION
This double oven must be connected to electrical supply using V105 insulated cable.
3 x 2.5 mm
2
(*)
(*) Connection with wall box connection.

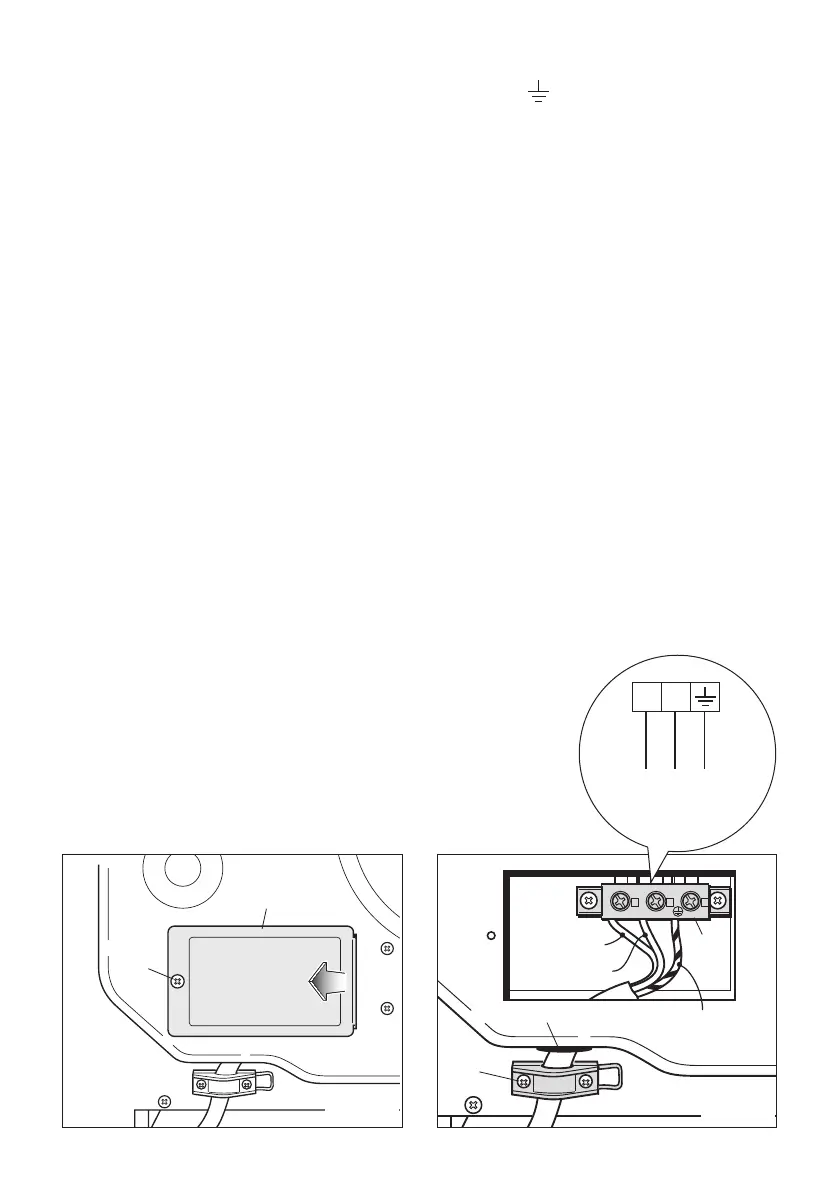

Figure 5Figure 4
A
B
Green & Yellow
(Earth)
Brown (Live)
Blue (Neutral)
N
L
C
P
D
PEN
L
1
(L2)
L1 N
(L2)
E
