DeLonghi DEL6038D - Page 35

35
G
TOP OVEN DOOR (WITH
TWO PANES OF GLASS)
CLEANING THE PANES
OF GLASS
The oven door is tted with no.
2 panes:
■ no. 1 outside;
■ no. 1 inner.
To clean all panes on both sides it is
necessary to remove the inner pane as
follows.
REMOVING THE INNER PANE OF
GLASS
1. Lock the door open:
■ Open the door to the full extent (g.
18).
■ Open the lever “A” completely on the
left and right hinges (g. 27).
■ Gently close the door until left and
right hinge levers “A” are hooked to
part “B” of the door (gs. 27, 28).
2. Remove the inner pane:

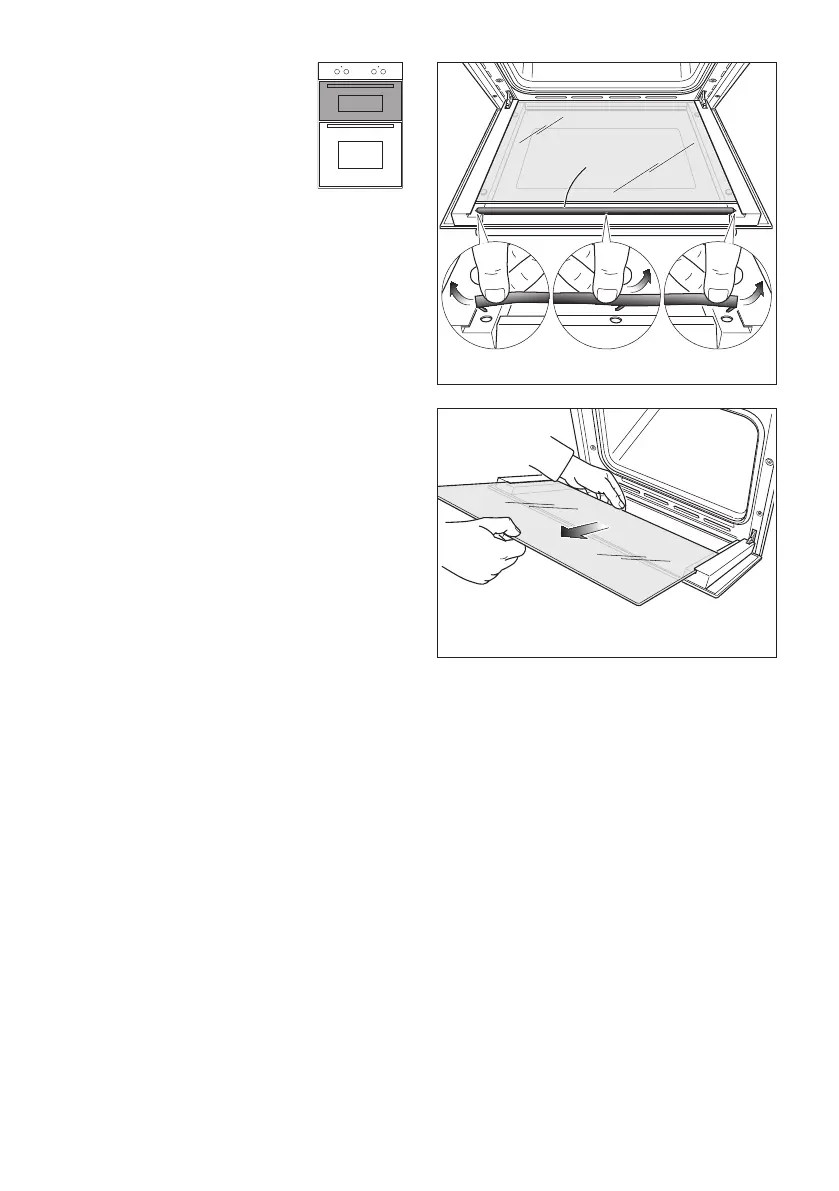

■ Remove the seal “G” by unhooking the
no. 3 xing hooks (g. 32).
■ Gently pull out the inner pane of glass
(g. 33).
■ Clean the glass with an appropriate
cleaner. Dry thoroughly, and place on
a soft surface.
Now you can also clean the inside of the
outer glass.
Figure 32
Figure 33
