AFTER CLEANING, REPLACE THE
INNER GLASS PANE
When replacing the inner glass pane, make
sure that:
• You replace the pane correctly, as
shown. The pane must be in the
position described below in order to
t into the door and to ensure that the
oven operates safely and correctly.

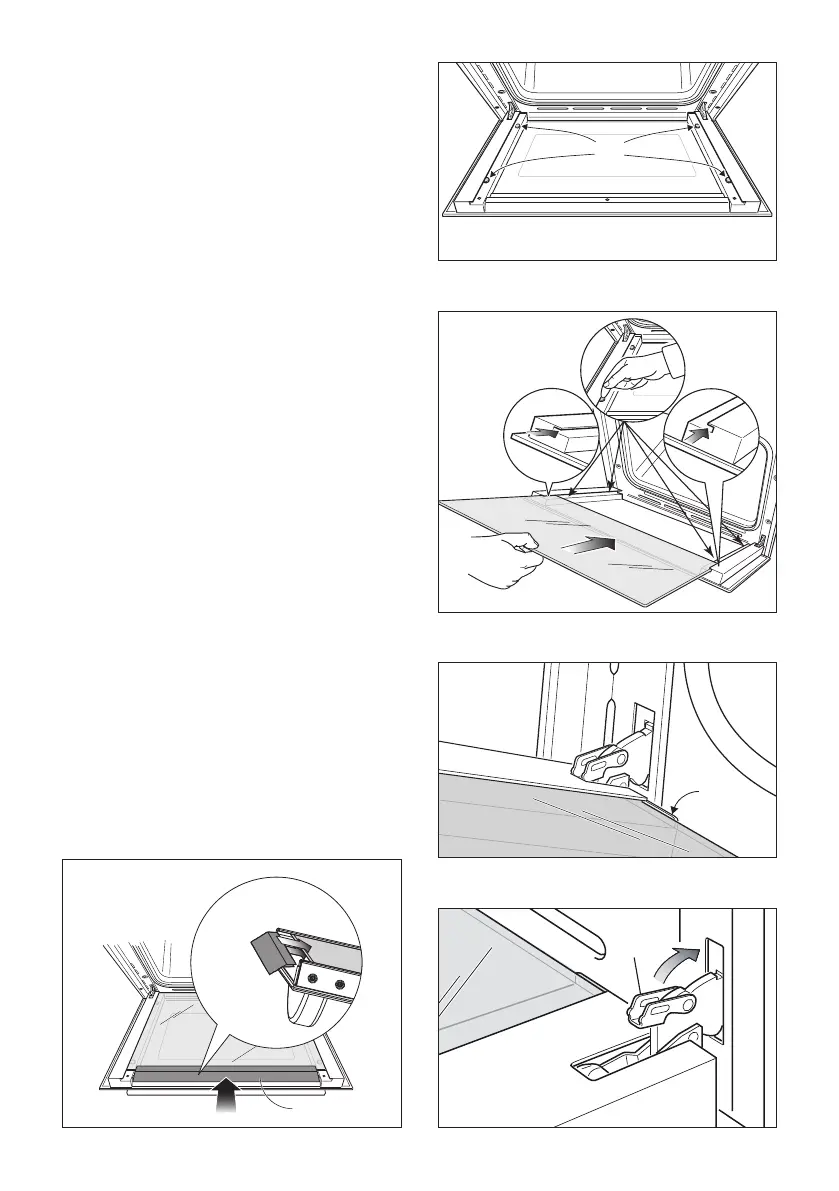

To reassemble the inner pane of the oven
door operate as follows:
1. Make sure the door is locked open
(see g. 8.5c).
2. Replace the inner pane:
• Check that the four rubber pads are in
place (“D” in g. 8.8a).
 IMPORTANT: It is advisable, while
retting the glass, to keep pressed in
position the four rubber pads “D”, by a
nger, to avoid breakage or slippage of
the rubber pads themselves (g. 8.8b).
• Check that you are holding the pane
the correct way. You should be able to
read the wording on it as it faces you.
• Insert the pane in the left “E” and right
“F” slide guides (g. 8.8b), and gently
slide it to the retainers “H” (g. 8.8c).
• Gently push the air deector “G” back
into place (g. 8.8d).
• Unlock the oven door by opening it
completely and closing the lever “A”
on the left and right hinges (g. 8.8e).
H
D
A
Fig. 8.8a
Fig. 8.8c
Fig. 8.8e
G
Fig. 8.8d
F
E
Fig. 8.8b
