CONNECTING THE FEEDER CABLE
WARNING: If the power supply cable is
damaged, it must be replaced only by
an authorised service agent in order to
avoid a hazard.
To connect the feeder cable to the cooker
it is necessary to:
• Remove the two screws that hold
shield “A” behind the cooker.
• Open completely the cable clamp “D”.
• Position the U bolts onto terminal
block “B”
(fig. 10.1) according to the
diagram in figs. 10.2, 10.3.
• Insert the feeder cable into the cable
clamp “D”. The supply cable must
be of a suitable size (see the section
“Feeder cable section”).
• Connect the phase and earth cables
to terminal “B” according figures 10.2,
10.3.
• Pull the feeder cable and block it with
the cable clamp “D”.
• Re-mount shield “A”.
N.B. The earth conductor must be left
about 3 cm longer than the others.

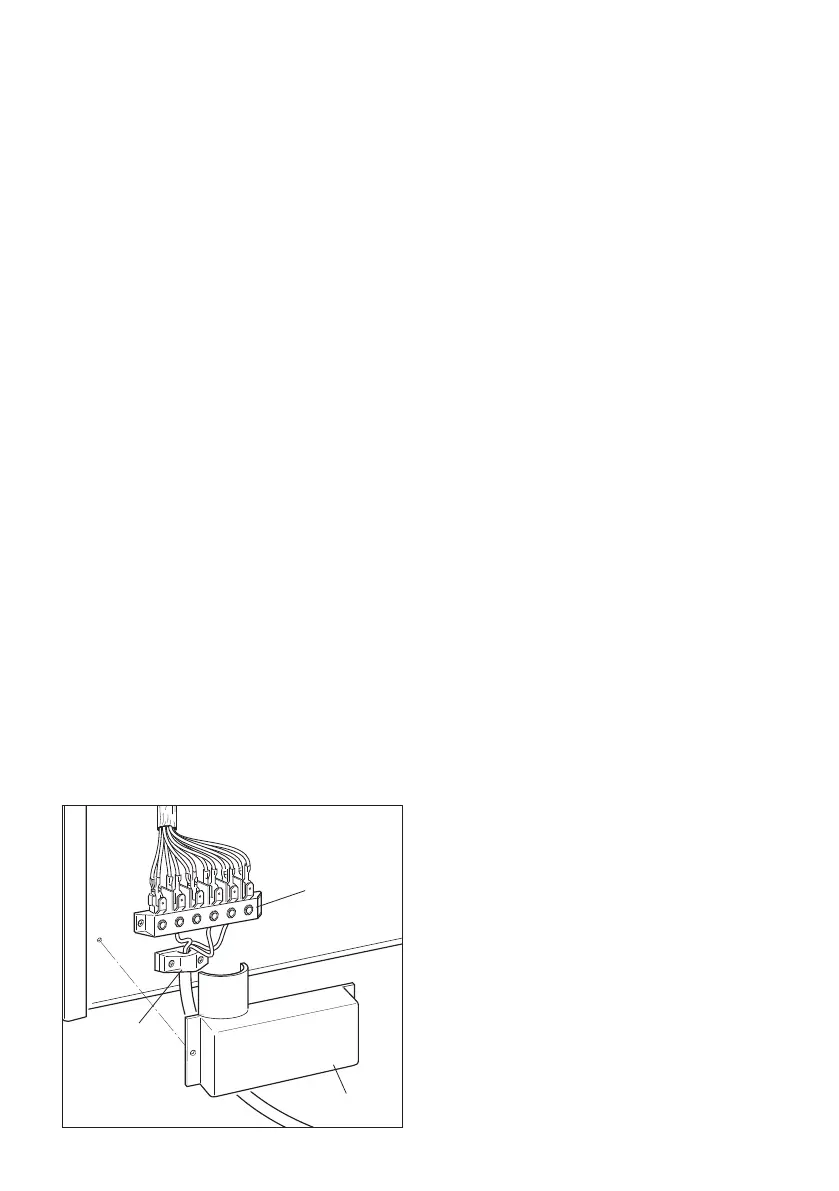

A
D
B
Fig. 10.1
FEEDER CABLE SECTION
“TYPE H05RR-F”
230 V ac 3 x 6 mm
2
(**)
400 V 3N ac 5 x 2,5 mm
2
(**)
400 V 2N ac 4 x 6 mm
2
(**)
(**) Connection with wall box connection.
– Diversity factor applied.
– A diversity factor may be applied to the
total loading of the appliance only by a
suitably qualied person.
POWER SUPPLY
230 V ac 11100 W
