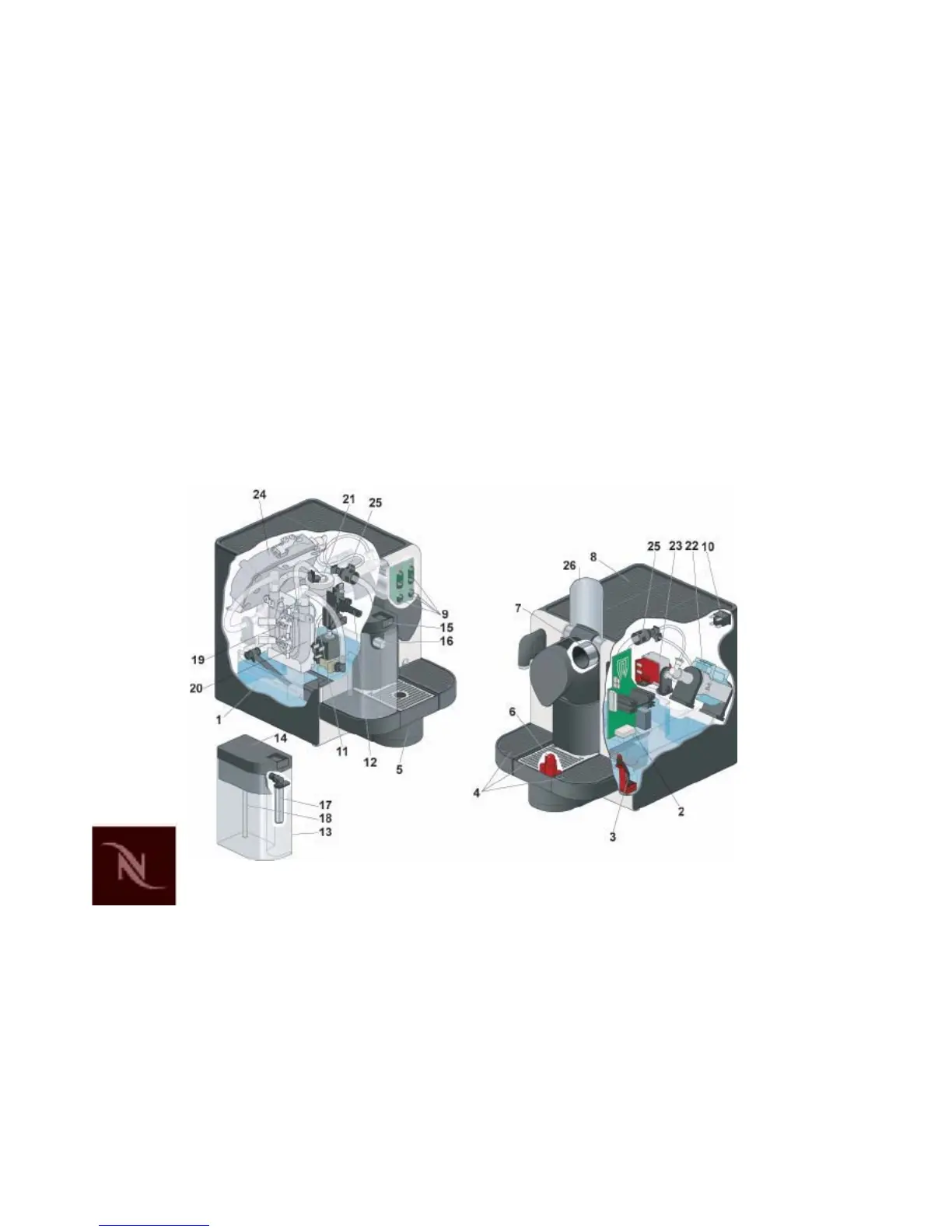

8.1 Main components
1.Water tank 9. Push buttons 17.Frothed milk dispensing tube 25.Priming device
2.Electronic board 10.Main Switch 18.Milk intake tube 26.MBU lever
3.Floater 11.Solenoid valve 19.Thermal Cut Off
4.Drip tray grid, grid left, grid right 12.Steam Coupling 20.Steam Heating element
5.Drip tray 13.Milk Carafe 21.Flowmeter
6.Floater 14.Lid 22.Coffee Pump
7.Capsule cage 15.Frothing slider 23.Steam/Hot water Pump
8.Cup plate 16.Clean button 24.Thermoblock
