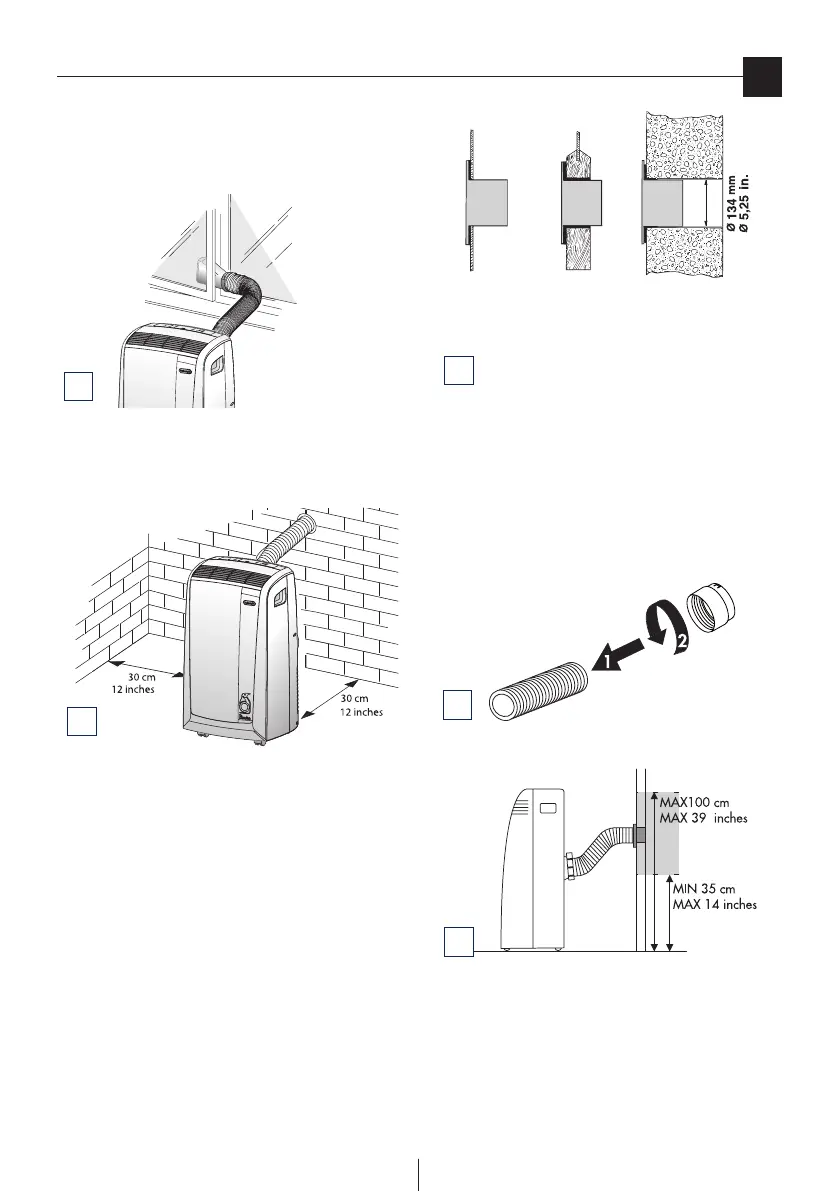

French window
• After having screwed the window outlet 17 into the air
exhaust hose 12 , open the French window slightly and
position the window outlet 17 as shown in gure E.
SEMIPERMANENT INSTALLATION
If required, your appliance can also be installed semi-
permanently (Fig. F).
Proceed as follows:
• Drill a hole (ø134mm / 5,27 in.) in an outside wall or
through a window pane.
Respect the height and dimensions of the hole given in
gures F and G.
NOTE: As special tools are required for installation, we suggest
you have the appliance installed by specialized personnel.
KEEP THE AIR HOSES AS SHORT AND FREE OF CURVES AS
POSSIBLE TO AVOID CONSTRICTIONS.
• Fitthewallange11 into the hole.
• Screwthehoseadaptor 13 tothehose’send12.
• Fittheairexhausthoseinthehousingatthebackofthe
appliance as shown in gure A.
• Screwthewallmounting accessory 14 into the hose
12.
(g. H) and t it into the wall ange 11 as shown in g.
I.
When the hose 12 is not tted, the hole can be closed with the
ange cap 11 .
NOTE: When installing the air conditioner semi-permanently,
you should leave a door slightly open (as little as 1 cm) to
guarantee correct ventilation.
Preparing for use
E
H
I
G
in the window pane
in the wooden
kickboard of a
French window
in the wall: you are
recommended to
insulate the section
of wall using suitable
insulation.
F
