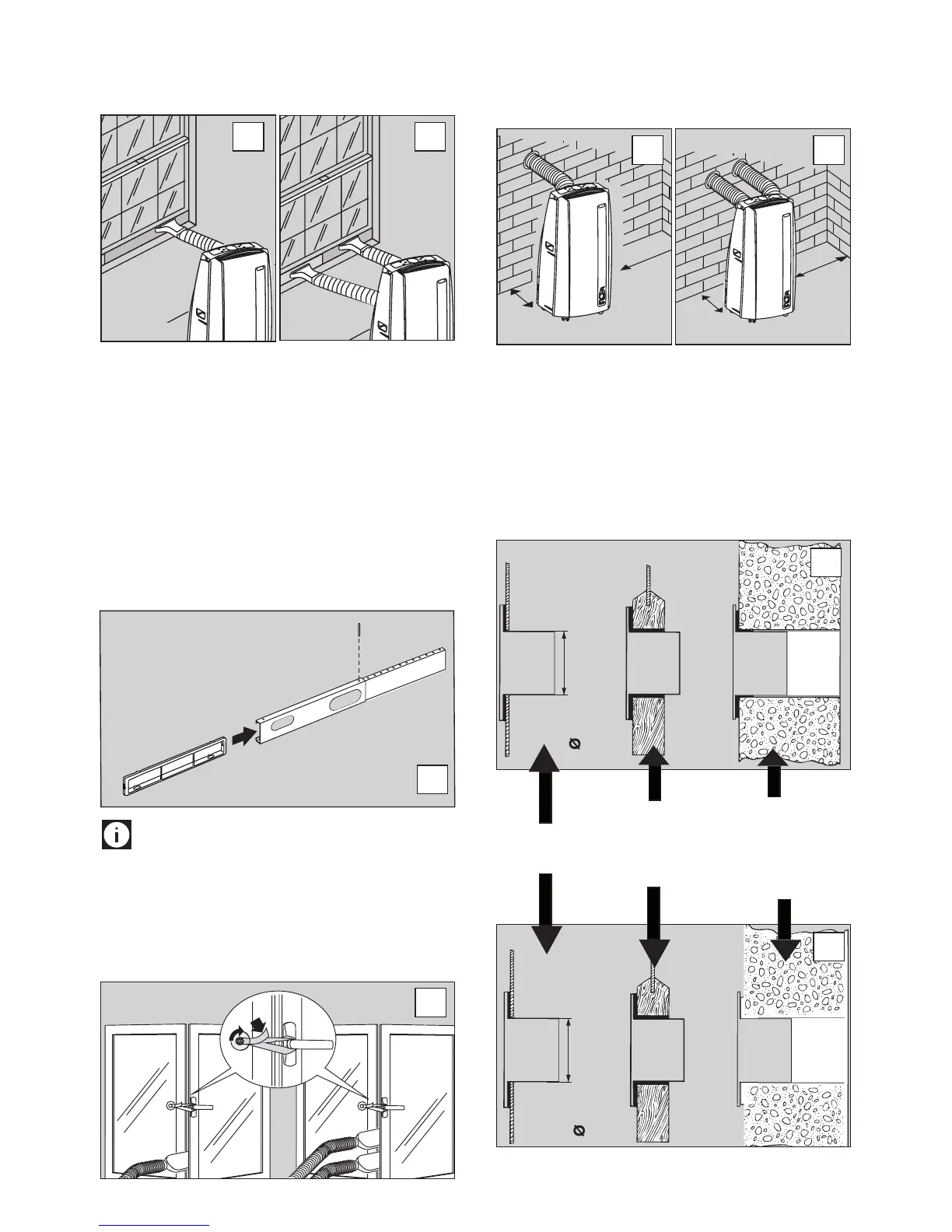

Position the hole of the bracket so to allow a
correct installation of the exhaust hose.
If the windows are large, use the 2 window bar
(U and V) to cover your window opening, exten-
ding them to the required length, then blocking
it with the locking pins supplied. Make sure you
do not cover the hole or holes for the window
outlet.
Bug Screen
mounted on the window bracket as shown in
fig. 3.
Keep the air hose as short and free of cur-
ves as possible to avoid bottlenecks.
Double window
Open the double window slightly and position
hold the two parts of the window together (fig. 4).
Air-conditioning with installation
If required, your appliance can be installed semi-
Proceed as follows:
-
vided in the hole following the indications in
figs. 6, 7 and 8.
Respect the dimensions and height of the
hole given in figures 6, 7 and 8.
4.17 inches - 106 mm inlet hole dimension
5.27 inches - 134 mm outlet hole dimension
