Delphi GT 280 - PLR Replacement - Step 1 (Remove PLR)

Assembly Manual
4 Way GT 280 Sealed Connection System
GT 2.8 Terminal System (Sealed)
© Delphi Corporation. All Rights Reserved
www.delphi.com
Assembly Manual - 33278895
27
PLR REPLACEMENT (Remove PLR) – STEP 1a
PLR REPLACEMENT (Remove PLR) – STEP 1b
REPAIR / REPLACEMENT

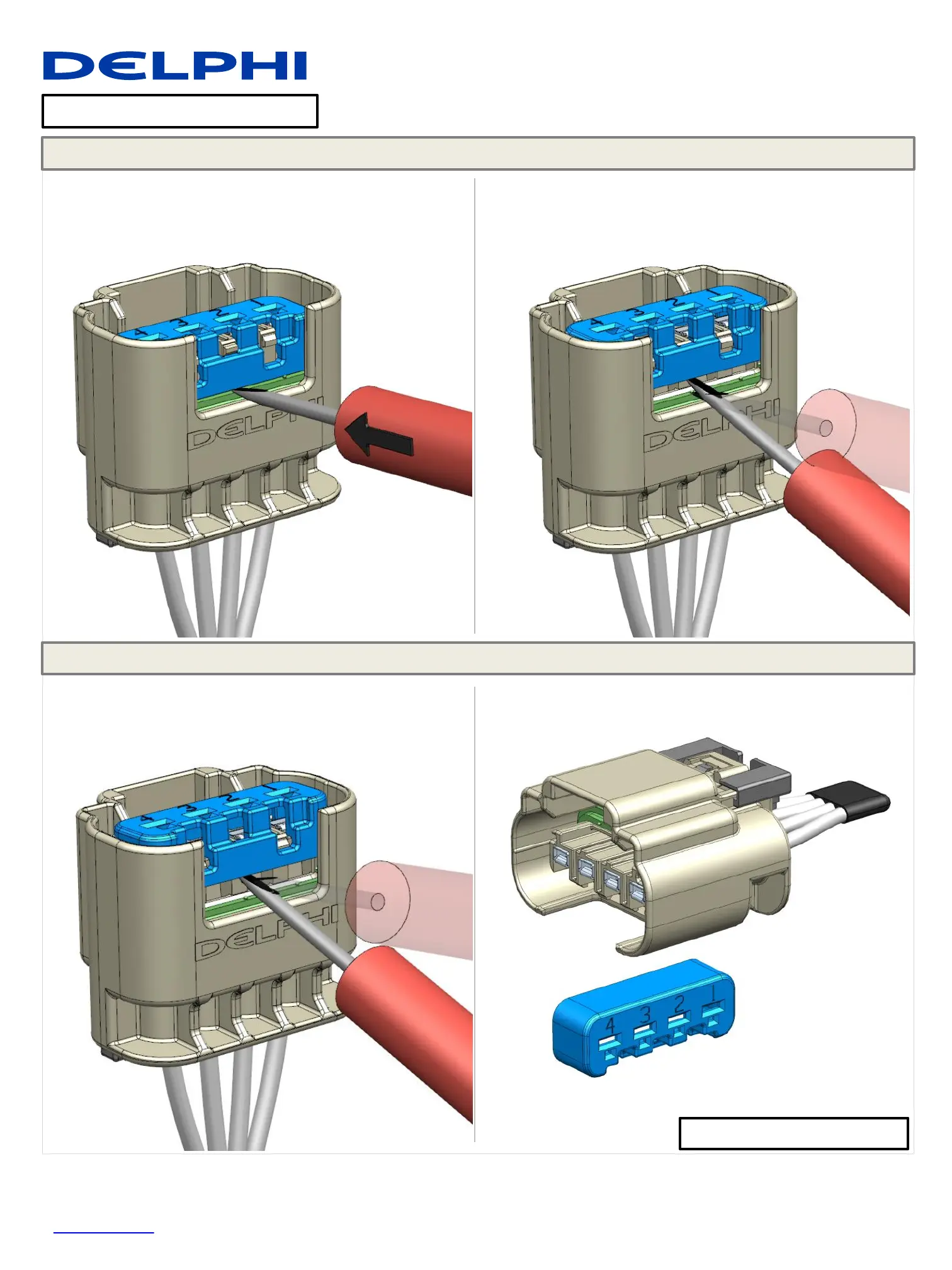

PLACE TOOL 12122647 BETWEEN THE PLR
AND CONNECTOR
ROTATE THE TOOL AND PULL THE PLR UNTIL
IT’S PLACED IN PRE-STAGE POSITION
USE THE SAME PROCEDURE TO REMOVE THE
PLR COMPLETELY
PLR RELEASED
