Delta Controls CON-768 User Manual

Delta Controls
Document Edition 1.4
Page 3 of 7
Product Specifications
Power Requirements
• 24VAC (supplied by the RJ11 Service Tool Port)
• Class II
Ambient Ratings
• 32º to 131º F (0º to 55º C)
• 10 to 90% RH (non-condensing)
Communication Ports
RS-232 Port
• Communications Speed @ 1,200 or 2,400 or 4,800 or 9,600 or 19,200 or 38,400 or 76,800 or 115,200
baud
RS-485 Port
• Communications Speed @ 1,200 or 2,400 or 4,800 or 9,600 or 19,200 or 38,400 or 76,800 baud
Technology
• 8-bit Processor
• Internal A/D, Flash, and RAM
Size (c/w Enclosure)
• 3.5” x 1.7” x 1.0” (8.88 cm x 4.31 cm x 2.57 cm)
Weight (c/w Enclosure)
• 0.15 lb. (65 g.)

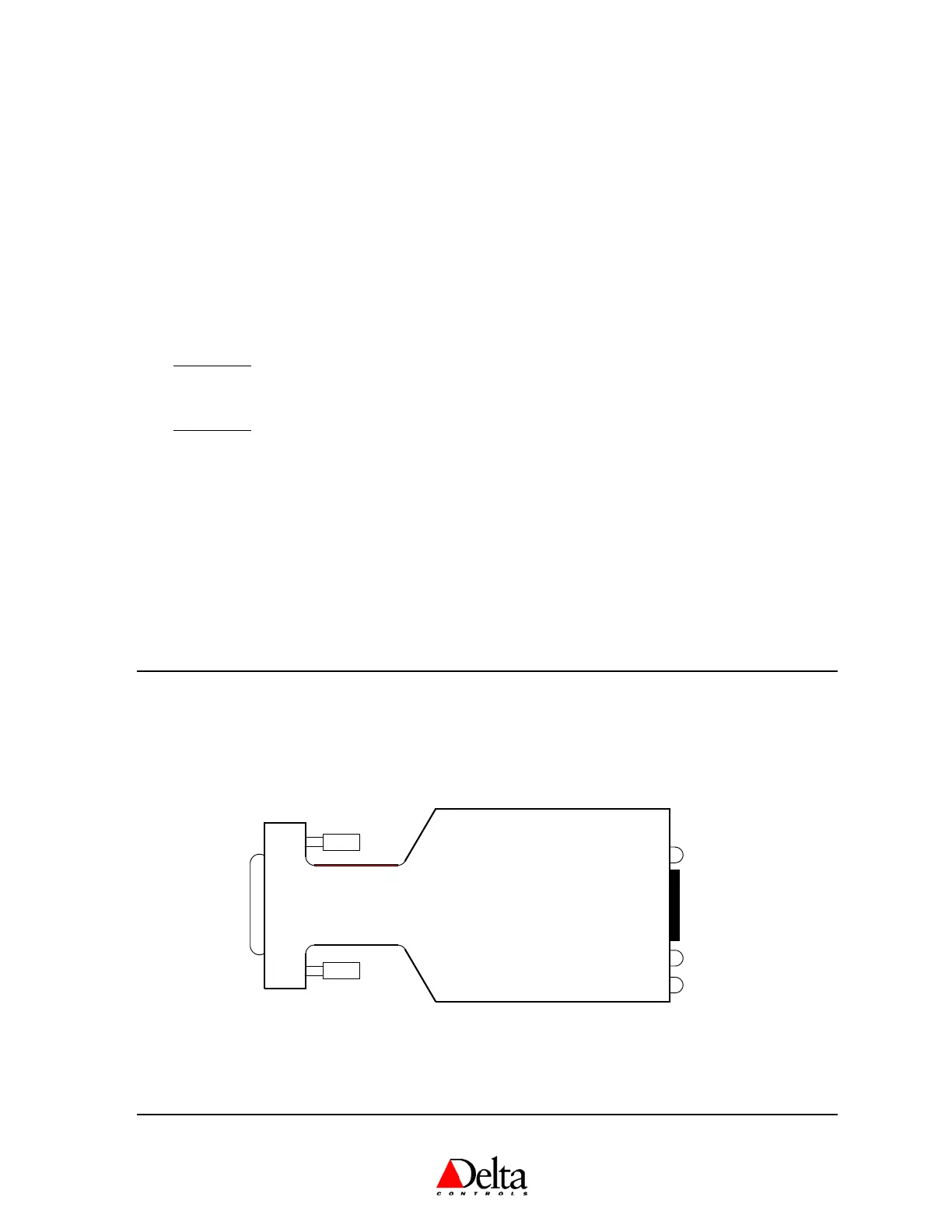

Board Layout (CON-768)
DB9
Serial Port
Connector
Status LED
Transmit LED
Receive LED
RJ-11
RS-485 Connection

Delta Controls CON-768 Specifications

General

Brand	Delta Controls
Model	CON-768
Category	Media Converter
Language	English
