Delta Controls DNT-T103 Installation Guide

Error! No text of specified style in document. DNT-T103 (Rev 4.1) Installation Guide
TERM
NO TERM
NETWORK TERMINATION RESISTOR
This jumper is used to select the termination resistor at each end of each
MS/TP network segment. The diagram to the left shows the factory
default selection of No Term.
Mounting
The BACstat II backplate is designed for mounting directly on standard North American, European or
Australian electrical boxes.

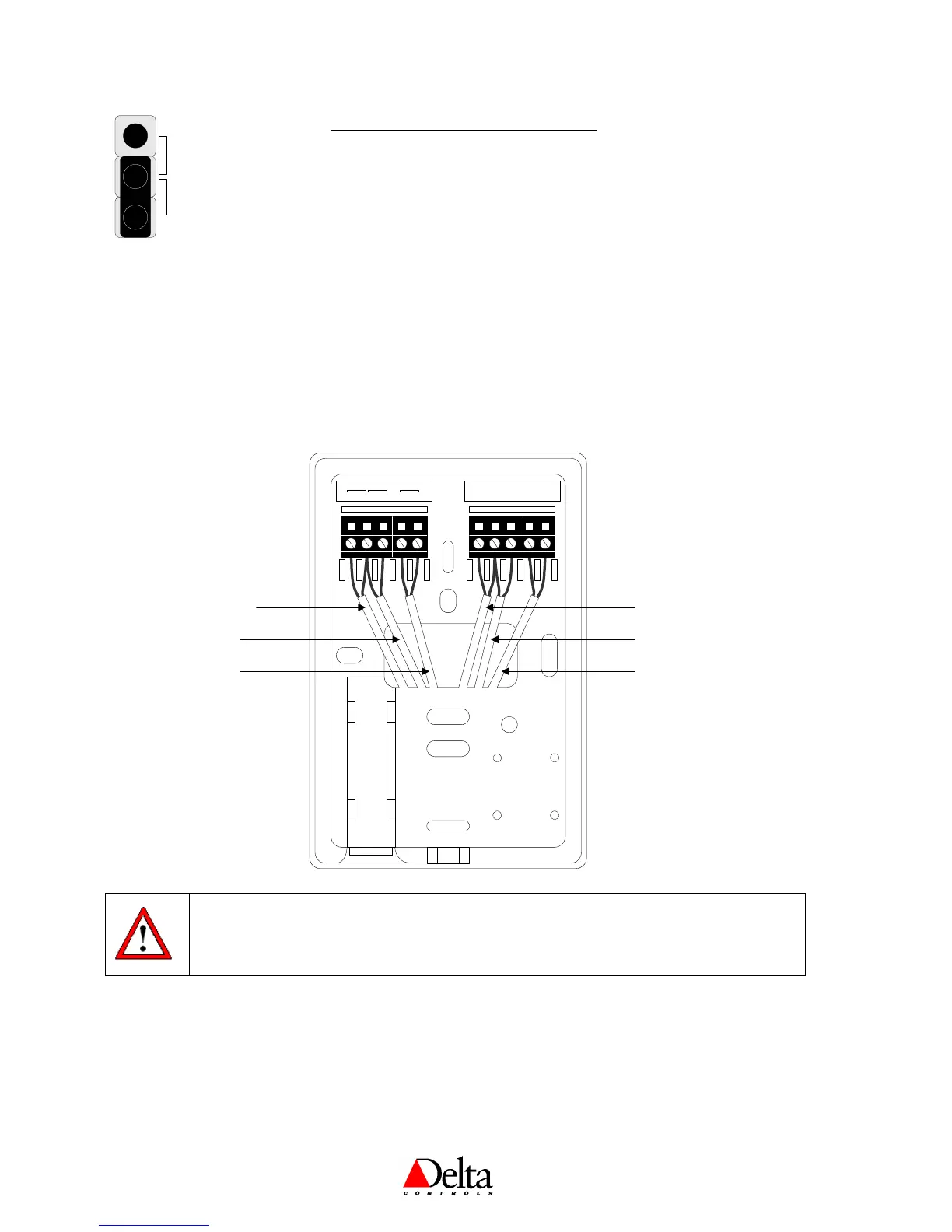

Wiring Diagram
Warning:
The network shield and any other bare wires should be bent back and taped to ensure that they
do not come into contact with the board electronics and cause a short. Otherwise you run the
risk of damaging the BACstat.
24~ GND IP2
+-
PWR NETINPUT
OP1
COM
1&2
OP2
COM
3
OP3
24 VAC Power
Connection
Input 2
Connection
BACKPLATE
Output 1
Connection
Output 2
Connection
Output 3
Connection
Network
Connection
Page 6 of 12
Document Edition 1.9
