CANopen Communication Module DVPCOPM-SL
DVP-PLC Application Manual
11
D register 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
Input data D6036 Multi-function digital output
Output data D6286 Multi-function digital input
4.3 How to Configure Network by Delta CANopenBuilder Software
z Using CANopenBuilder to scan the network

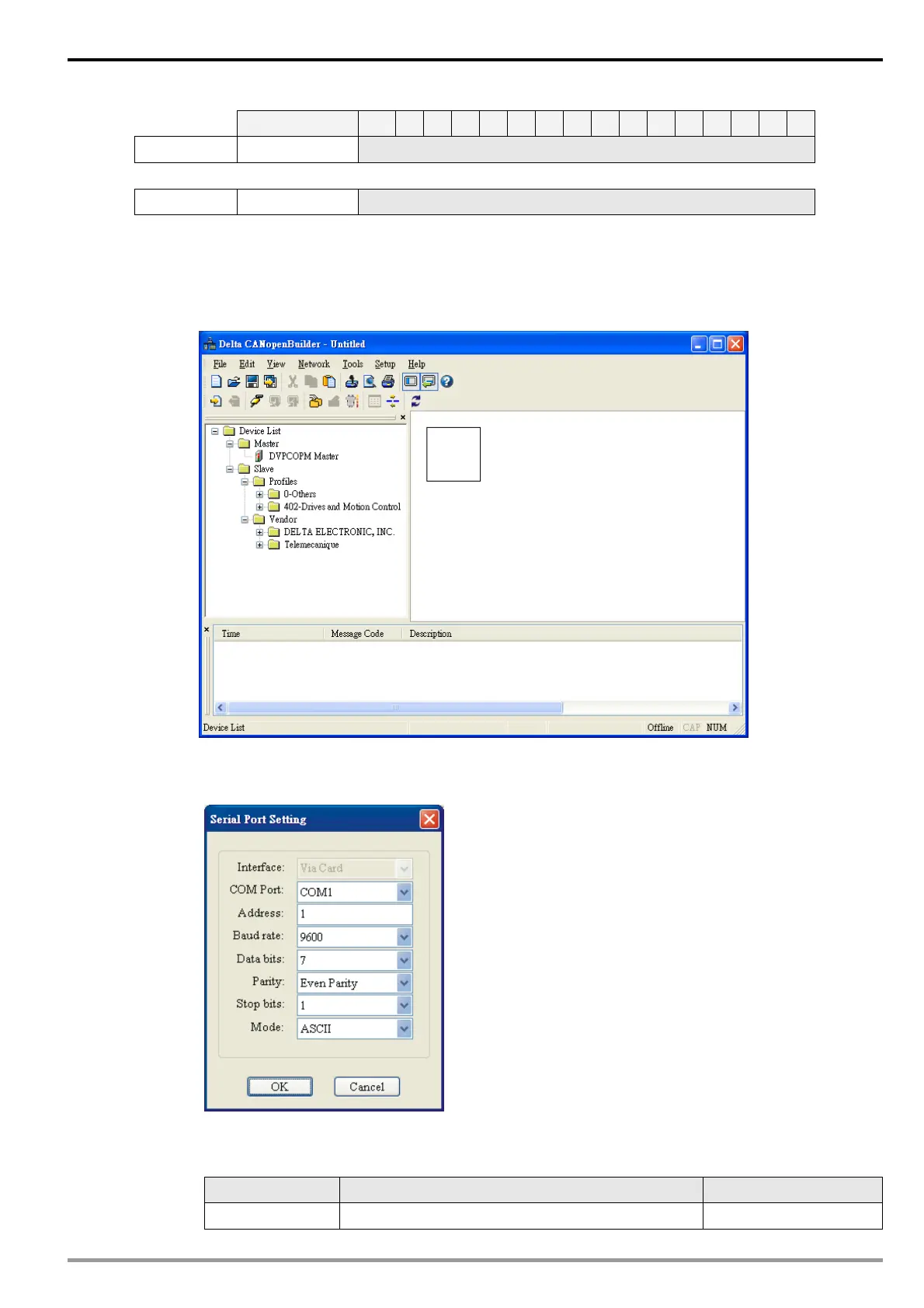

(1) Open CANopenBuilder software, as below:
(2) Select ”Setup” => ”Communication Setting” => ”System Channel”, and the "Serial Port Setting”
dialog box will appear.
(3) Set up the communication parameters in the PC and DVP-SV, e.g. the communication port,
address, baud rate and communication format.
Item Function Default
COM Port COM port on the PC to be used to communicate COM1
