CANopen Communication Module DVPCOPM-SL
DVP-PLC Application Manual
17

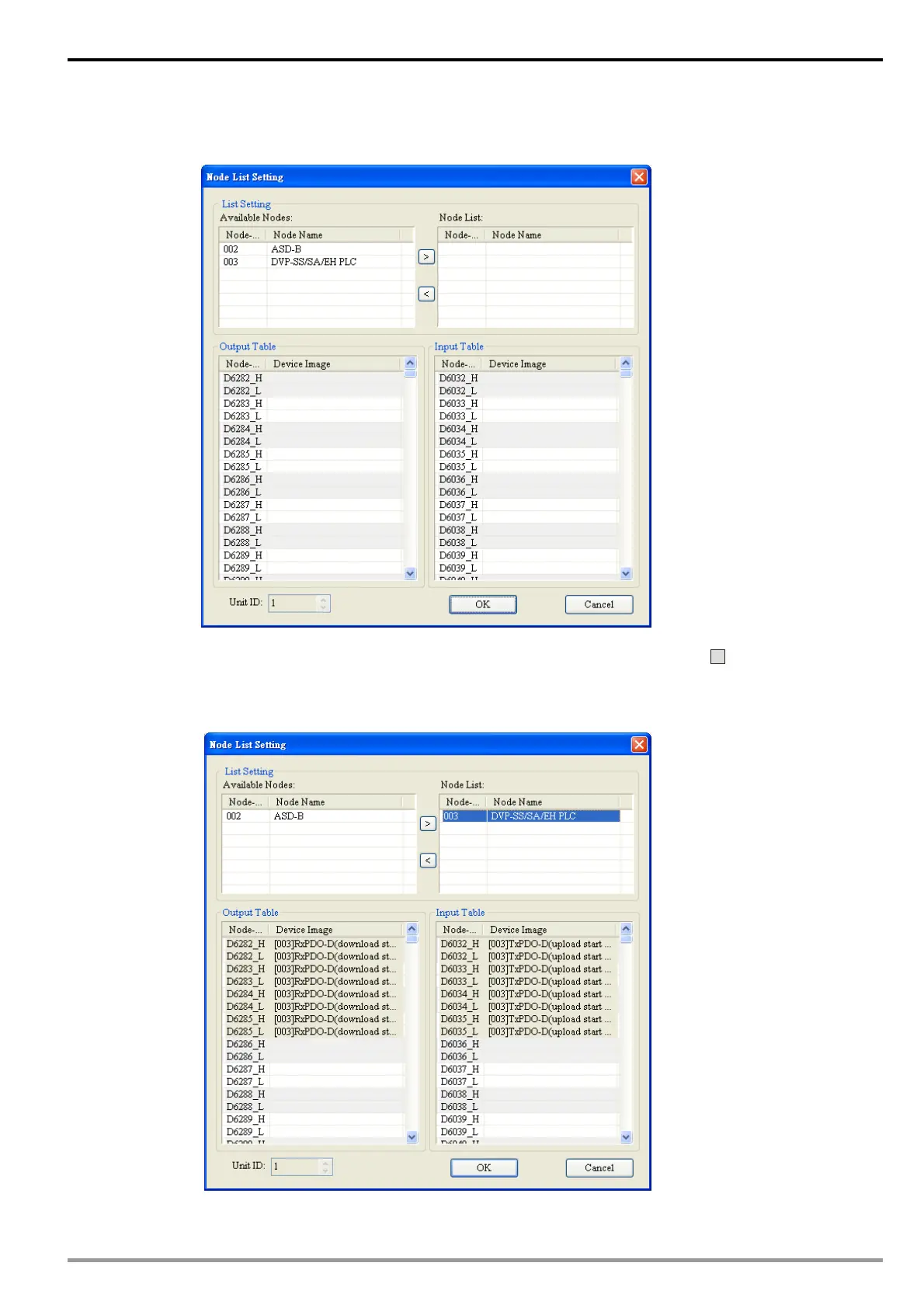

(1) Double click on “DVPCOPM Master” icon, and you will see the “Node List Setting” dialog box as
below.
(2) In this example, first select DVP-SS/SA/EH PLC at Node 003 and click on
>
to add this node into
the node list. After this, select Node 003 in the node list, and you will be able to see how the I/O data
correspond to D registers in DVP-SV from the Output Table and Input Table below.
(3) Add also Node 002 into the node list, and you will be able to see how the I/O data correspond to D
