Step 2
Section 1: Crib Assembly

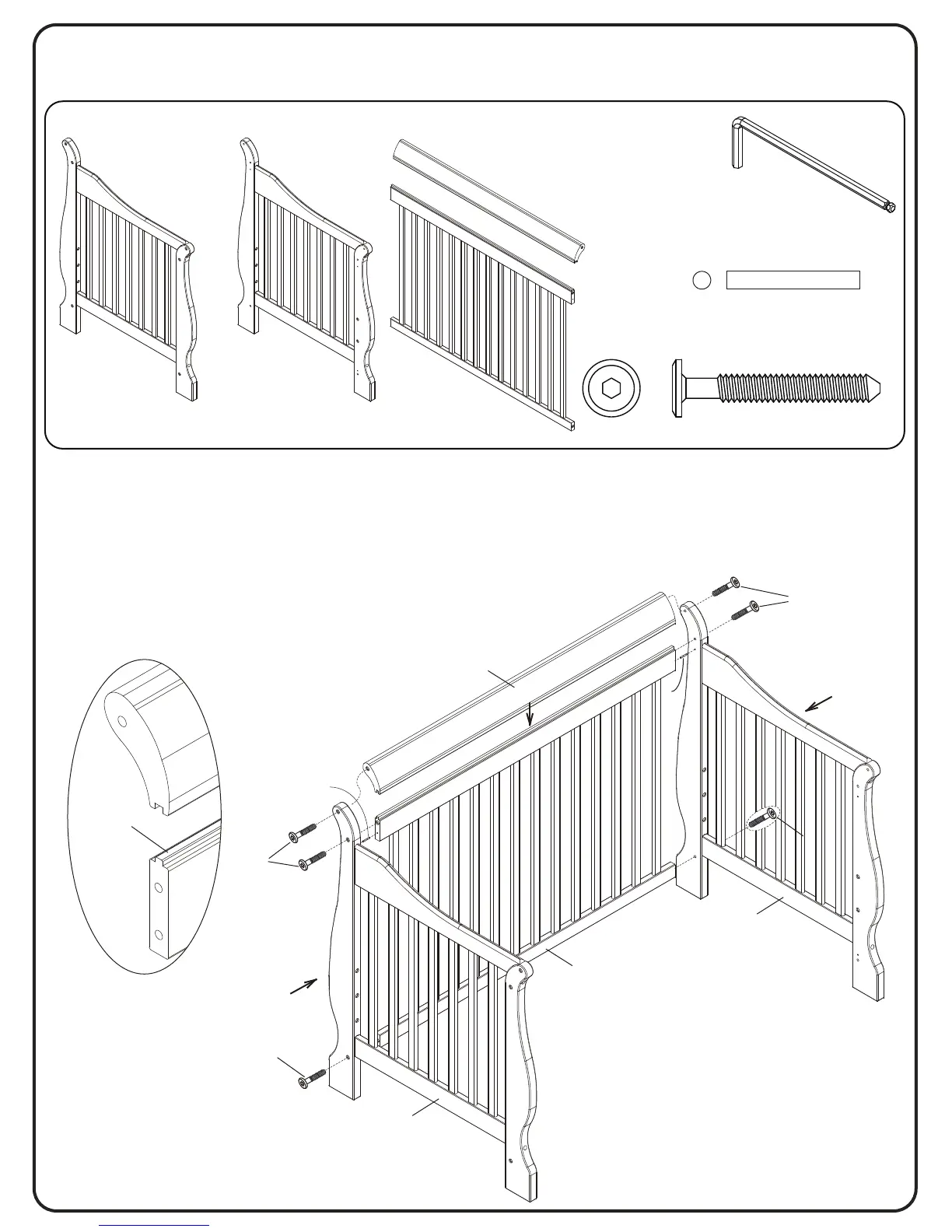

Attach (1) Left Crib End (Part C) and (1) Right Crib End (Part D) to (1) Back Side (Part B) using (4)
M6x45mm Bolts (Part J) and (2) Φ4x30 mm Metal Pin (Part L).
Insert the slot of the Top Rail (Part A) into the tenon on top of the Back Side (Part B), then insert the
M6x45mm Bolts (Part J), through the legs into the flange threaded nuts onto the Top Rail (Part A) as
shown.
Tighten with the M4 Allen Wrench.
NOTE: THE TENON IN PART B MUST FACE UP.
Parts and tools required to complete step.
M4 Allen Wrench
Supplied
J. M6 x 45 mm Bolt x 6
L. Φ4x30 mm Metal Pin x 2
A. Top Rail x 1
B. Back Side x 1
B
D
C
J
J
A
TENON
J
L
L
J
C. Left Crib End x 1
D. Right Crib End x 1
