9
Step 4
Section 1: Crib Assembly
Parts and tools required to complete step.
M4 Allen Wrench
Supplied
From Step 2
J. M6 x 45 mm Bolt x 6
L. Φ4x30 mm Metal Pin x 2
A. Top Rail x 1
E. Front Side x 1

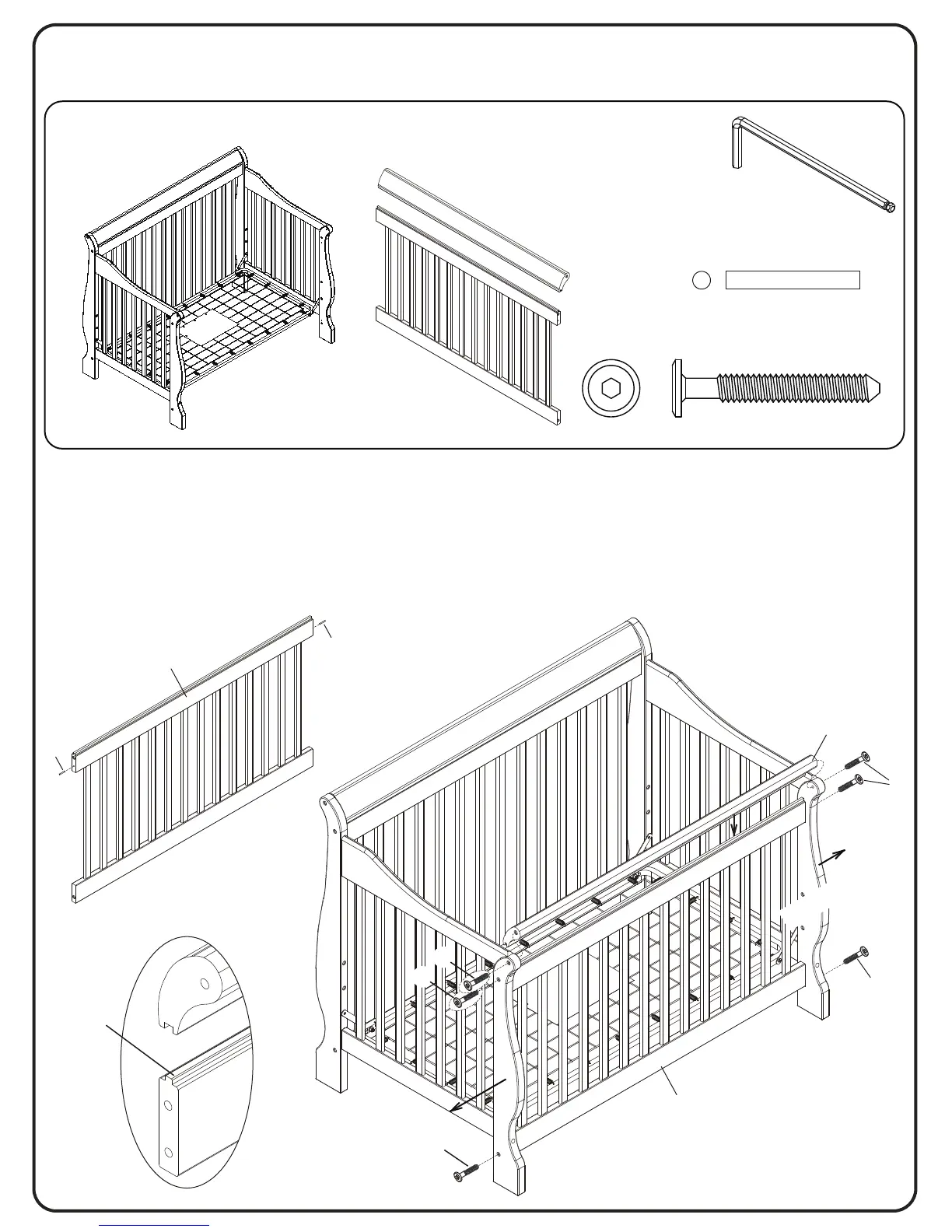

Insert (2) Φ4x30 mm Metal Pin (Part L) into the top hole on each side of the Front Side (Part E),
then attach the Front Side (Part E) to the assemblies from step 2 using (4) M6x45mm Bolts (Part J).
Insert the slot of the Top Rail (Part A) into the tenon on top of the Front Side (Part E), then insert
the M6x45mm Bolts (Part J), through the legs into the flange threaded nuts onto the Top Rail
(Part A) as shown.
Tighten with the M4 Allen Wrench.
TENON
E
L
L
E
J
A
J
J
J
J
NOTE : THE TENON IN PART H MUST
FACE UP.
PULL GENTLY
PULL GENTLY
