10
From Step 4
M4 Allen Wrench Supplied
NOTE : THE TENON IN PART J MUST FACE UP.
J
A
R
A. Top Rail x 1
J. Front Side x 1
V . M6x17mm Barrel Nut x 4
S. M6 x 40 mm Bolt x 2
U. M4x30 mm Metal Pin x 2
V
Tenon
K
U
U
R
R
S

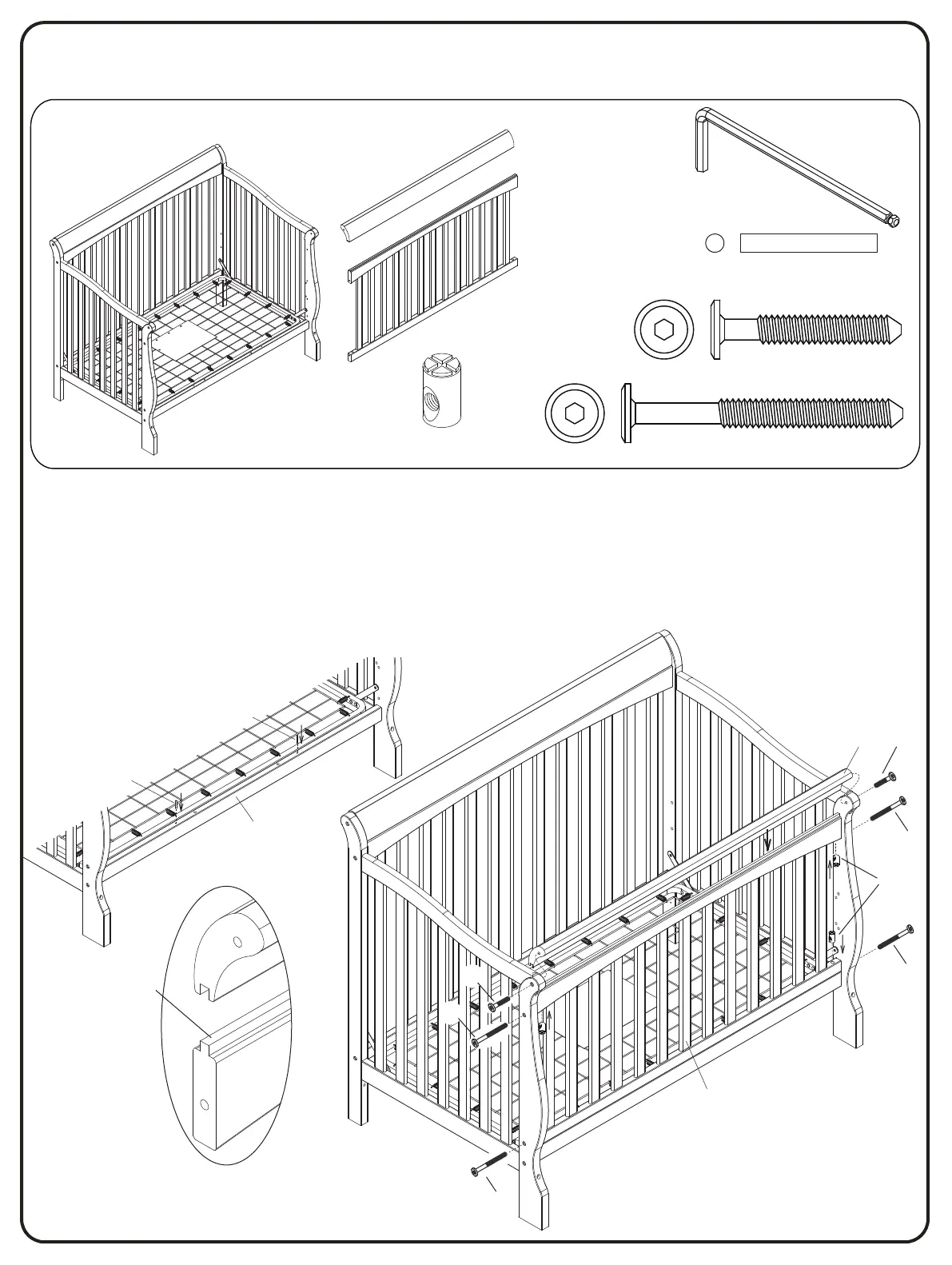

Insert (2) M4x30mm Metal Pin (Part U) into the top hole on Stabilizer Bar (Part K), Then attach the
Front Side (Part J) to the assembly from step 4 using (4) M6x60mm Bolts (Part R) and (4) M6x17mm
Barrel Nuts (Part V).
Insert the slot of the Top Rail (Part A) into the tenon on top of the Front Side (Part J), Then insert the
M6x40mm Bolts (Part S), Through the legs into the flange threaded nuts onto the Top Rail (Part A)
as shown.
Use the Flat Head Screwdriver to hold the Barrel Nut in the proper alignment. Tighten with the M4 Allen
Wrench.
Step 5
Section 1: Crib Assembly
Parts and tools required to complete step.
R. M6 x 60 mm Bolt x 4
R
S
To Next Page
