6
Step 1
Section 1: Crib Assembly
Parts and tools required to complete step.
V. M6 x 17 mm Barrel Nut x 6
C. Left Rear Leg x 1
G. Left Front
Leg x 1
D. Right Rear Leg x 1
H. Right Front Leg x 1
M4 Allen Wrench Supplied

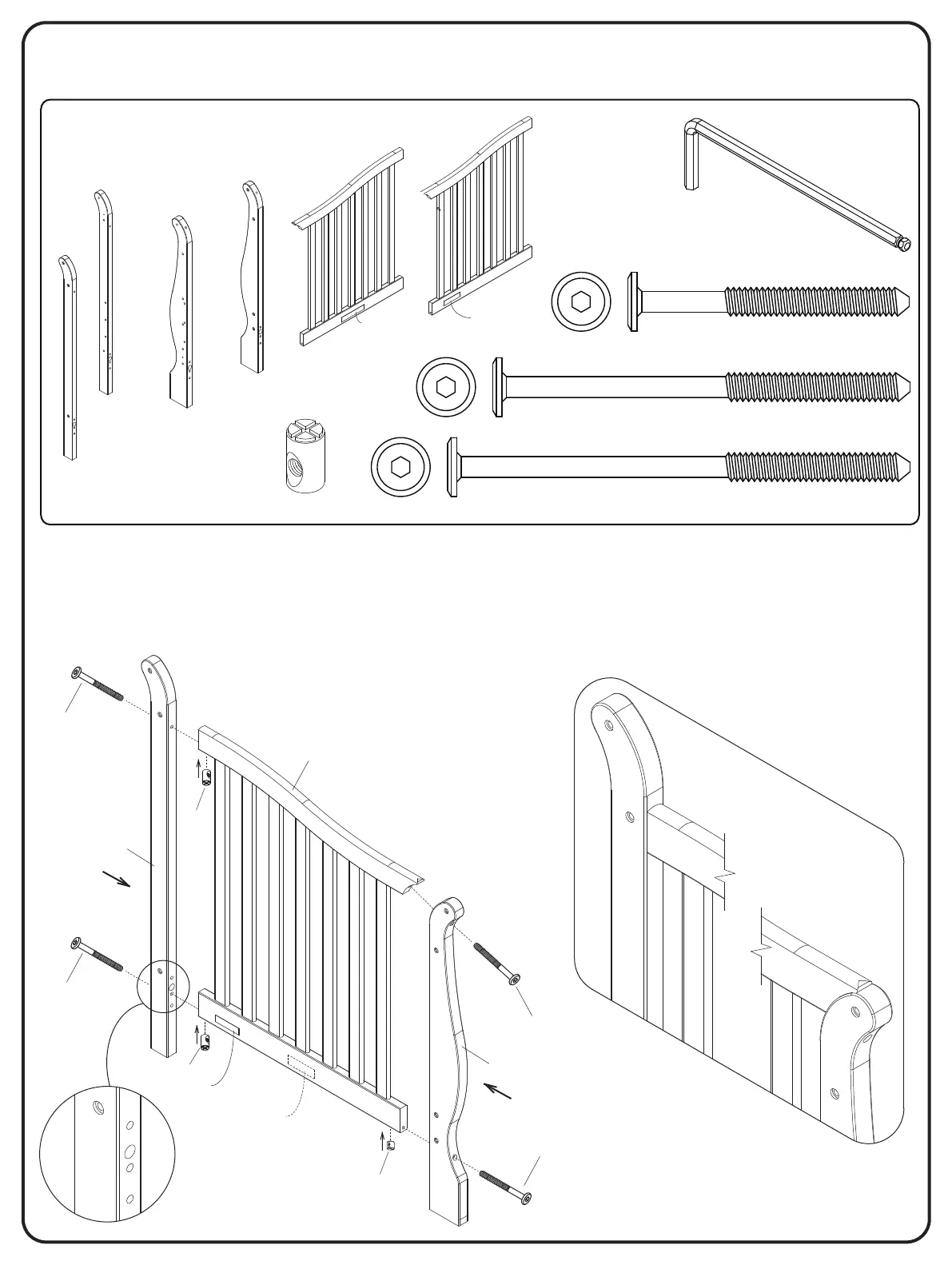

Attach (1) Left Crib End (Part E) to (1) Left Rear Leg (Part C) and (1) Left Front Leg (Part G) using (1)
M6x100mm Bolts (Part M), (1) M6x60mm Bolts (Part R), (2) M6x90mm Bolts (Part N) and (3) M6x17mm
Barrel Nut (Part V). Tighten with the M4 Allen Wrench. Use the Flat Head Screwdriver to hold the
Barrel Nut in the proper alignment. Repeat on the Right Crib End (Part F).
E
C
G
R
M
N
N
Left Crib End
Note: After Assembly, The “Stepped Holes” in both posts are on the same side.
M. M6 x 100 mm Bolt x 2
N. M6 x 90 mm Bolt x 4
R. M6 x 60 mm Bolt x 2
E. Left Crib End x 1
F. Right Crib End x 1
INSIDE
PRODUCT LABEL
OUTSIDE
WARNING LABEL
OUTSIDE
WARNING LABEL
PRODUCT LABEL
L
R
L
R
L
L
V
V
V
To Next Page
