7
From Step 1
M4 Allen Wrench
Supplied

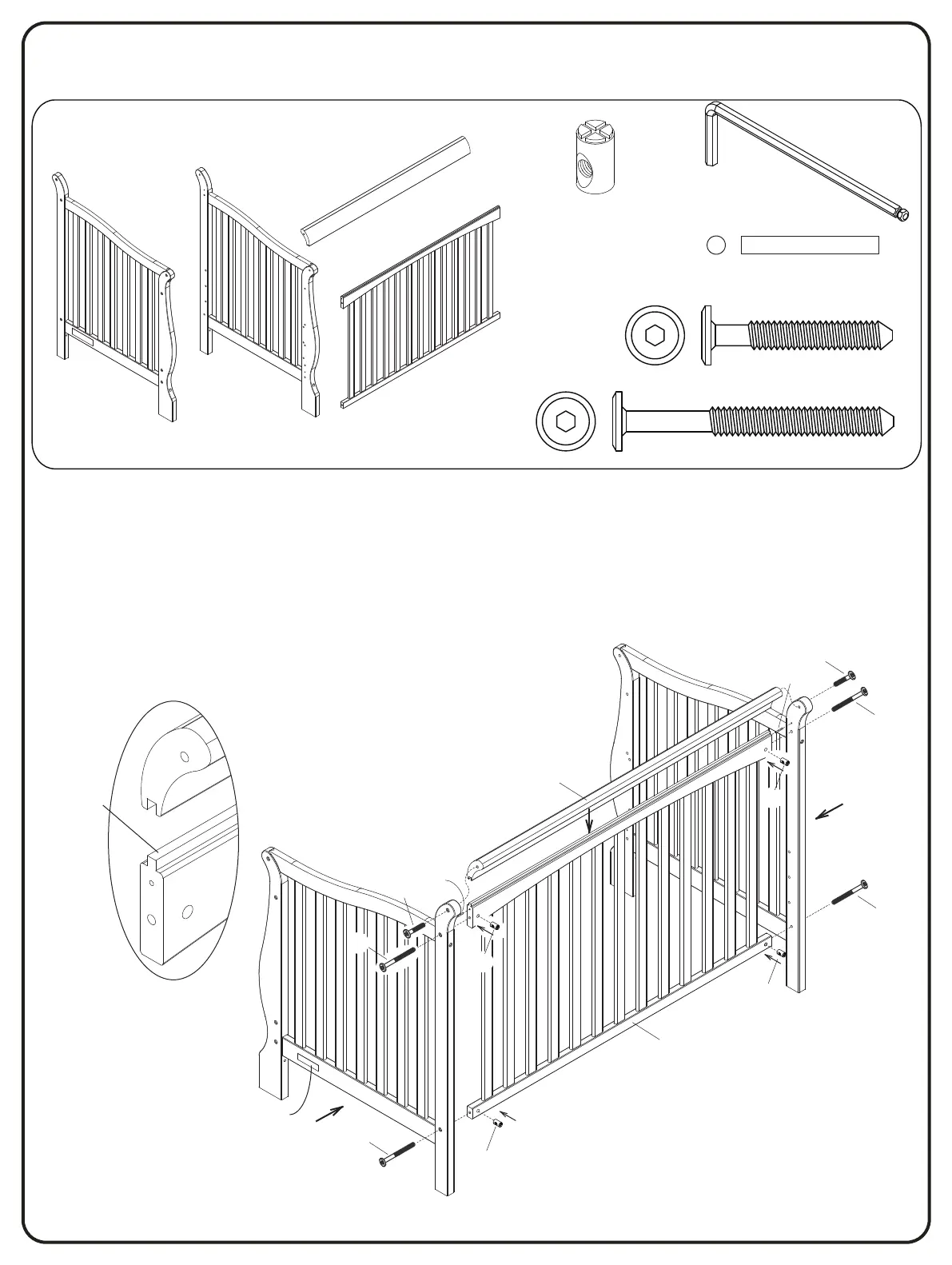

Attach (1) Back Side (Part B) to the assemblies from step 1 using (2) M4x30mm Metal Pins (Part U),
(4) M6x60mm Bolts (Part R) and (4) M6x17mm Barrel Nut (Part V).
Insert the slot of the Top Rail (Part A) into the tenon on top of the Back Side (Part B), Then insert the
M6x40mm Bolts (Part S), Through the legs into the flange threaded nuts onto the Top Rail (Part A)
as shown.
Use the Flat Head Screwdriver to hold the Barrel Nut in the proper alignment. Tighten with the M4 Allen
Wrench.
B. Back Side x 1
Note : The tenon in Part B must face up.
B
A. Top Rail x 1
A
Tenon
S. M6 x 40 mm Bolt x 2
U. M4x30 mm Metal Pin x 2
V . M6x17mm
Barrel Nut x 4
S
R
R
R
S
V
V
U
WARNING LABEL
V
V
Step 2
Section 1: Crib Assembly
Parts and tools required to complete step.
U
R. M6 x 60 mm Bolt x 4
R
To Next Page
