Fig. 9
SUPPORT

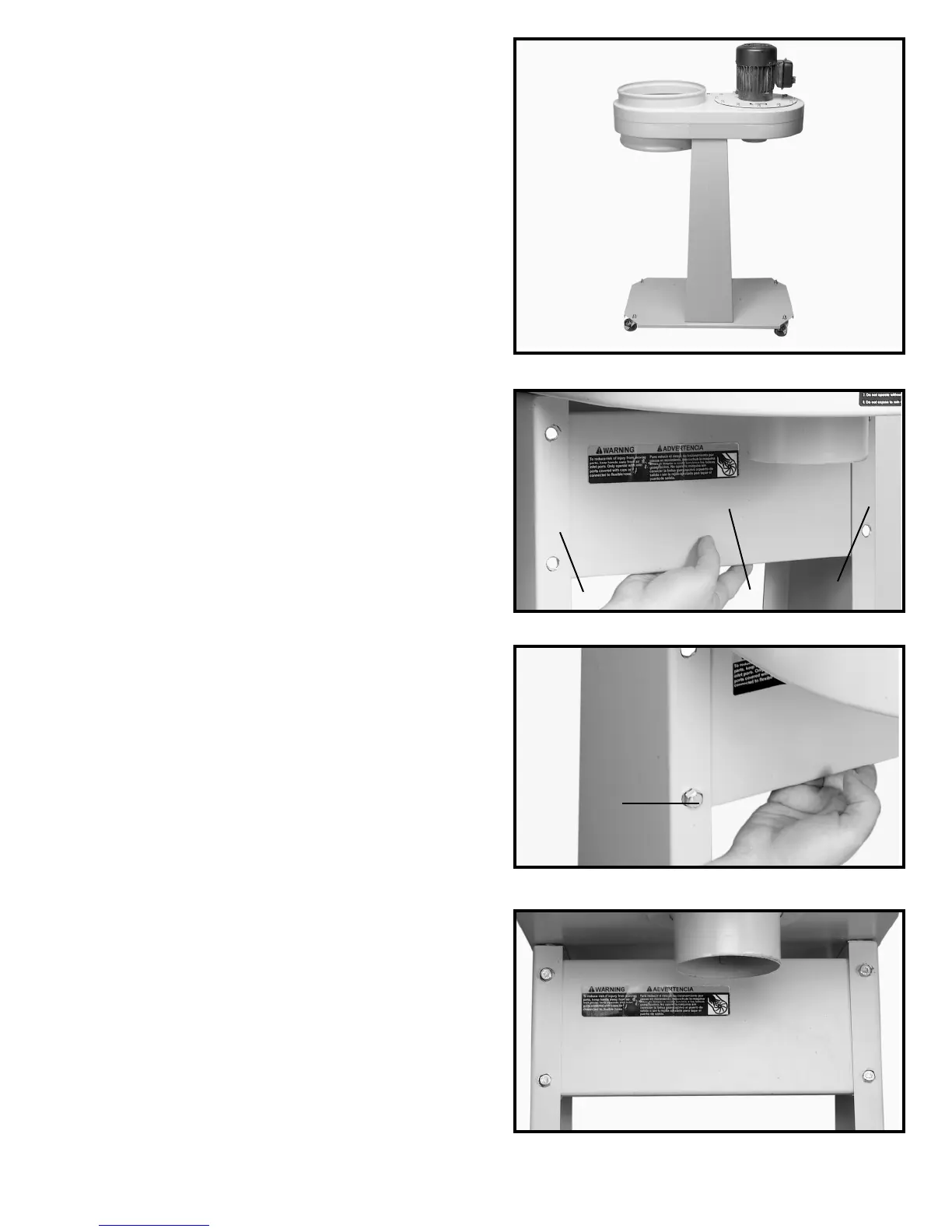

1. Place the support (A) Fig. 10 inside the two side
supports (B). NOTE: MAKE SURE SUPPORT IS
ATTACHED TO THE SIDE SUPPORTS CLOSEST
TO THE MOTOR.
2. Align the four holes in the support with the four
holes in the side supports as shown in Fig. 10.
3. Insert a 5/16-18x3/4" hex head screw (A) Fig. 11,
thru the side supports and the support.
4. Place a 5/16" lockwasher on the hex head screw.
5. Thread a 5/16-18 hex nut on the hex head screw
and tighten securely.
6. Repeat this process for the three remaining holes for
attaching the support.
7. Fig. 12 shows the support attached to the side
supports.
Fig. 10
Fig. 12
Fig. 11
A
B
B
A
