ASSEMBLY TOOLS REQUIRED
1/2” and 9/16” Wrench, Open-End or Socket
ASSEMBLY TIME ESTIMATE
Assembly for this machine takes approximately 1-2 hours.
CASTERS
1. Locate the bag of hardware with the four 3/8 hex
nuts and four 3/8 lockwashers for the four casters.
2. For each wheel, insert bolt from caster through the
holes (A) Fig. 3 in the base of the dust collector
(three are not shown).
3. Place a 3/8 lockwasher (A) Fig. 4 onto each bolt.
4. Thread 3/8 hex nut (B) Fig. 4 onto each of the four
bolts and tighten securely.

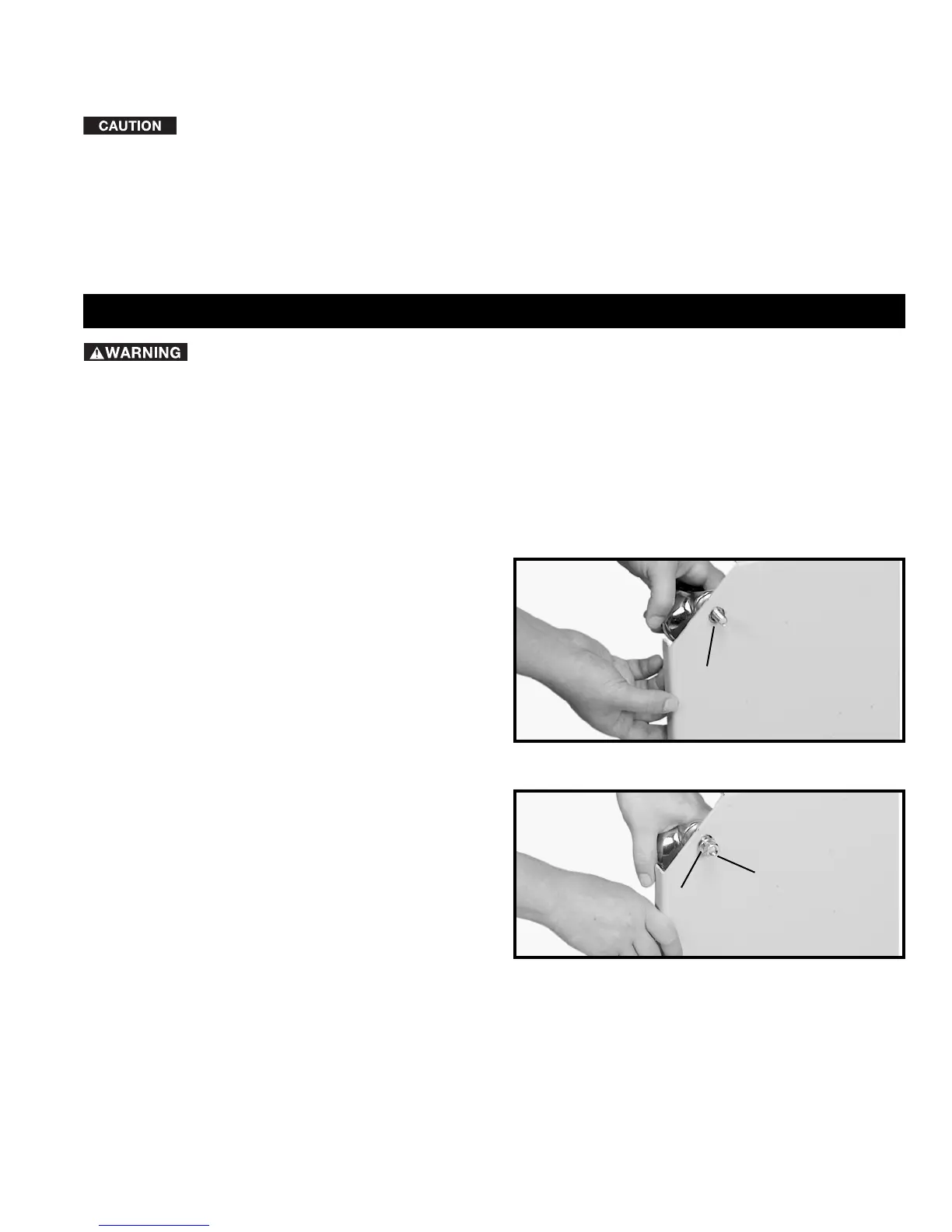

Fig. 3
Fig. 4
A
A
B
ASSEMBLY
For your own safety, do not connect the machine to the power source until the machine is
completely assembled and you read and understand the entire instruction manual.
UNPACKING AND CLEANING
Carefully unpack the machine and all loose items from the shipping container(s). Remove the rust-preventative oil from
unpainted surfaces using a soft cloth moistened with mineral spirits, paint thinner or denatured alcohol.
Do not use highly volatile solvents such as gasoline, naphtha, acetone or lacquer thinner for cleaning your
machine.
After cleaning, cover the unpainted surfaces with a good quality household floor paste wax.
To Next Page
