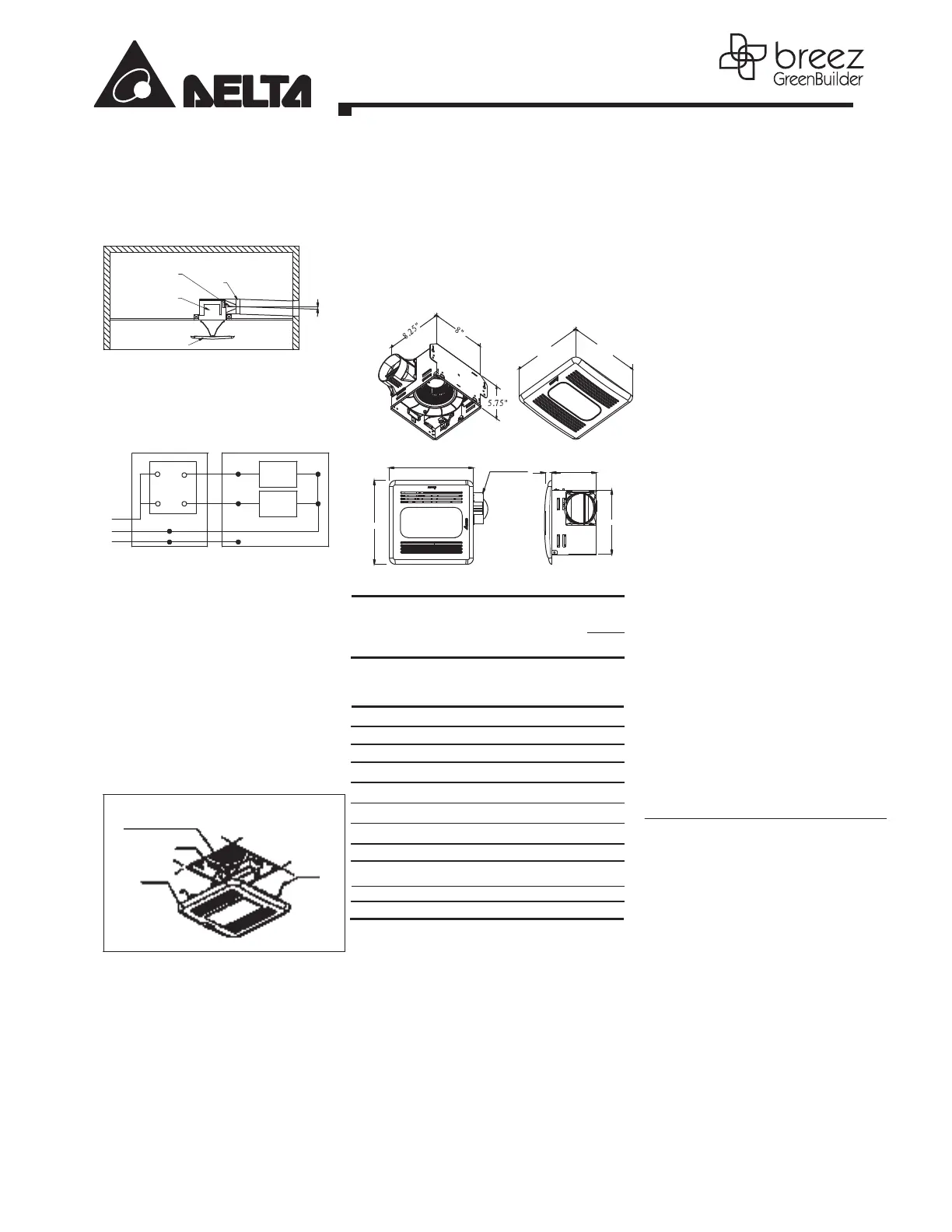

Model No.
Voltage
(V)
Frequen
(Hz)
Power
@ 0.1SP
(W )
Air Flow
@ 0.1SP
(CFM)
Weight
(lb.)
@
0.0SP
(W )
GBR80LED
120
60
11.6
80
6.1
10.0
2. DUCT CONNECTION
2-1. Insert the duct(not provided) into the duct
connector and tape all ductworks connection to
make them secure and air tight.
2-2. Install the duct with a gradient 1°~2° to the
outside.
Inside
Outside
Duct Connector
Tape
3. Do not soak resin parts in water over 60°C.
CLEANING:
1.
Pull down the spring to remove grille.
2.
Clean grille. (Use non-abrasive kitchen
detergent, wipe dry with new cloth.)
3.
Use a cloth dampened with non-abrasive
kitchen detergent, remove dust and dirt from
ventilating fan. W ipe dry with new cloth.
4.
Replace grille.
WARRANTY
DELTA ELECTRONICS THREE YEAR LIMITED
WARRANTY
Delta Electronics Inc. (“Delta Electronics”) warrants
to the original consumer purchaser in the USA that
the Breez ventilation fan products will be free from
defects in material or workmanship. This warranty
is limited to three (3) years from the original date of
purchase.
Ceiling
Body
Grille
Duct
Gradient
1°~2°
DIMENSIONS
Limitations and Exclusions
1.
During the warranty period, a replacement for
any defective product will be supplied free of
charge for installation by the consumer. The
warranty provided herein does not cover charges
for labor or other costs incurred in the
troubleshooting, repair, removal, and installation
service.
3. CONNECT WIRING
3-1. Follow all local electrical and ANSI/NFPA70.
3-2. NEVER place a switch where it can be reached
from a tub or shower.
2.
All returns of defective parts or products must
include the product model number, and must be
made through an authorized Delta Electronics
distributor. Authorized returns must be shipped
prepaid. Repaired or replacement products will
be shipped by Delta Electronics F.O.B. shipping
poin
t.
3.
Delta Electronics shall not be liable for any
indirect, incidental, consequential, punitive, or
special damages arising out of or in connection
with products use or performance, regardless of
the form of action whether in contract, tort
(including negligence), strict product liability or
otherwise.
4.
This warranty does not extend to fluorescent
lamp starters and tubes.
3-3. Connect wires as shown in wiring di
agrams.
3-4. Use wire nuts (not provided) and connect house
power cable to ventilating fan.
3-5. 14 AW G (2.1 mm
2
) is the smallest conductor that
shall be used for branch-circuit wiring.
4. TEST RUN & GRILLE ATTACHMENT
4-1. Insert the LED lighting connecting into the power
socket of main body as below shown.
4-2. When the power on, check for abnormal
vibration or sound.
4-3. Insert the mounting springs into the slots and
mount the grille to the fan unit.
Lighting Connector
SPECIFICATIONS-FAN
Note: Design and specifications subject to change without notice.
SPECIFICATIONS-LED LIGHT ENGINE
ITEM
SPEC.
DIMENSION（INCH）
8L×4.4W×1.4H
POWER CONSUMPTION（W ）
11
CORRELATED COLOR
TEMPERATURE (K)
2700
LIGHT SOURCE LIFE（HOURS）
30000（MIN.）
TRANSIENT PROTECTION
CLASS A
OPERATING FREQUENCY（HZ）
120
FCC QUALIFIED
YES
ENERGY QUALIFIED
YES
5.
The warranty does not cover if user does not
comply with manufacture’s installation manual.
6.
To qualify for warranty service, you must notify
Delta Electronics at the address or telephone
number below.
7.
Delta Electronics shall have no liability to the
original owner-user with respect to any defect
caused by abuse, misuse, neglect, improper
transportation or storage, improper testing,
improper installation, improper operation,
improper use, improper maintenance, improper
repair, improper alteration, improper
modification, tampering or accident of products
or parts thereof, or unusual deterioration or
degradation of products or parts thereof due to a
physical environment beyond the requirements
of products’ specifications.
Address: 4405 Cushing Parkway,
Fremont, CA
94538
US Toll Free Number: 1-888-979-9889
ROHS QUALIFIED
YES
SAFETY REQUIREMENTS UL/cUL
5. OPERATION
5-1. Turn on the power switch to operate ON or OFF,
and LED indicator is green.
6. MAINTENANCE
WARNING:
Disconnect power source before working on unit.
Routine maintenance must be done every year.
CAUTION:
1.
Never use gasoline, benzene, thinner or any
other such chemicals for cleaning the ventilating
fan.
2.
Do not allow water to enter motor.
(BLK)
FAN
WHTBLK
FAN
SWITCH
BLK
WHT
GRD
LIGHT/FAN ELECTRICAL BOX
LINE
IN
HOUSE ELECTRICAL BOX
(BLUE)
LIGHT
WHTBLU
LIGHT
SWITCH
Spring
Slots
Grille
8
"
8
.
2
5
"
5 .7 5 "
10.75"
10.75"
4" DUCT
10.75"
10.75"
8.25"
5.75"
0.84”
