ASSEMBLY INSTRUCTIONS

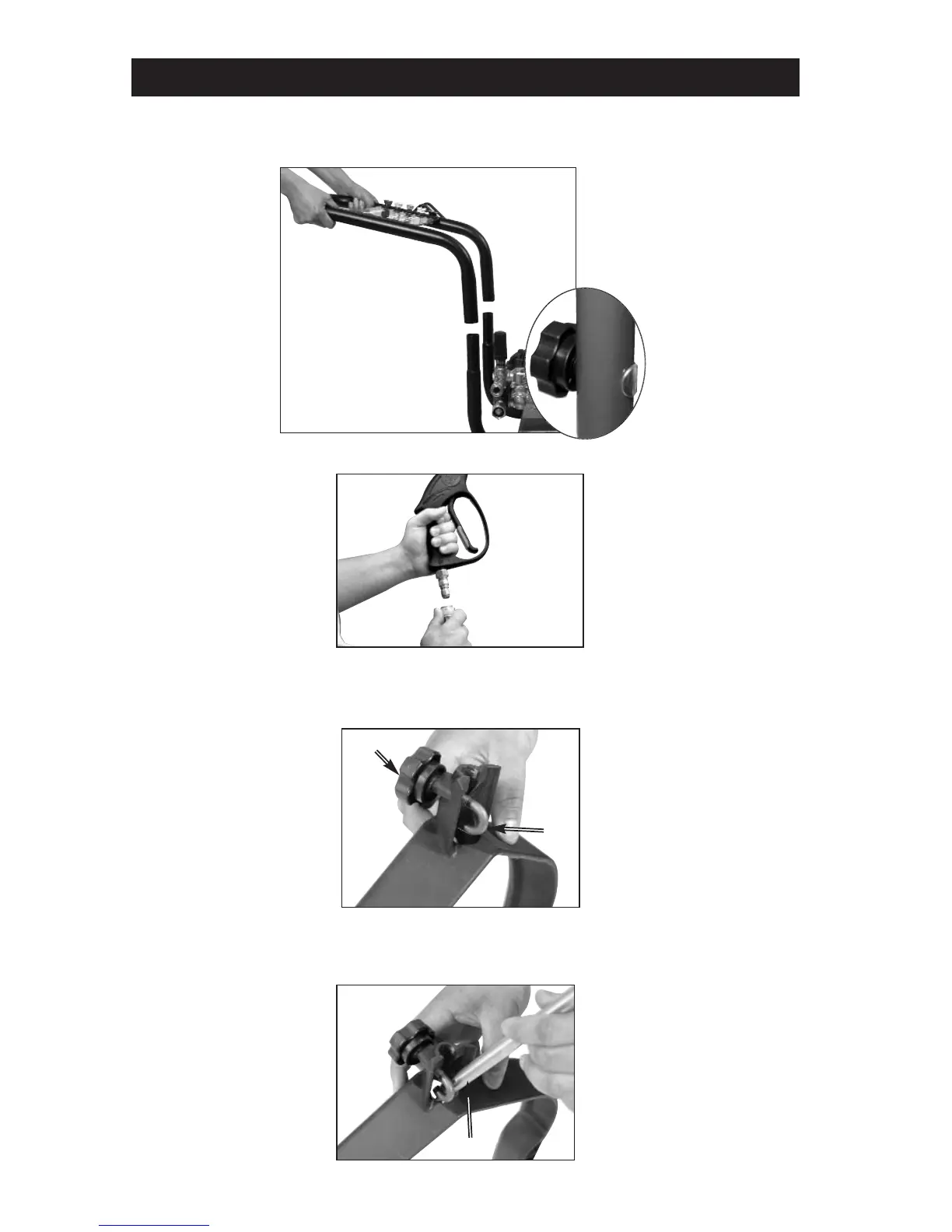

2. Attach high pressure hose to gun. Tighten securely.
1. Place handle assembly onto frame and connect handle to frame.
3. To Assemble "Water Vroom" surface cleaning guide. NOTE: If not using the
"Water Vroom" surface cleaning guide proceed to step 4.
a. Loosen knob (a) and rotate "J" hook (b) down and out of the way.
b. Slide spray wand (c) through opening in surface cleaning guide.
IMPORTANT: Make sure nozzle is removed before assembling surface
cleaning guide.
a
b
c
