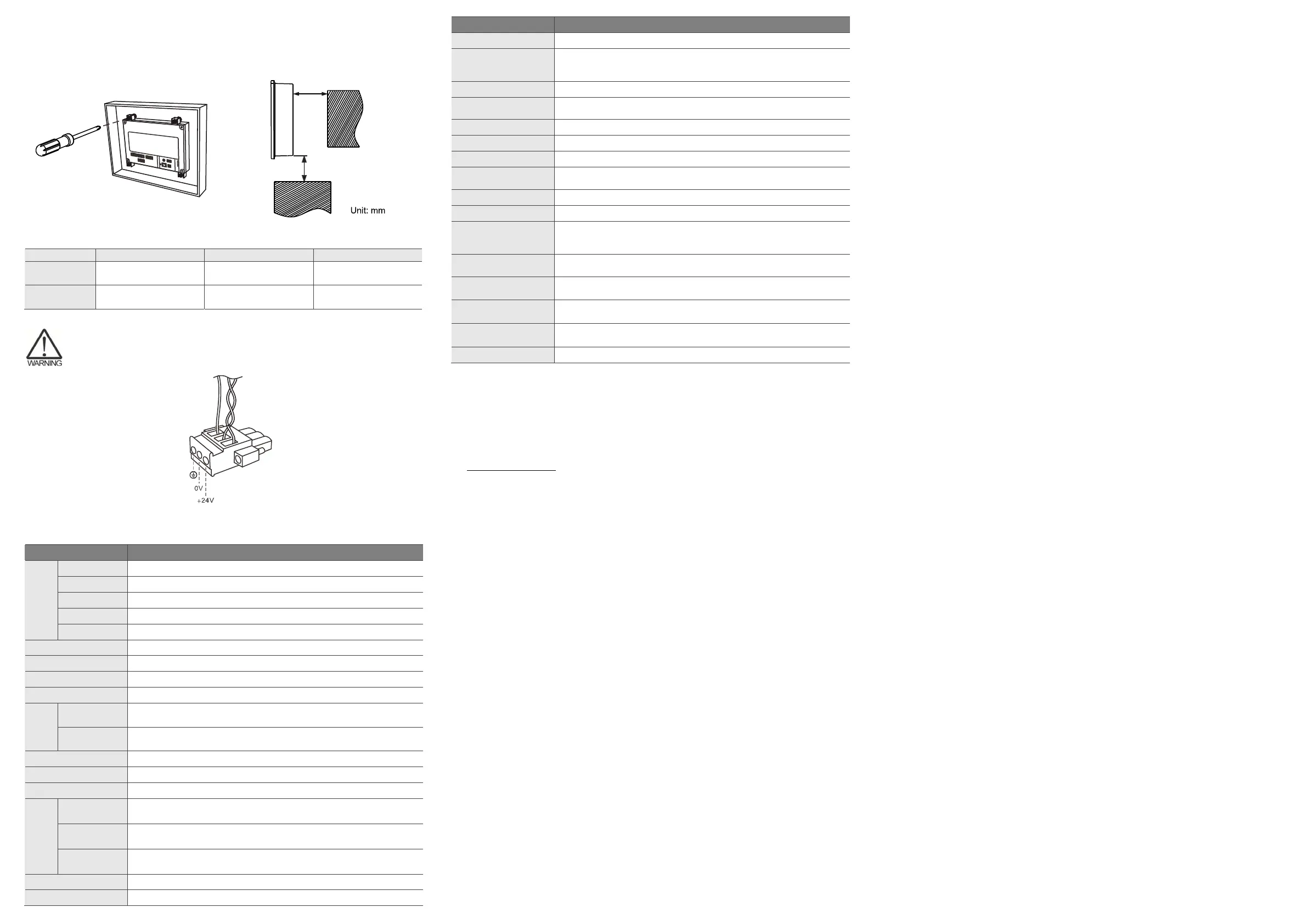

Step 3:
Tighten the screws with the torque between
0.5 N-M and 0.7 N-M to avoid damage to the
plastic case.
DOP-110IS torque: 6.17 lb-inch (0.7 N-M)
Step 4:
For heat dissipation, keep a minimum clearance of
60 mm (2.36 inches) and 45 mm (1.77 inches)
respectively on the rear and bottom of the HMI.
60
45
Wiring:
Type Wire gauge (AWG) Stripped length Torque
Solid
24 - 12
7 - 8 mm
(0.28 - 0.31 inches)
5 kg-cm (4.3 lb-in)
Stranded
24 - 12
7 - 8 mm
(0.28 - 0.31 inches)
5 kg-cm (4.3 lb-in)
Refer to the following diagram when wiring the power connector. The temperature rating of
the cable must be greater than 75°C (167°F).
(6) Hardware specifications
Model
DOP-110IS
Display
Panel type 10.1" TFT LCD (65535 colors)
Resolution 1024 x 600 pixels
Backlight LED backlight
(half-life under room temperature 25°C > 20,000 hours)
*2
Display range 226 x 128.7 mm
Brightness 300 cd/m² (Typ.)
CPU ARM Cortex-A8 (800 MHz)
Flash ROM 256 Mbytes
RAM 256 Mbytes
Touchscreen 4-wire resistive touchscreen > 10,000,000 operated
Audio
output
Buzzer Multi-tone frequency (2 - 4 kHz) / 80 dB
AUX Stereo output
Network interface 1-port 10/100 Mbps auto-detection (with built-in isolated power circuit)
*2
USB 1 USB slave Ver 2.0; 1 USB host Ver 2.0
SD SD card (supports SDHC)
Serial
communication
port
COM1 RS-232 (supports flow control)
*2
COM2 RS-232 (supports flow control) / RS-422 / RS-485
*2
COM3 RS-232 / RS-422 / RS-485
*2
Auxiliary function key N/A
Calendar Built-in
Model DOP-110IS
Cooling method Natural cooling
Approvals
CE / UL
(use shielding network cable and magnetic ring with the filter of 300 ohm /
100 MHz)
Panel waterproof level IP65 / NEMA4 (indoor use only)
Operation voltage
*2
DC +24V (-15% to +15%) (use an isolated power supply)
Supplied by Class 2 or SELV circuit (isolated from MAINS by double insulation)
Leakage current 500 V
AC
for 1 minute (between DC24V terminal and FG terminal)
Power consumption
*3
9.6 W (Max.)
*3
Backup battery 3V lithium battery CR2032 x 1
Backup battery life
About 3 years or more at 25°C (77°F)
(subject to operation temperature and condition)
Operation temperature 0°C to 50°C (32°F to 122°F)
Storage temperature -20°C to +60°C (-4°F to 140°F)
Operating environment
10% to 90% RH [0 to 40°C (32 to 104°F)],
10% to 55% RH [41 to 50°C (105.8 to 122°F)];
pollution degree: 2
Vibration resistance
Conforms to IEC61131-2: continuous vibration 5 Hz - 8.3 Hz with amplitude
3.5 mm; 8.3 Hz - 150 Hz with amplitude 1G
Shock resistance
Conforms to IEC60068-2-27: 11 ms, 15 G Peak, in X, Y, Z directions each
for 6 times
Dimensions
(W) x (H) x (D) mm
272.6 x 200.6 x 54
Mounting dimensions
(W) x (H) mm
261.3 x 189.3
Weight Approx. 1130 g
Note:
1. The half-life of the backlight is defined as the maximum luminance being reduced by 50% when the maximum drive
current is supplied to the HMI. The life of LED backlight shown here is estimated at the room temperature of 25°C
(77°F) with ambient humidity.
2. The withstand voltage of the isolated power circuit is 1500V peak for 1 minute.
3. The HMI power consumption is the power consumed when the HMI is not connecting with other peripheral devices.
To ensure normal operation of the HMI, the recommended capacity of the power supply is 1.5 to 2 times of the
specified power consumption.
4. Isolated power supply is recommended.
5. For the programming software DOPSoft of DOP-100 series and its user manual, you can download them at
http://www.delta.com.tw/ia.
6. DOP-100 series can be used with other industrial automation equipment. Read through this sheet carefully and install
the product according to the instructions to avoid danger.
