English-4
Power Line Installation
The specifications for power terminal wiring are shown in the table below:
Type Wire Gauge (AWG) Stripped length Torque
Solid 28~12 7~8 mm 5 kg-cm (4.3 lb-in)
Stranded 28~12 7~8 mm 5 kg-cm (4.3 lb-in)
The specifications for communication terminal wiring are shown in the table below (AS Series only):
Type Wire Gauge (AWG) Stripped length Torque
Solid 30 ~ 16 5 ~ 6 mm 2 kg-cm (1.7 lb-in)
Stranded 30 ~ 16 5 ~ 6 mm 2 kg-cm (1.7 lb-in)

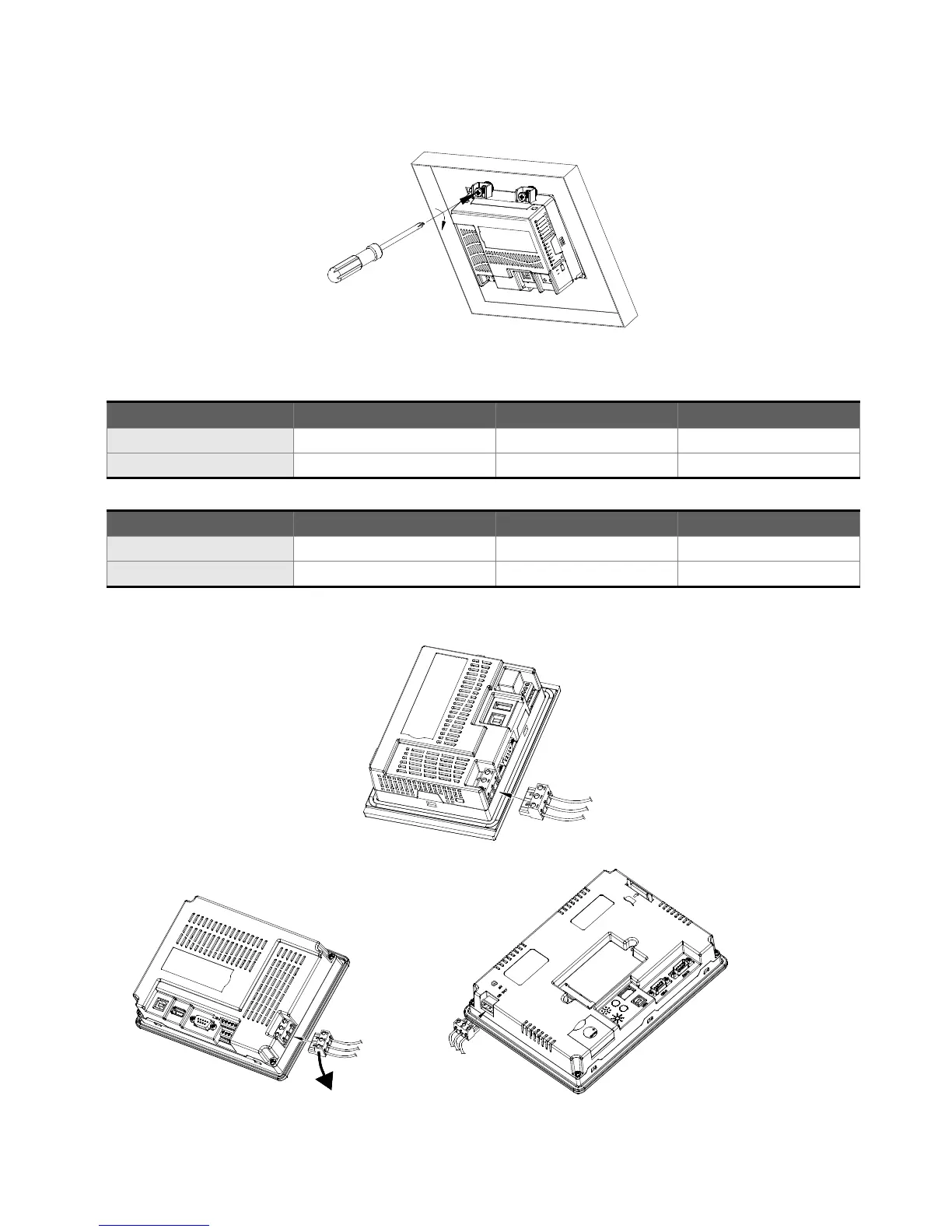

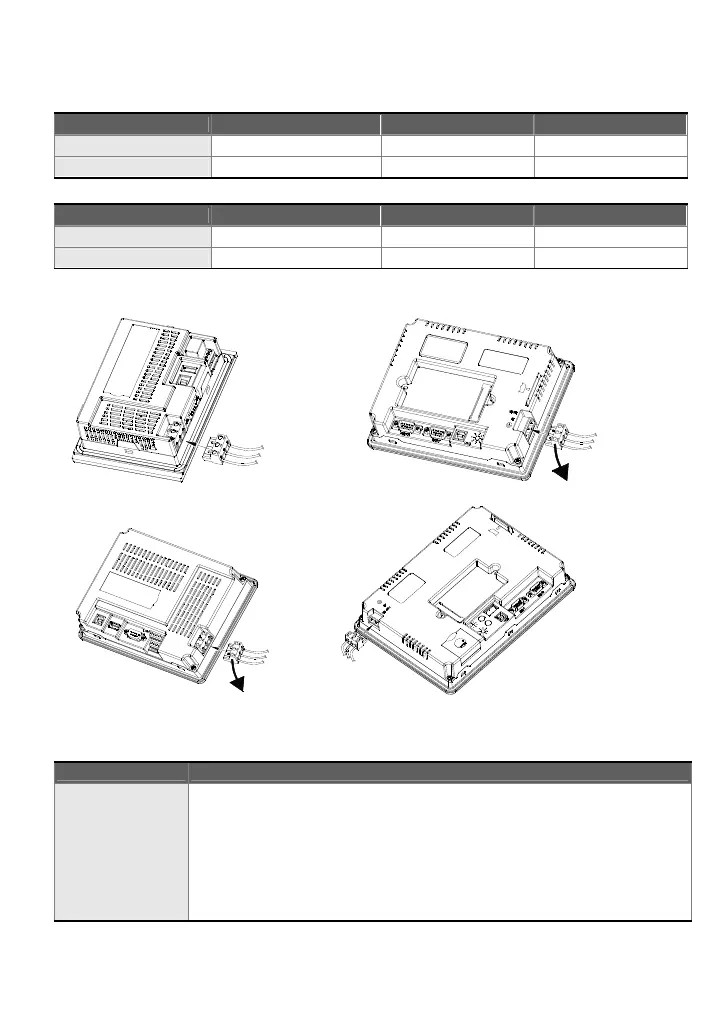

Be sure to plug power line into HMI according to following arrow direction.
Basic Inspection
Item Content
General Inspection
Periodically inspect the screws of the connection between the HMI and device.
Tighten screws as necessary as they may loosen due to vibration and varying
temperatures.
Ensure that oil, water, metallic particles or any foreign objects do not fall inside the
HMI, control panel or ventilation slots and holes. As these will cause damage.
Ensure the correct installation and the control panel. It should be free from
airborne dust, harmful gases or liquids.
DOP-A80THTD1
DOP-AE80THTD
DOP-A(E)10THTD1
DOP-AS35THTD
DOP-AS38BSTD
DOP-A(E)57G(B)(C)STD
DOP-AS57BSTD
