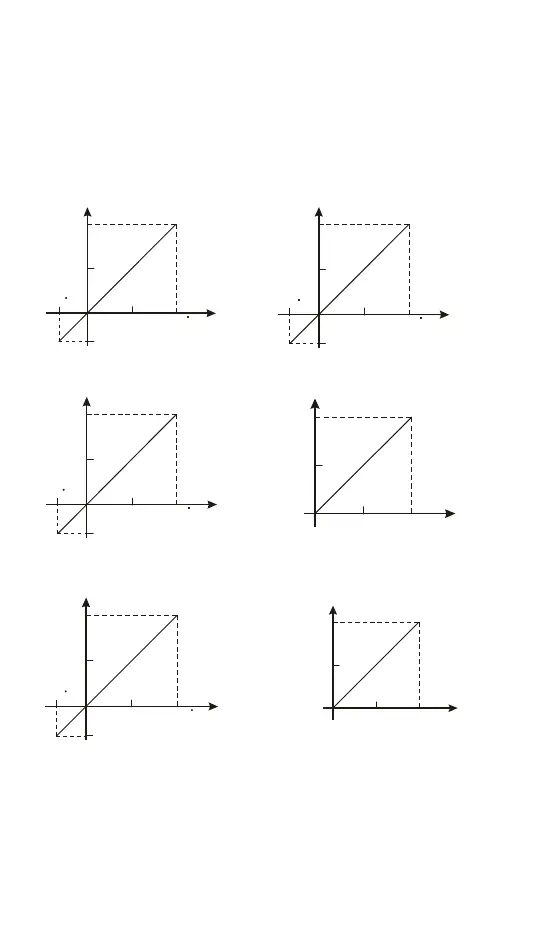

 Adjust PT Conversion Curve
Users can adjust the conversion curves according to the actual needs by changing the
Offset value.
Offset in DVP04/06PT-E2: Deviation digital value from the target value.
(Measured Value= Original Value – Adjust Value Offset)
 Mode0 ~ Mode3, Mode6 ~ Mode9 : 0.1˚
 Mode4 ~ Mode5: 0.1Ω
 Mode 0：  Mode 3：
+8,000
+4,000
-1,800
+800
-180
+4000
C
C
Digital output
Measured
temperature input
+3,380
-1,120
+338
-112
0
F
F
Digital output
Measured
temperature input
 Mode 1:  Mode 4:
+1,700
-800
+170
-80
0
C
C
Digital output
Measured
temperature input
+3,000
300
0
Ω
Digital output
Measured input
impedance
 Mode 2:  Mode 5:
+14, 720
+7,360
-2,920
+1,472
-292
+7360
F
F
Digital output
Measured
temperature input
+30,000
3,000
0
Measured
Inpu t
Impedance
D i g ita l Outp u t
Ω
