DVP-ES3 Series Operation Manual
6-10

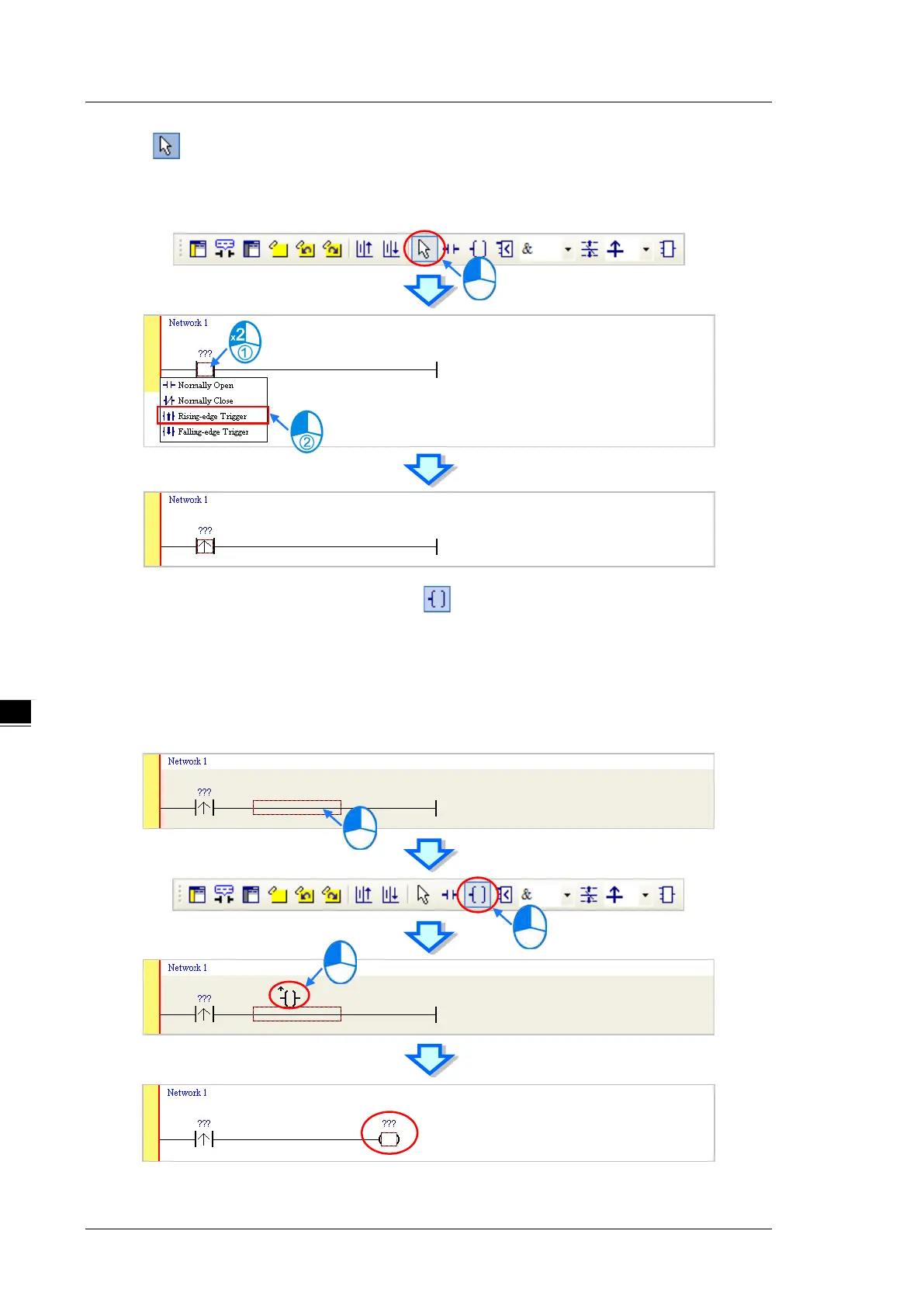

(2) Click on the toolbar, or press Esc on the keyboard. After you double-click the contact, a list appears.
The items on the list are Normally Open, Normally Close, Rising-edge Trigger, and Falling-edge
Trigger. In this example, click Rising-edge Trigger.
(3) Click the line at the right side of the contact, click on the toolbar, and then move the mouse cursor to
the red frame. The mouse cursor changes to a coil when the mouse cursor is above or under the red frame.
Decide where to insert the coil.
In this example, you do not need to decide where to insert the coil. Place the mouse cursor near the red
frame and click the left mouse button.
