Delta E Series - ATS Wire Connections

44
4.8.10 ATS wire connections
INFORMATION!
INFORMATIONS!
Before the ATS connection need to install a secondary AC panel for
backed-up loads. Rewire the backed-up loads through this panel.
Avant de procéder à une connexion ATS, vous devez installer un
panneau CA secondaire pour garantir des charges de réserve
Recâbler les charges de réserve à travers ce panneau.

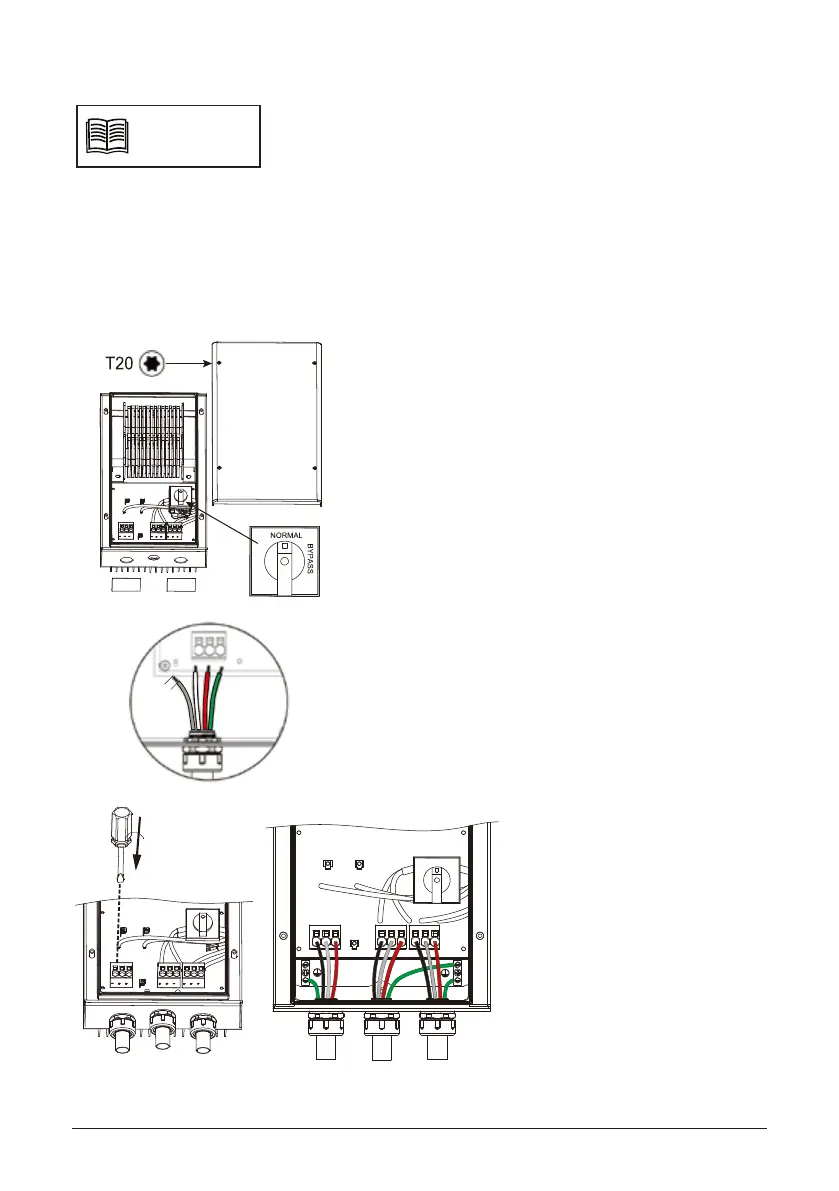

1. Open the cover
– Unscrew the 4 screws on cover with a
Torx20
– Recommended screw torque:
18 in-lbs (2 Nm).
2. Remove the hole tapes for installing conduit.
– AC bypass switch is on [NORMAL] status,
do not change status when mounting and
wiring.
– 3x 3/4” conduit holes are provided.
3. AC Wires connection: Install 3/4“ (1.78 cm)
conduit into the conduit hole.
4. Route AC wires through the conduit and strip
the wire end to 3/4“ (1.78 cm).
0.7”
(1.78 cm)
Grid
L1 N L2
Load
L1 N L2
Inverter
L1 N L2
5. Use a 3/16” (5 mm) at blade
screwdriver to push the
spring of each terminal and
connect the wires (L1, N, L2)
to the connectors according to
the marks.
