3.3 Mounting the inverter
Please make sure the inverter is installed vertically, especially if it is to be installed outdoors.

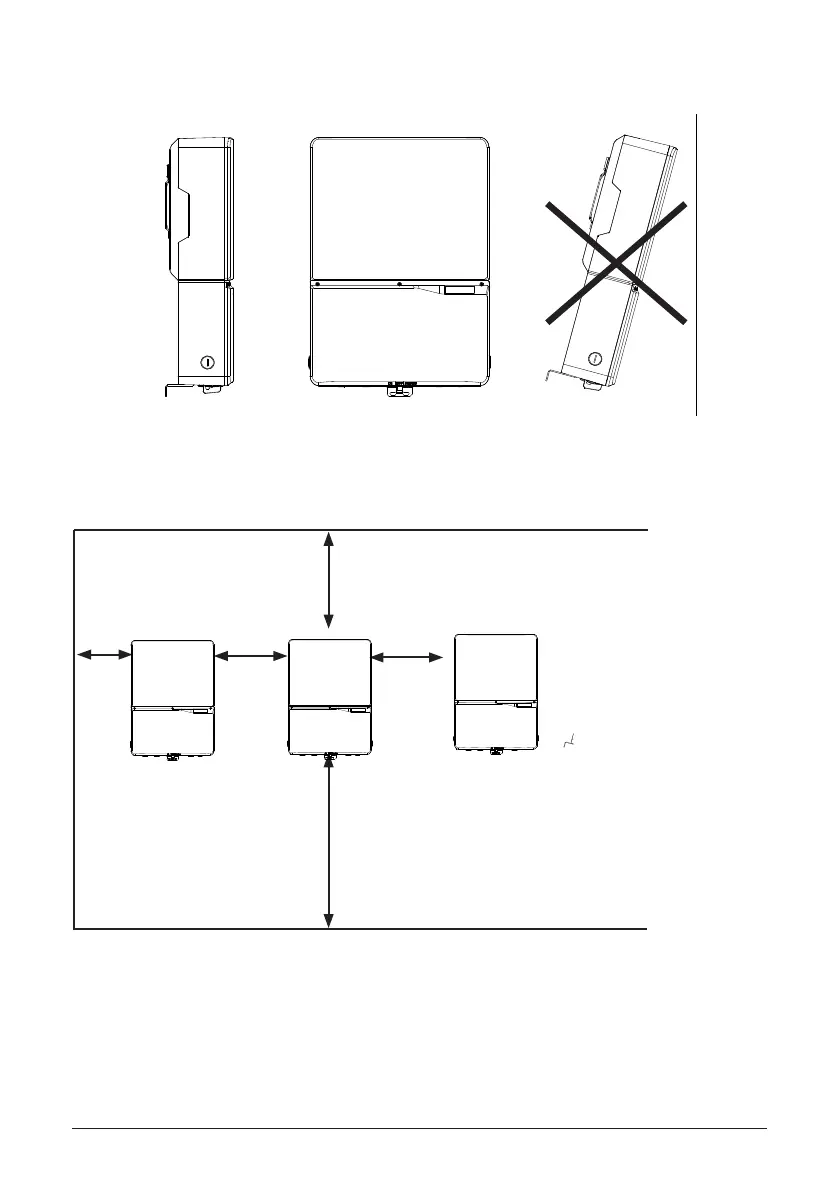

Figure 11: Inverter clearances
Inverter should be mounted
at least 39“ (100 cm) from
the oor or ground surface.
>6"
(15.2 cm)
>6"
(15.2 cm)
>4"
(10 cm)
>39"
(100 cm)
>20"
(50.8 cm)
Inverter should be at least
20“ (50.8 cm) from any
ceiling surface
The National Electric Code may require signicant larger working clearances (see NEC Section
110.26)
