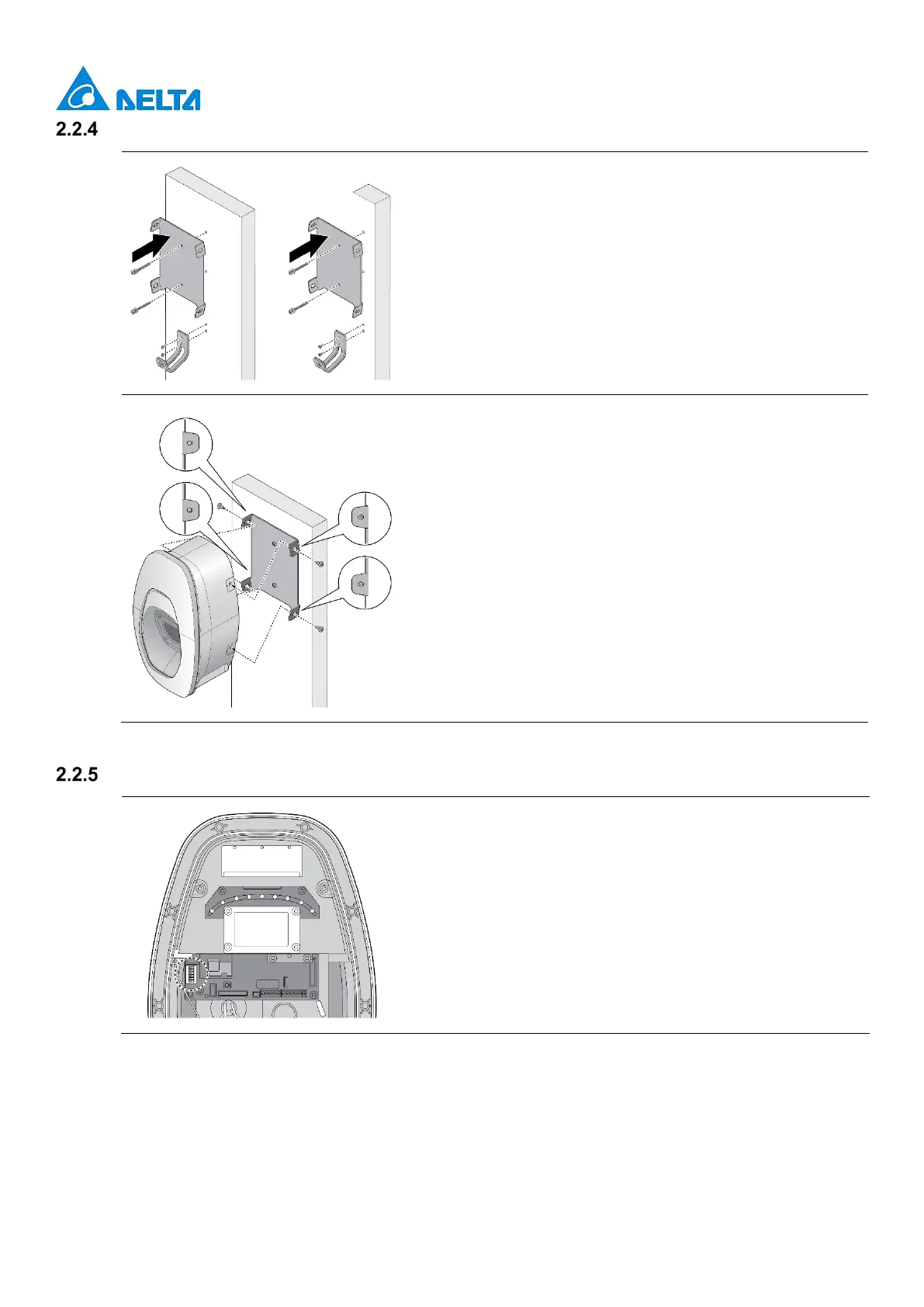

Secure mounting bracket
1. The cable holder is optional and depicted in the figure for
d
emonstration purposes. The following are
recommended bolt types:
 Masonry walls: 1/4" expansion bolts.
Torque: 8.8 N·m (78 lb·in)

Finished walls supported by wood studs: #8 wood
screws of 2" or above screw length.
Torque: 3 N·m (26 lb·in)
2. Align the EVSE with the screw holes on the mounting
bracket.
3. Secure the EVSE
on the mounting bracket with the
supplied Torx T30 screws.
Torque: 1.5 N·m (13 lb·in)
Configure dip switches
Configure the dip switches with following steps
